Transmission Position Sensor/Switch: Service and Repair

TRANSAXLE RANGE SWITCH REPLACEMENT

REMOVAL

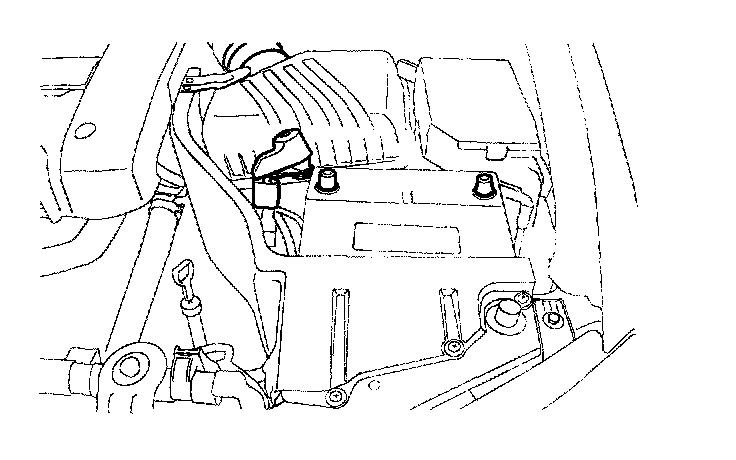

1. Remove the battery terminal.

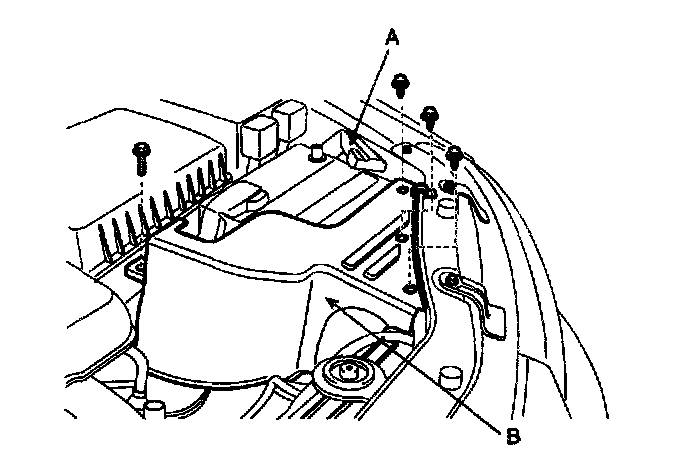

2. Remove the heat shield(B) (Bolt: 1EA, Retainer: 3EA).

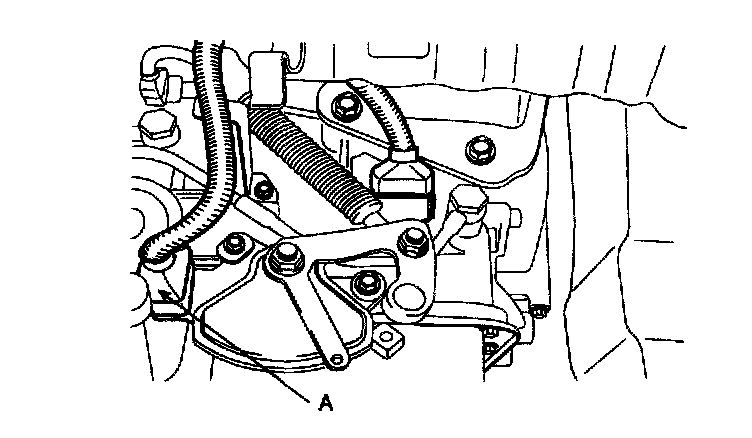

3. Remove the transaxle range switch connector(A).

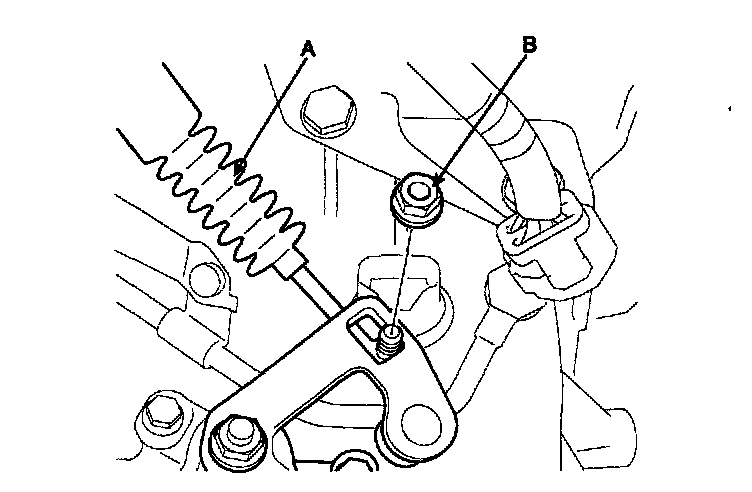

4. Remove the control cable to transaxle range switch(A) mounting nut(B).

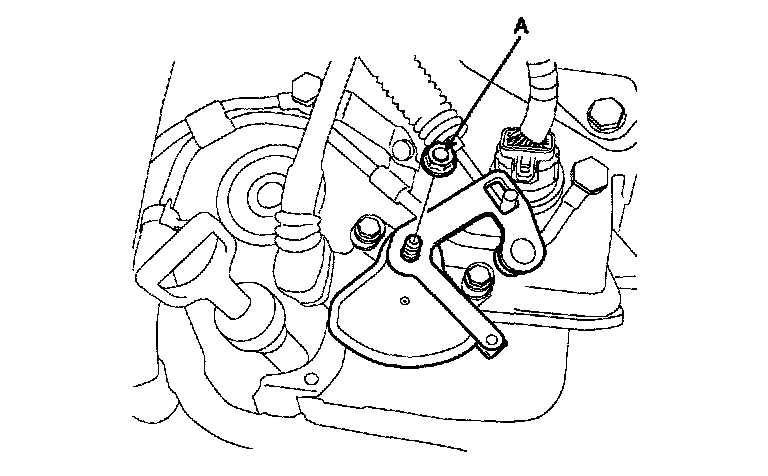

5. Remove the transaxle range switch manual lever mounting nut(A).

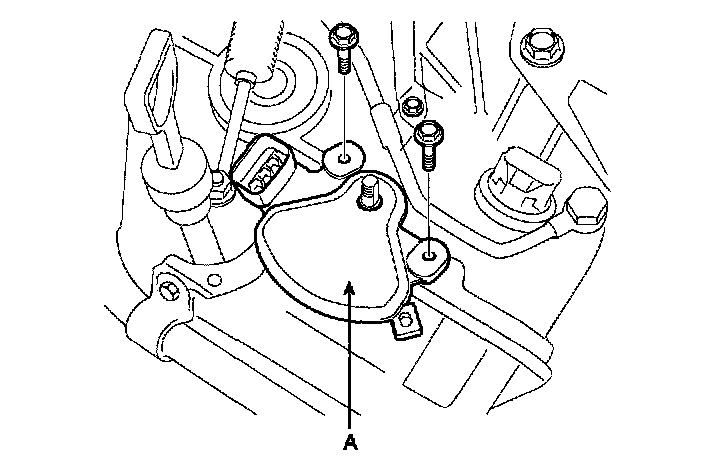

6. Remove the transaxle range switch(A).

INSTALLATION
Refer to Transaxle range switch and control cable adjustment.
