Ignition Switch: Testing and Inspection

Ignition Switch




INSPECTION

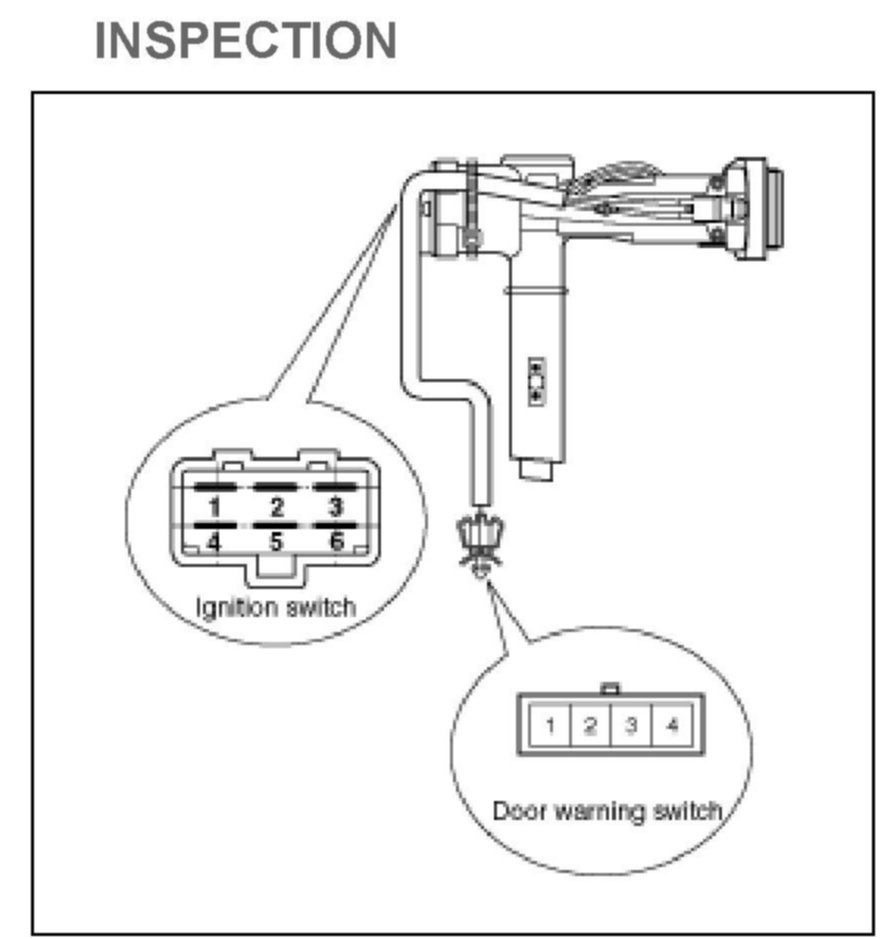

1. Disconnect the ignition switch connector and door warning switch connector from under the steering column.

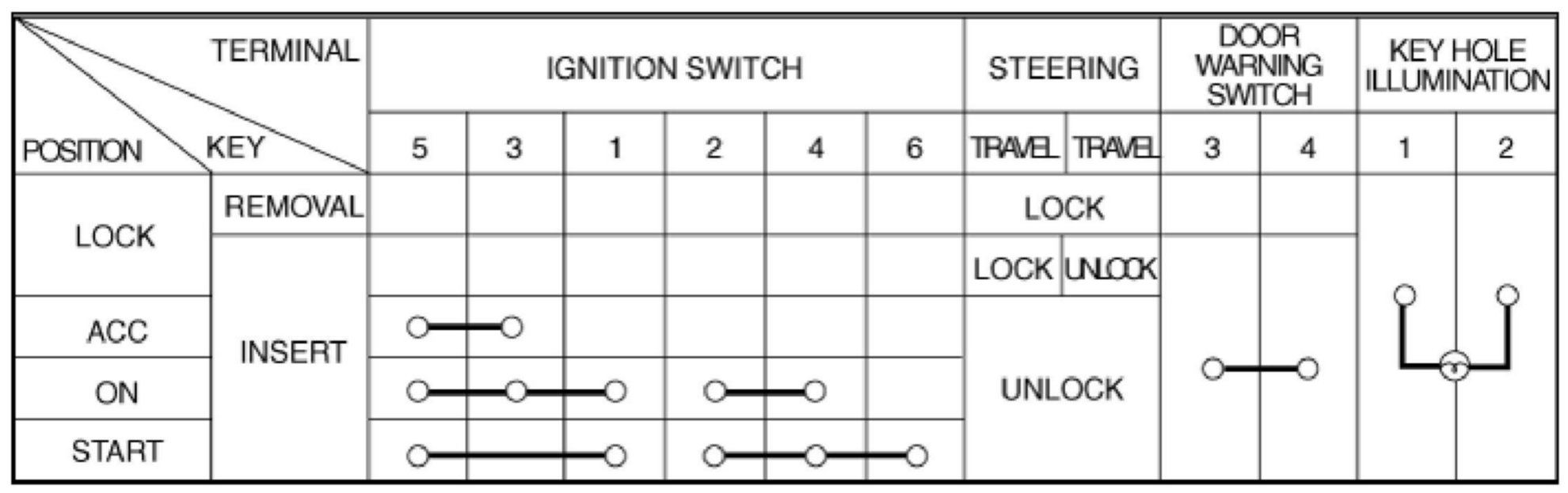

2. Check for continuity between the terminals.




3. If continuity is not specified, replace the switch.
