Long Driving Test Mode

  1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
  2. Select the DTC function of Hi-Scan (Pro).
  3. Start the engine and let the engine at idle for 35 seconds or more (* A).
  4. Drive the vehicle at 60 mph (55 ~ 65 mph) for 10 minutes or more and decrease the vehicle speed until it stops (* B).
  5. Let the engine at idle for 60 seconds or more (* C).

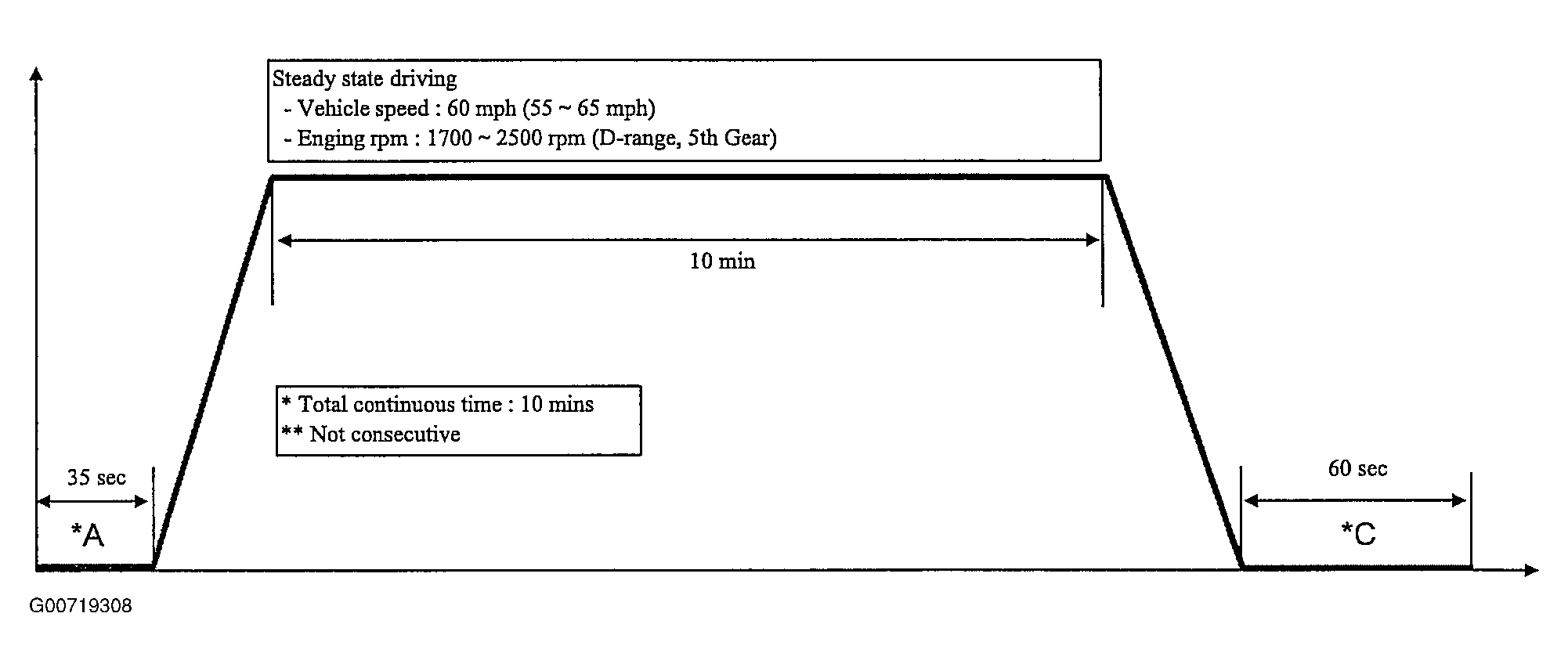

Fig 1: Long Driving Test Mode Graph
G00719308Courtesy of KIA MOTORS AMERICA, INC.

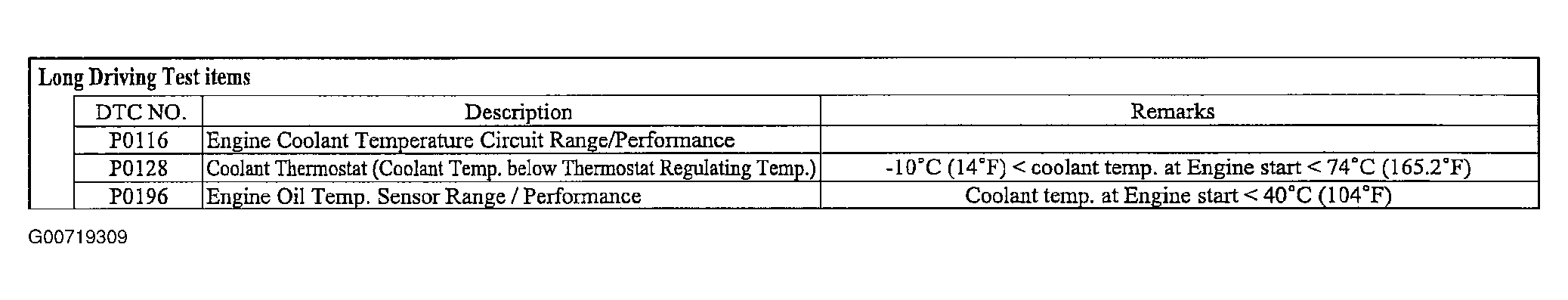

Fig 2: Long Driving Test Mode Chart
G00719309Courtesy of KIA MOTORS AMERICA, INC.
