Customer Data Stream

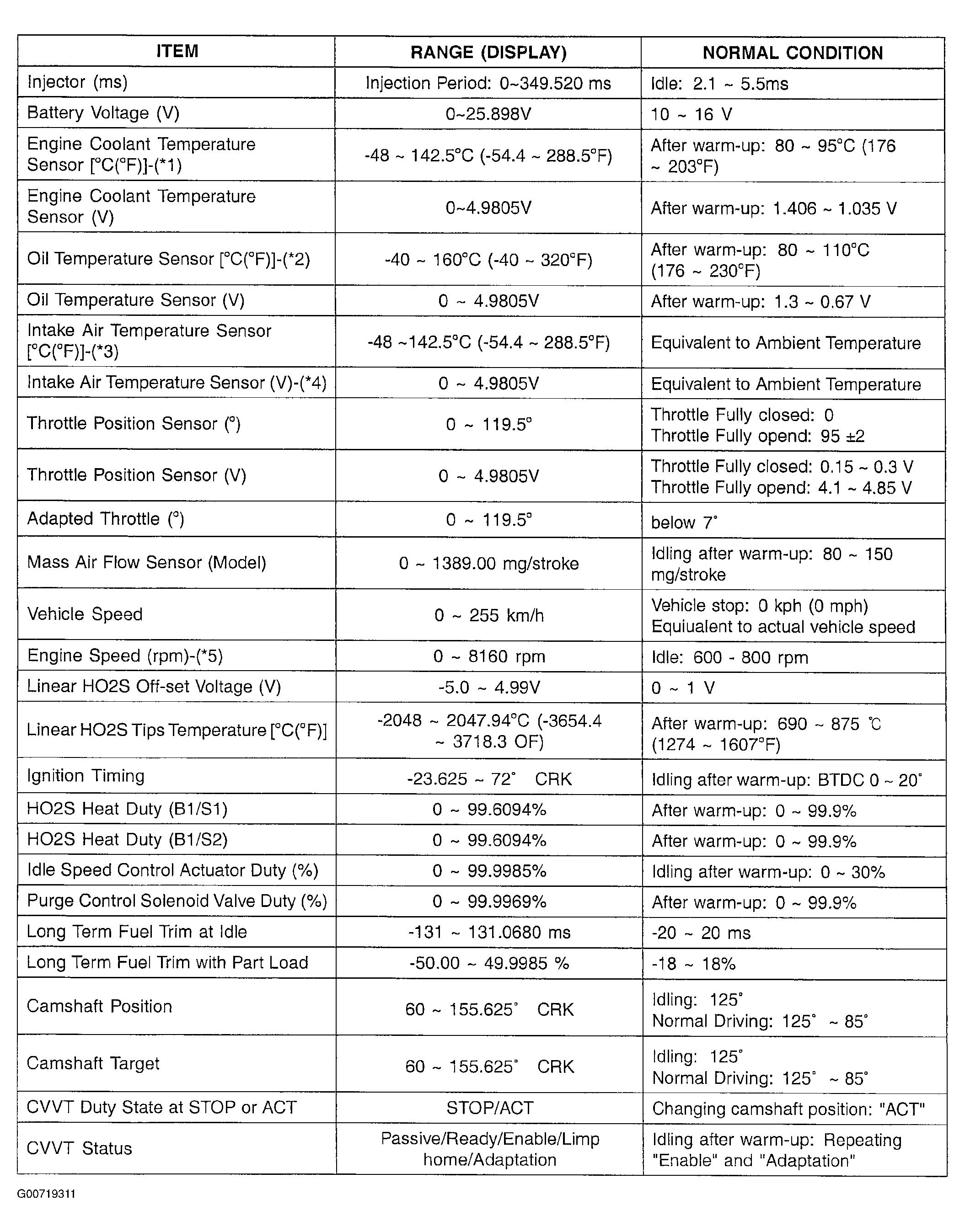

Fig 1: Customer Data Stream Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

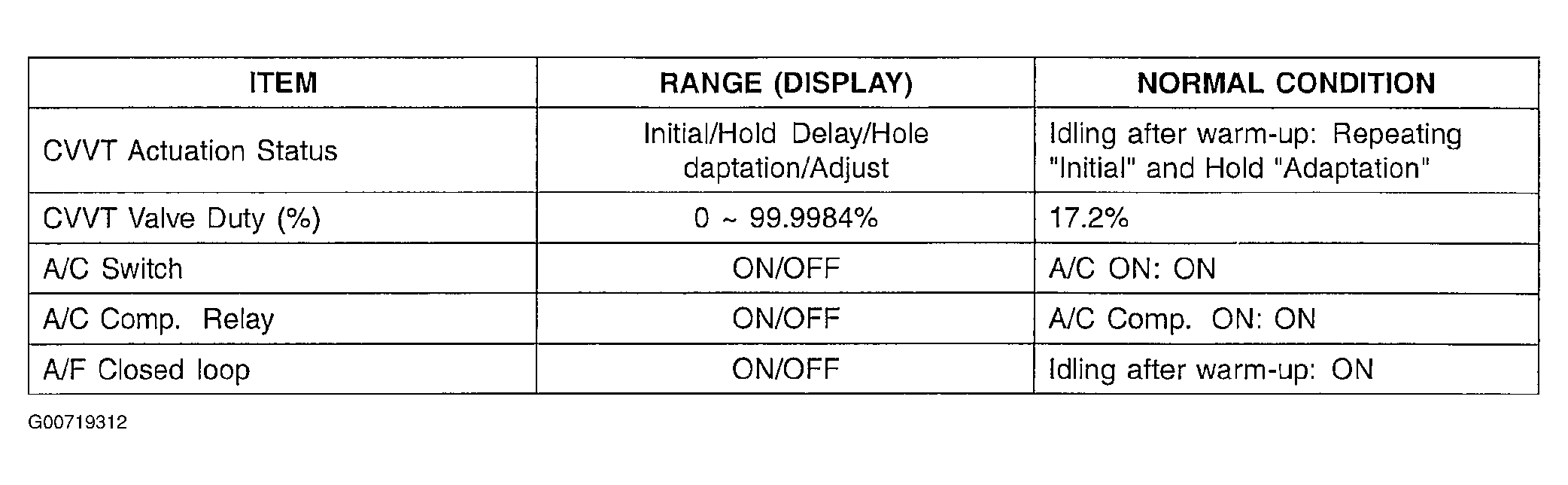

Fig 2: Customer Data Stream Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

CUSTOMER DATA STREAM CHART FOOTNOTES:

1. (^* 1) If the value is lower than -46°C (114.8°F) or higher than 138°C (280.4°F), sensor circuit is open or shorted.
2. (^* 2) If the value is lower than -36°C (-32.8°F) or higher than 154°C (309.2°F), sensor circuit is open or shorted.
3. (^* 3) If the value is lower than -46°C (114.8°F) or higher than 142°C (287.6°F), sensor circuit is open or shorted.
4. (^* 4) If the value is lower than 0.14V or higher than 4.86V, sensor circuit is open or shorted.
5. (^* 5) After warm-up N-range, A/CON OFF
