Basic Troubleshooting Guide

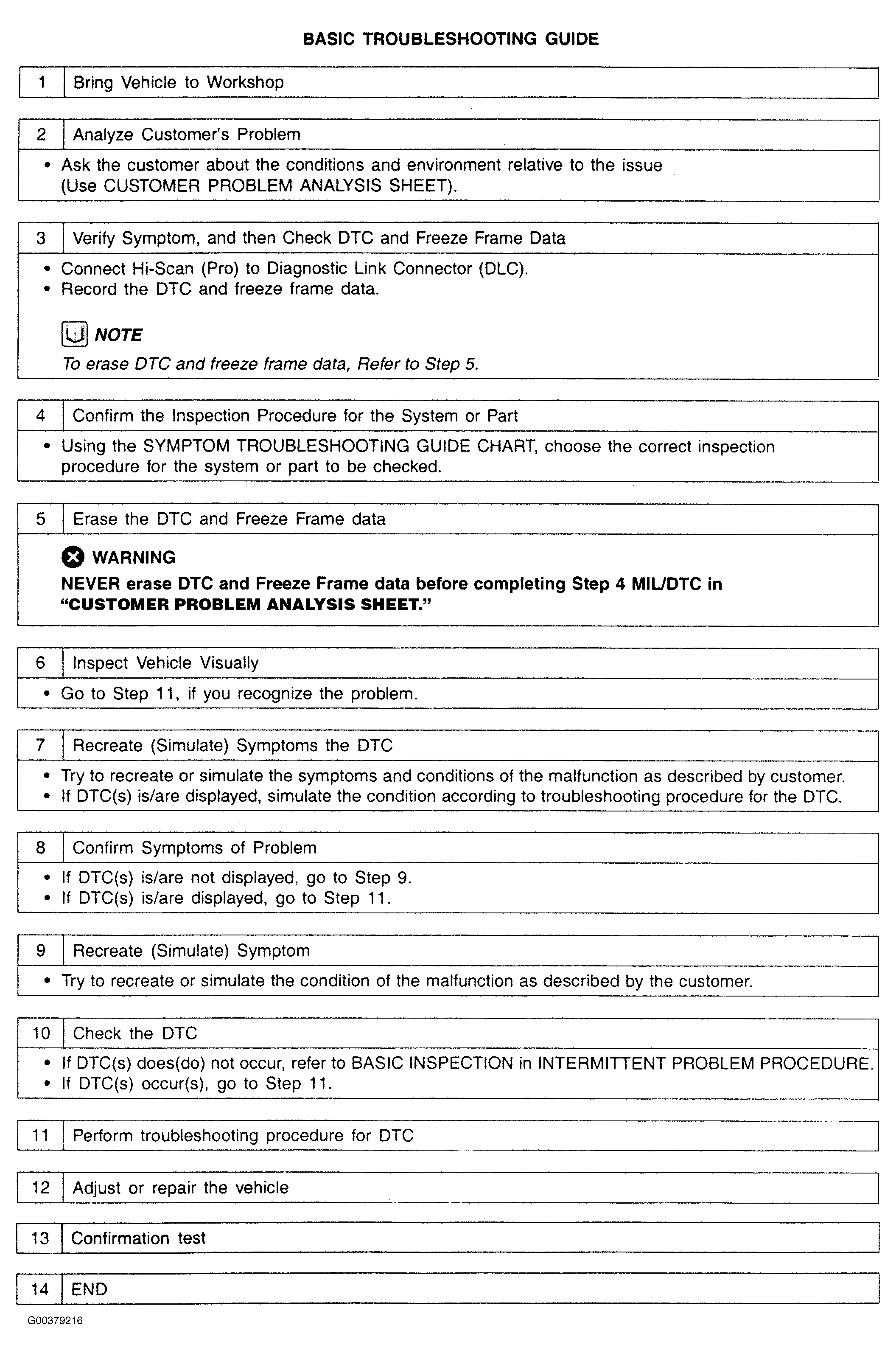

Fig 1: Basic Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
