CVVT Oil Temperature Sensor (OTS)

Type: Thermistor type

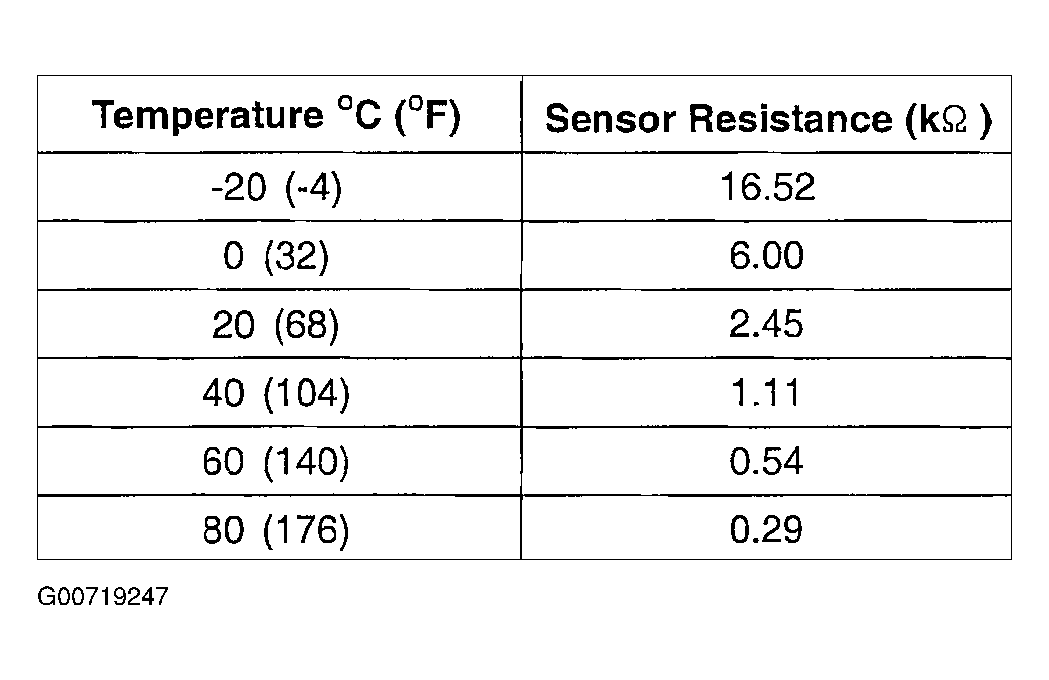

Fig 1: CVVT Oil Temperature Sensor Specifications
G00719247Courtesy of KIA MOTORS AMERICA, INC.
