Heated Oxygen Sensor (Ho2S)

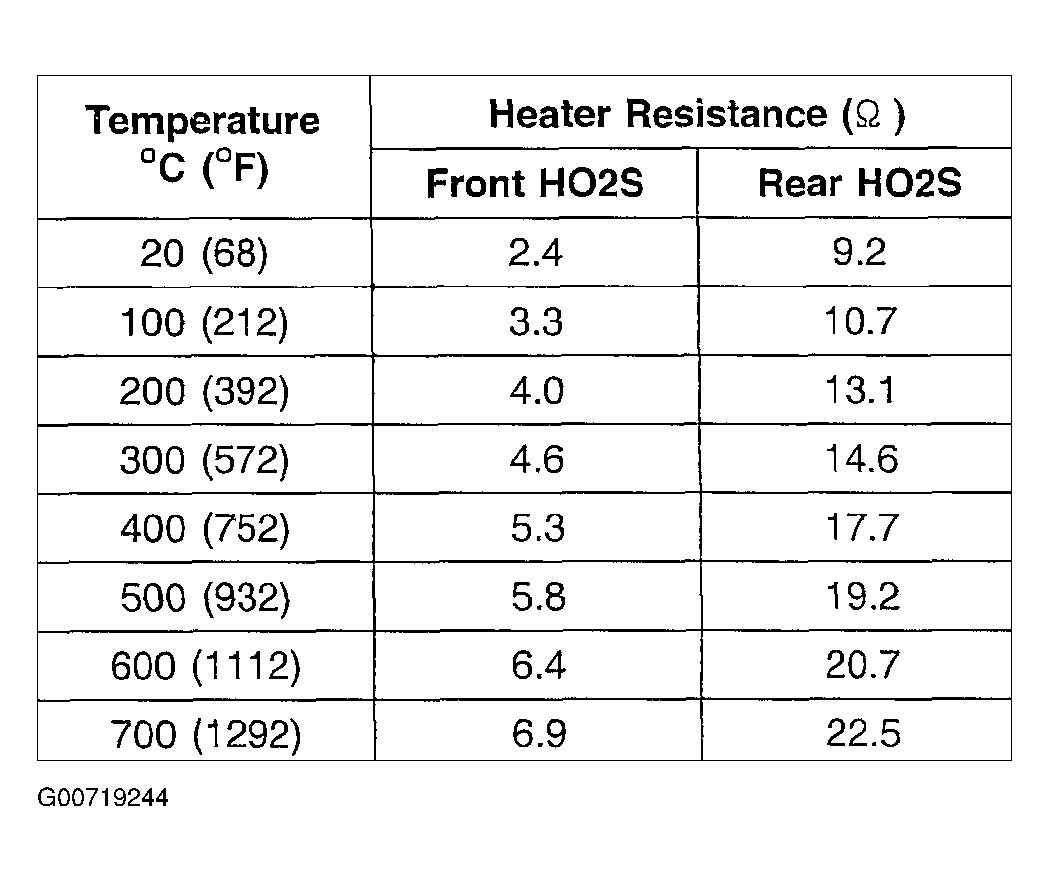

Fig 1: Heated Oxygen Sensor Specifications
G00719244Courtesy of KIA MOTORS AMERICA, INC.
