Intake Air Temperature Sensor (IATS)

Type: Thermistor type (built in MAFS)

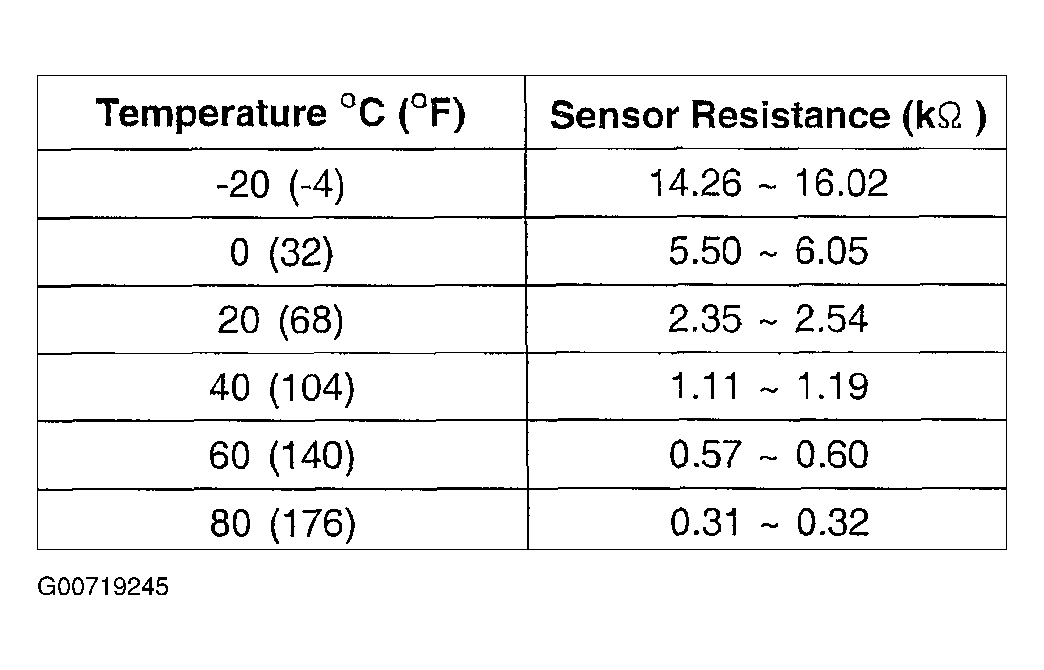

Fig 1: Intake Air Temperature Sensor Specifications
G00719245Courtesy of KIA MOTORS AMERICA, INC.
