Mass Air Flow (MAF) Sensor
Type: Hot film type

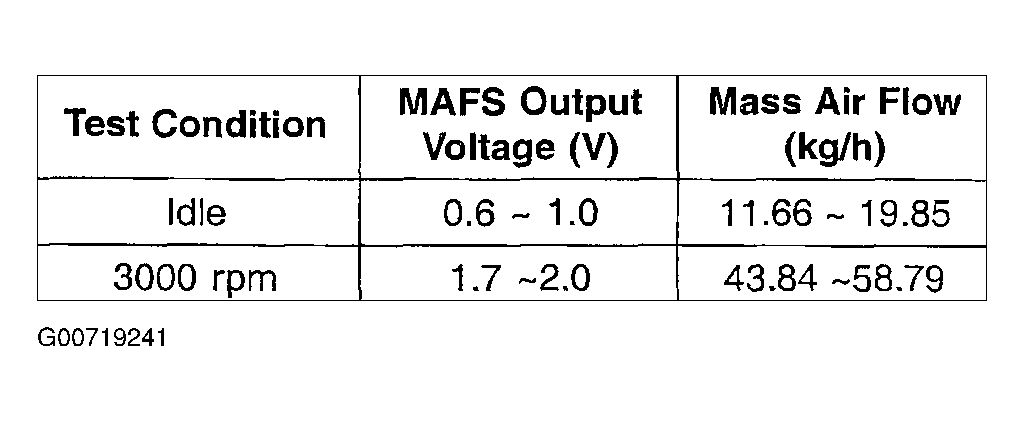

Fig 1: Mass Air Flow Sensor Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
