Purge Control Solenoid Valve (PCSV)

Type: Duty Control type

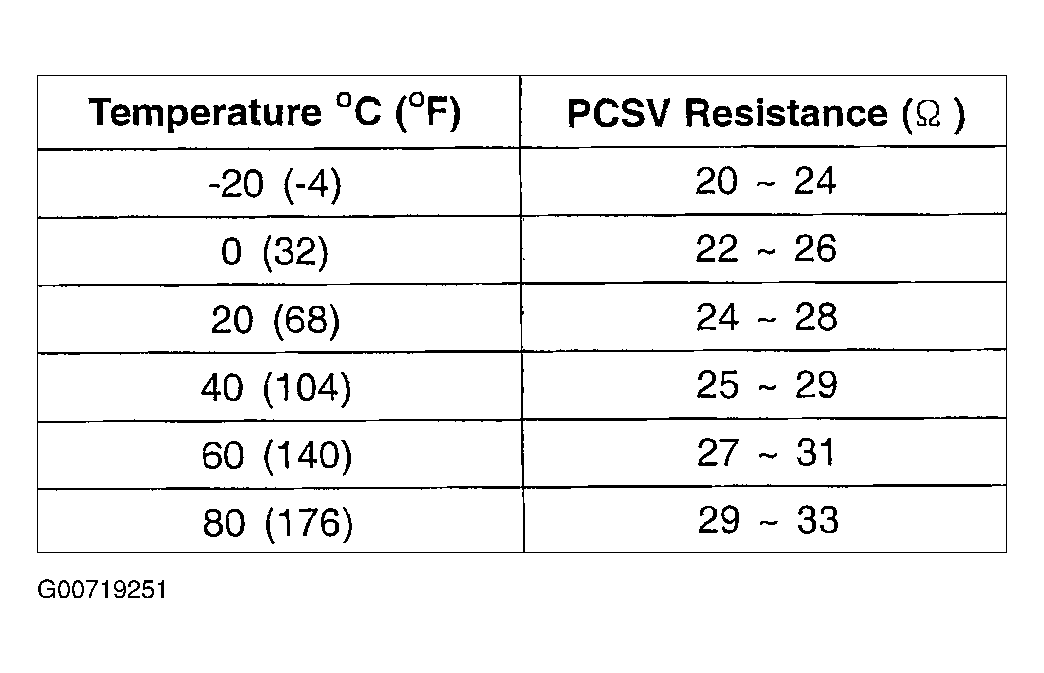

Fig 1: Purge Control Solenoid Valve Specifications
G00719251Courtesy of KIA MOTORS AMERICA, INC.
