Fuel Delivery System

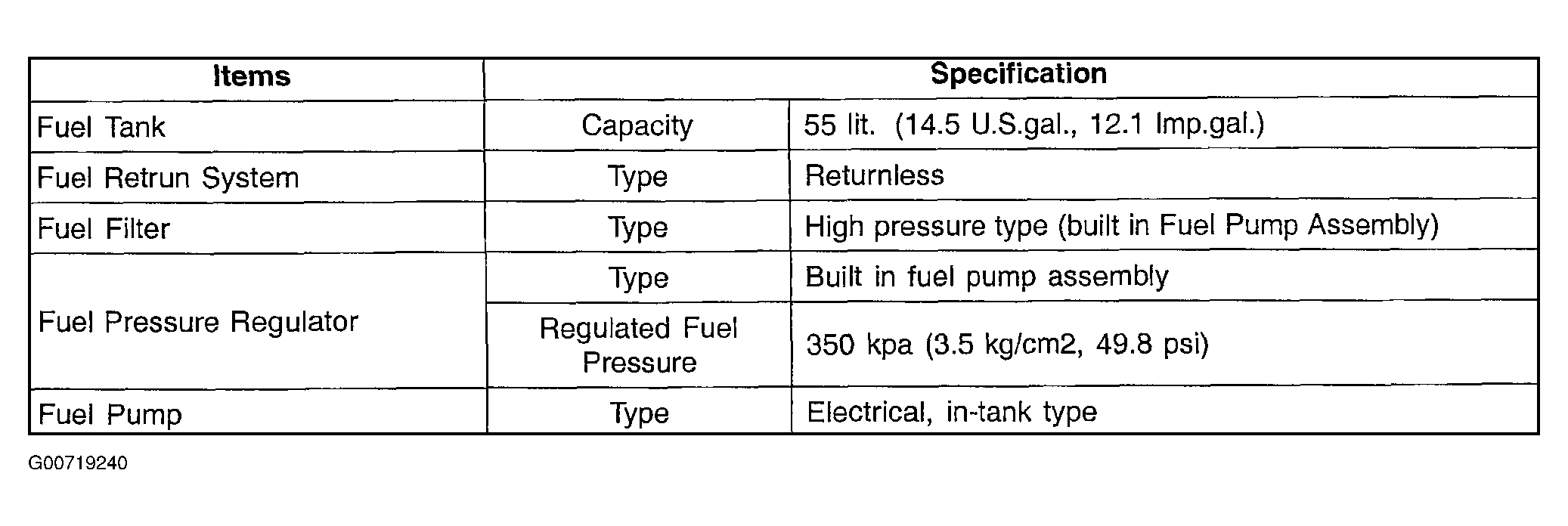

Fig 1: Fuel Delivery System Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
