EVAP Leakage Test

NOTE:
  1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
  2. Select "EVAP LEAKAGE TEST" mode of Hi-Scan (Pro).
  3. Check the same code reoccur.

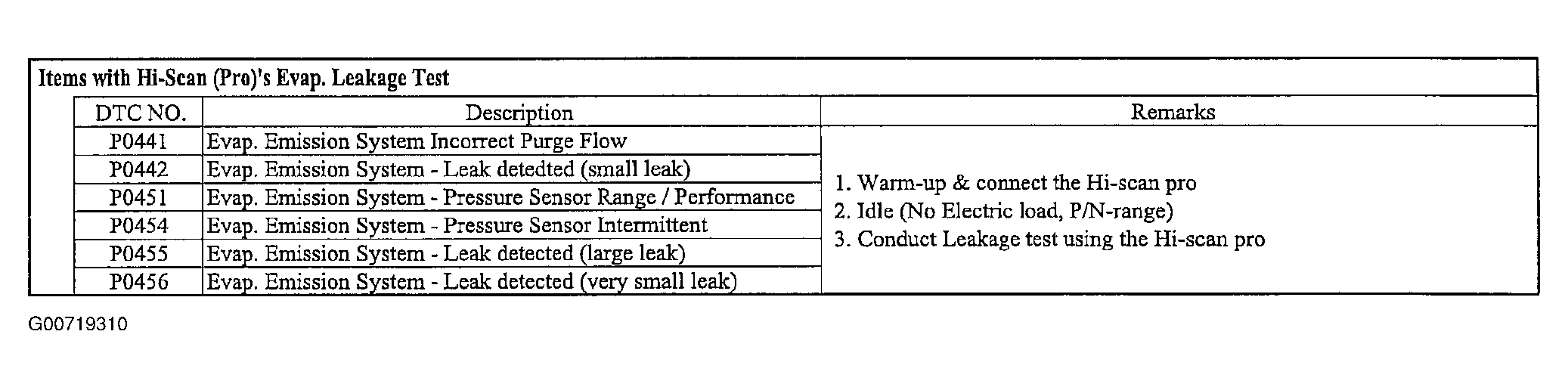

Fig 1: EVAP Leakage Test Chart
G00719310Courtesy of KIA MOTORS AMERICA, INC.
