DTC P0196: Engine Oil Temperature Sensor Circuit Range/Performance: Specification

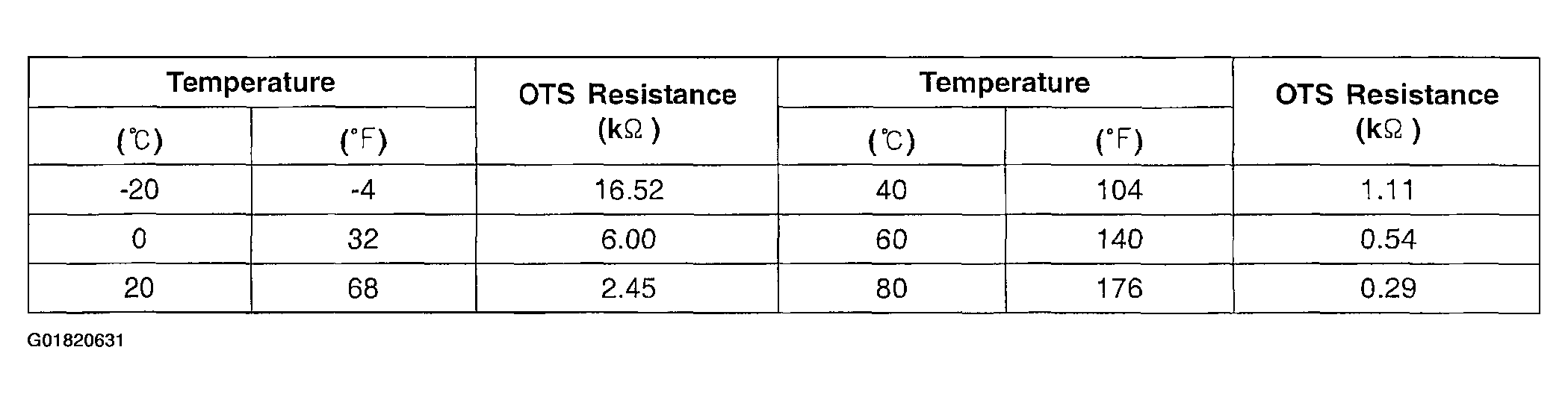

Fig 1: DTC P0196 Specification
G01820631Courtesy of KIA MOTORS AMERICA, INC.
