Engine Control Module

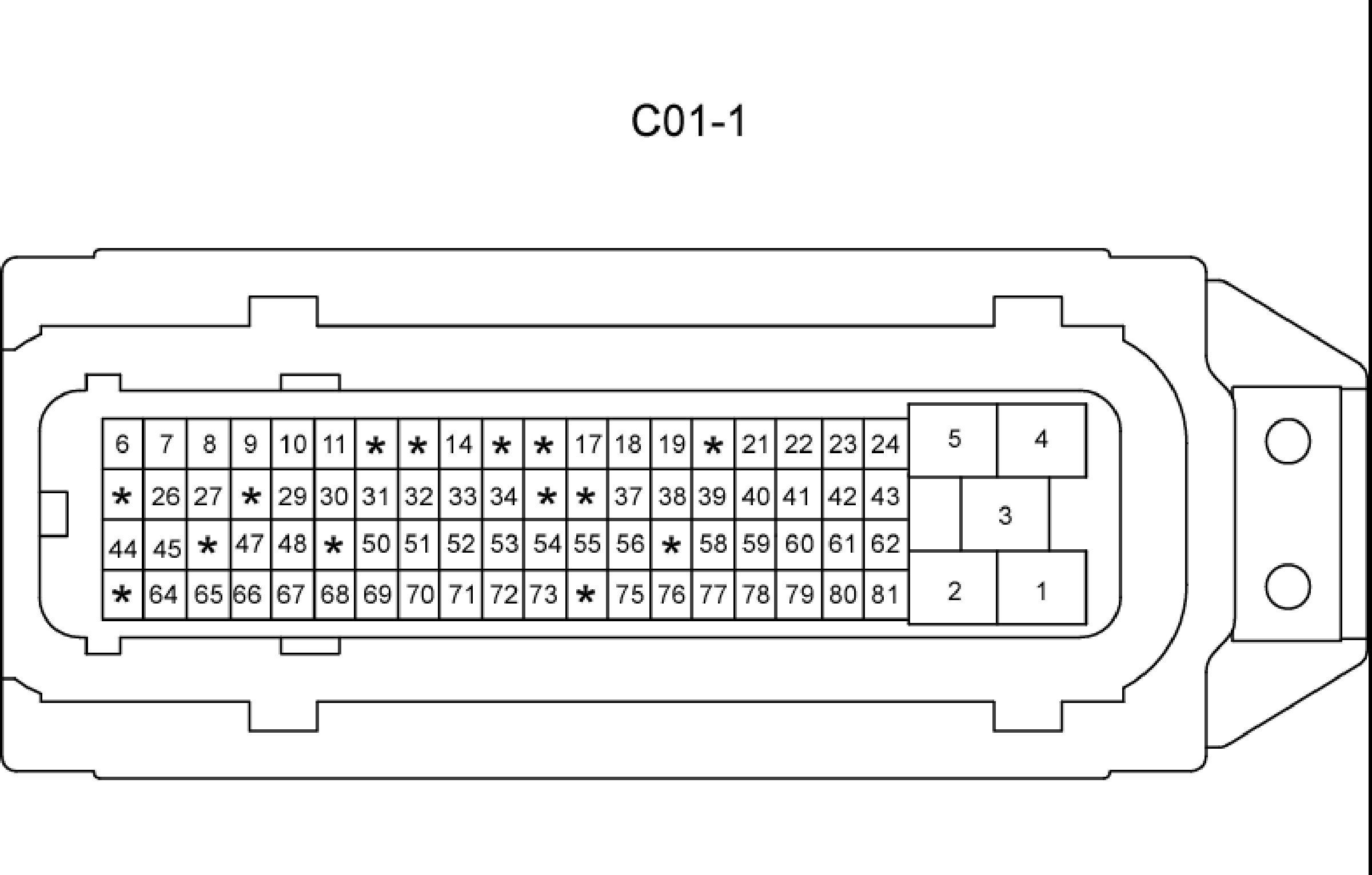

C0-1:
Connector View

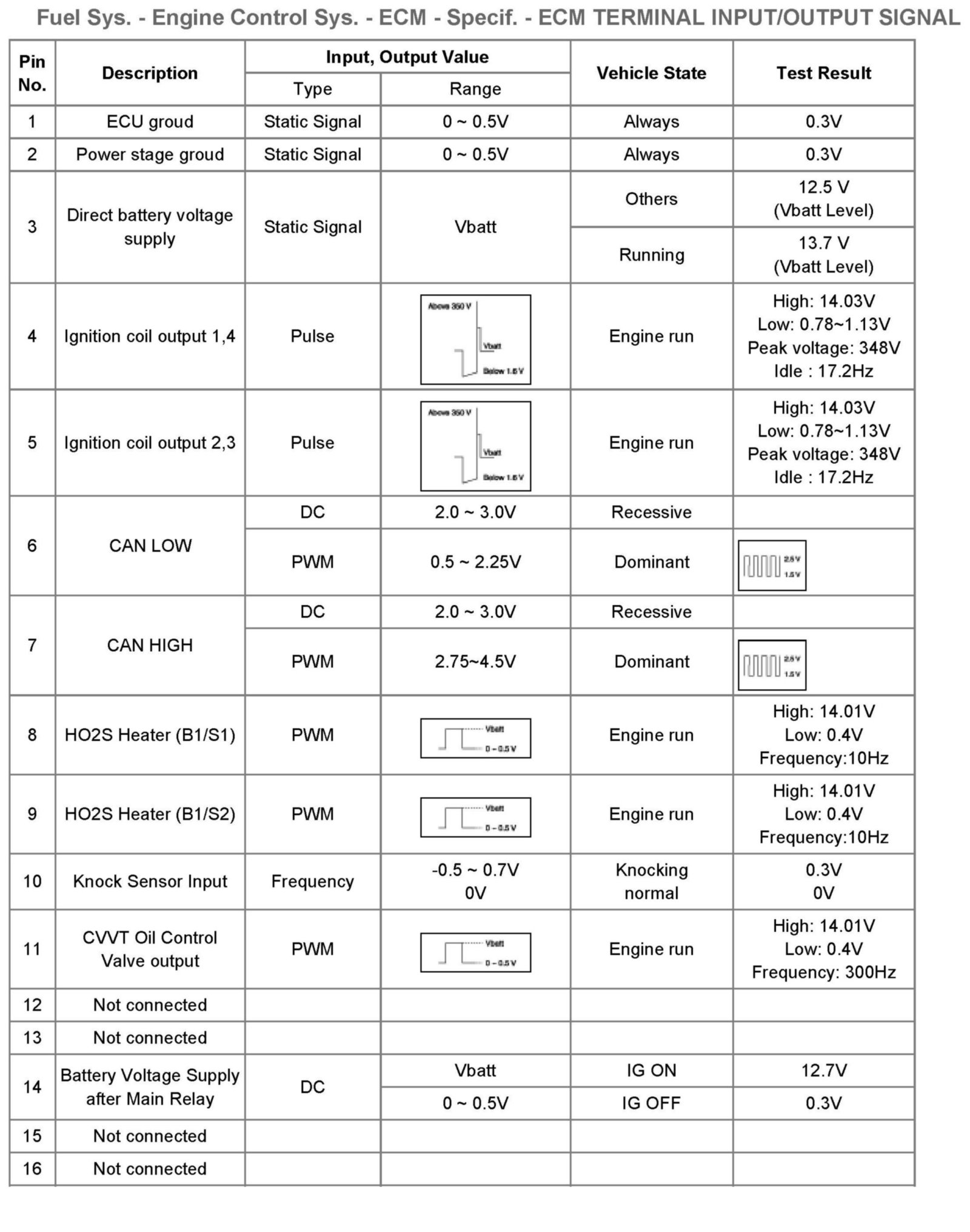

ECM Terminal Input/Output Signal Part 1:

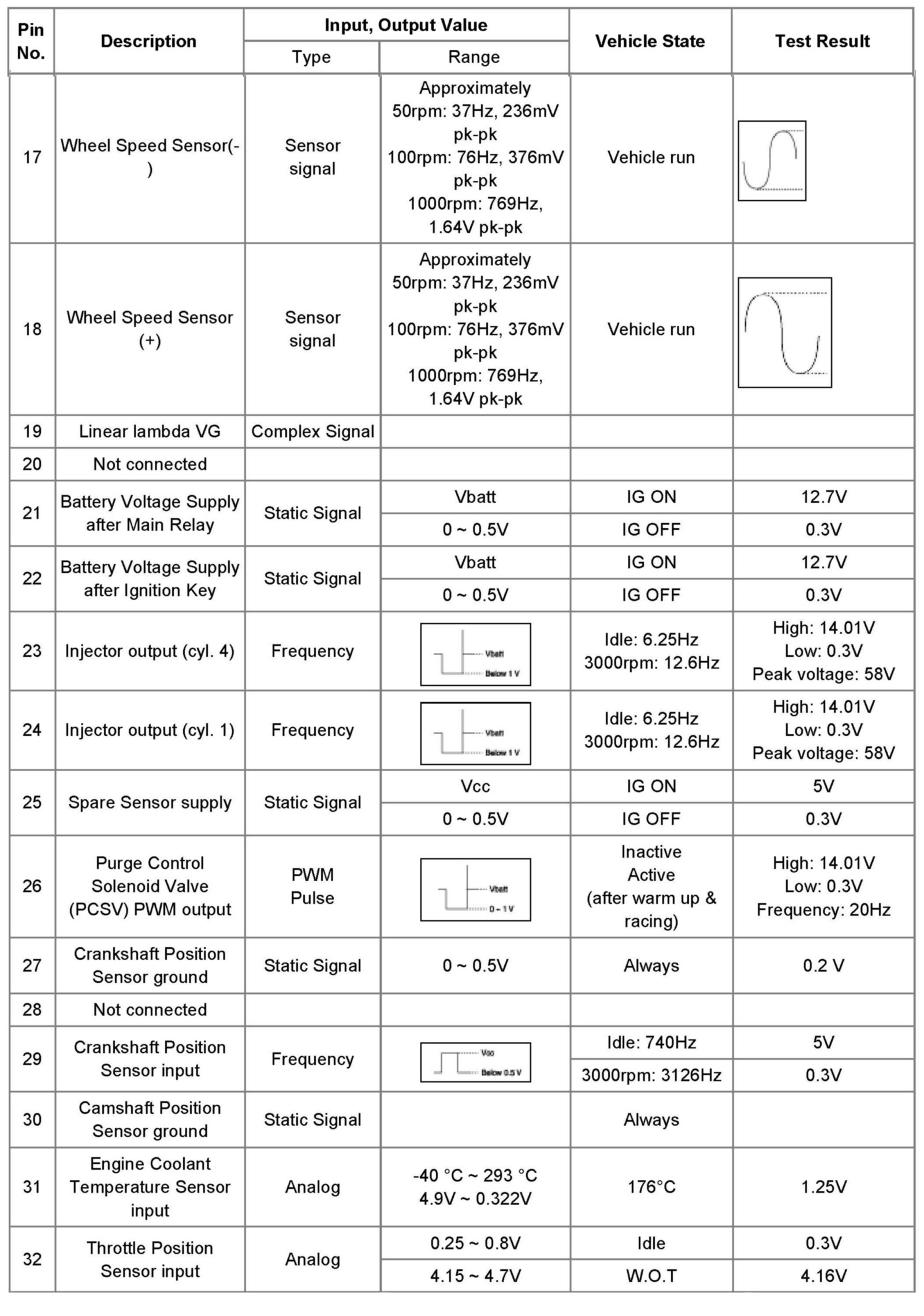

ECM Terminal Input/Output Signal Part 2:

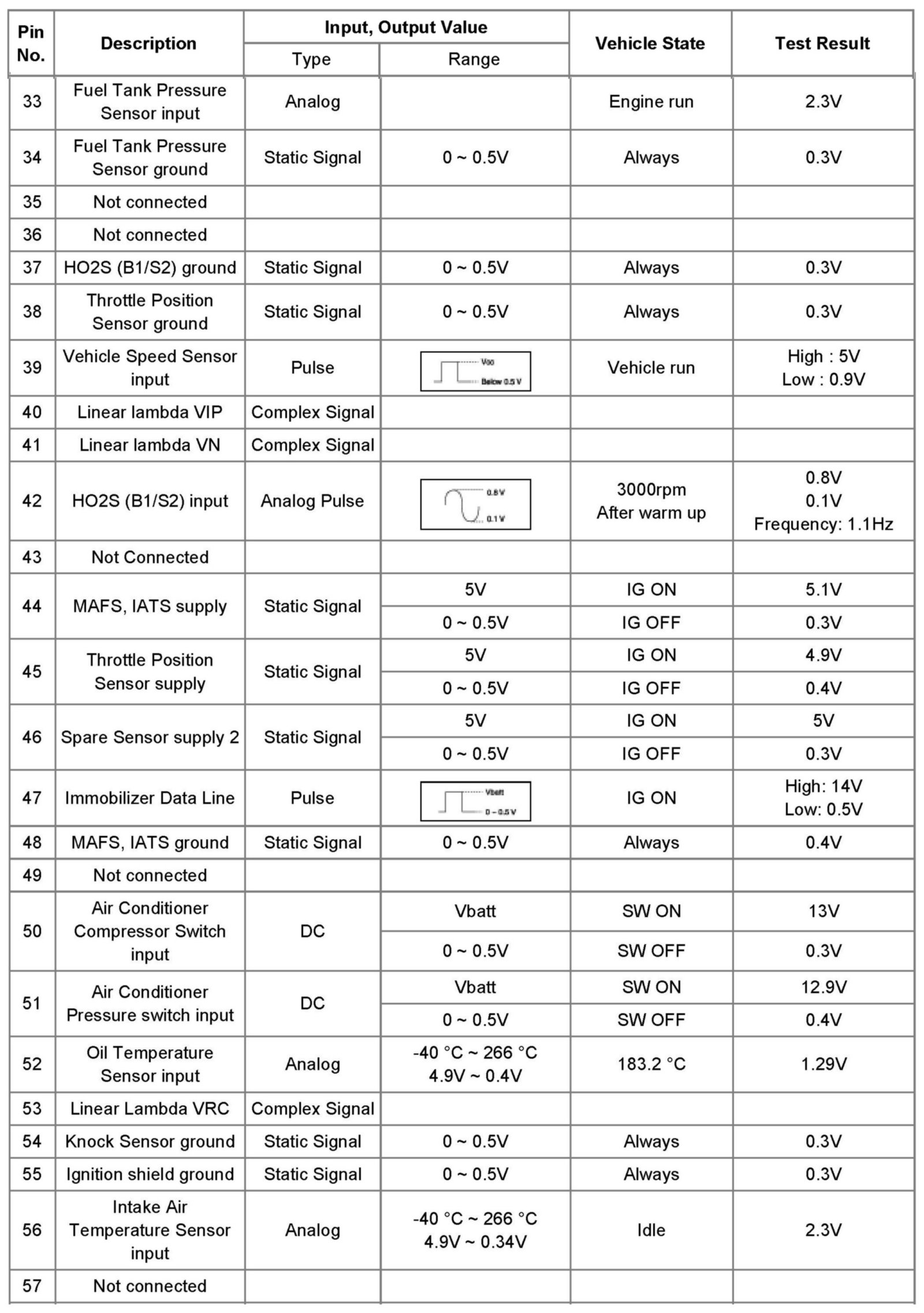

ECM Terminal Input/Output Signal Part 3:
ECM Terminal Input/Output Signal Part 4:

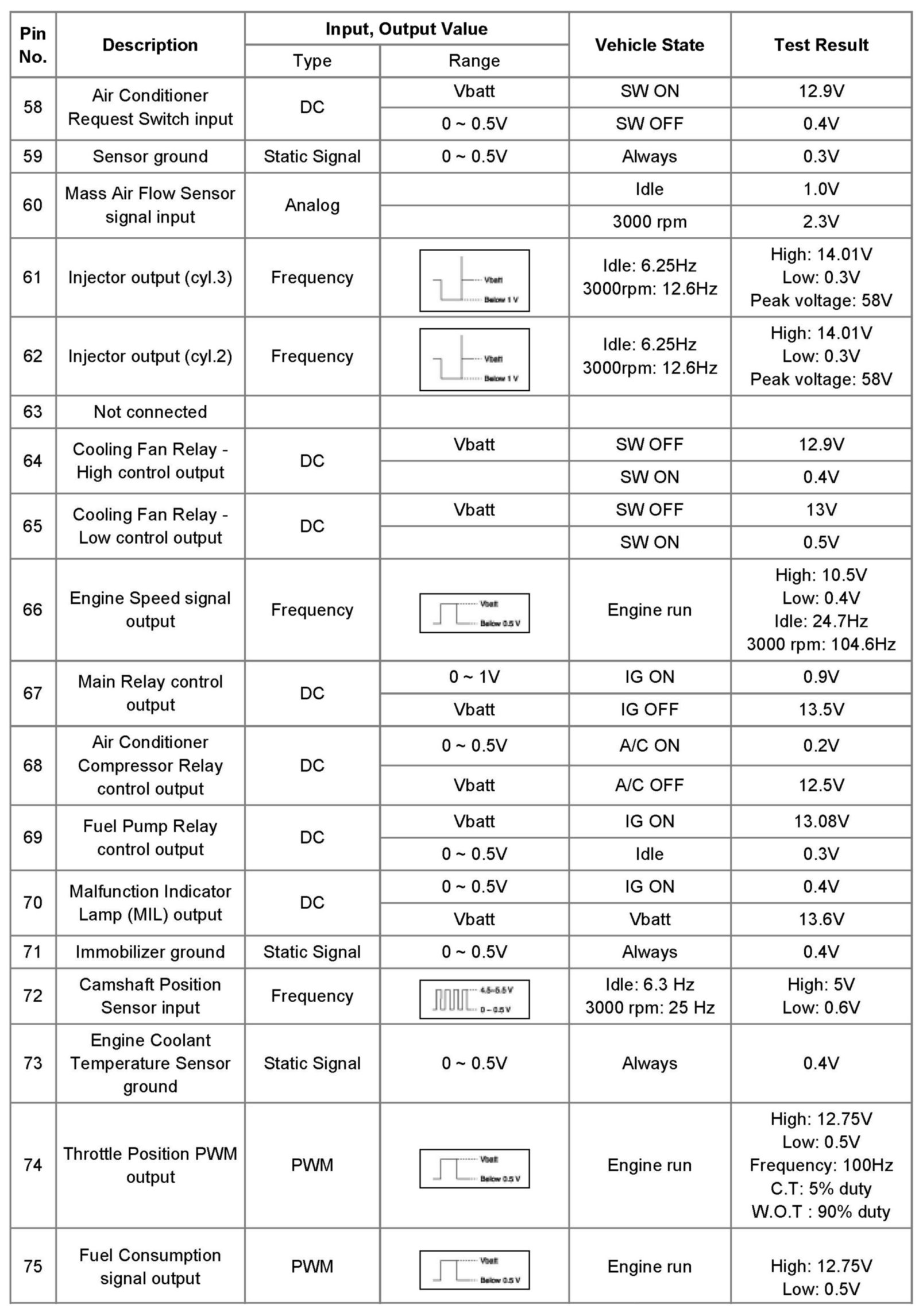

ECM Terminal Input/Output Signal Part 5:

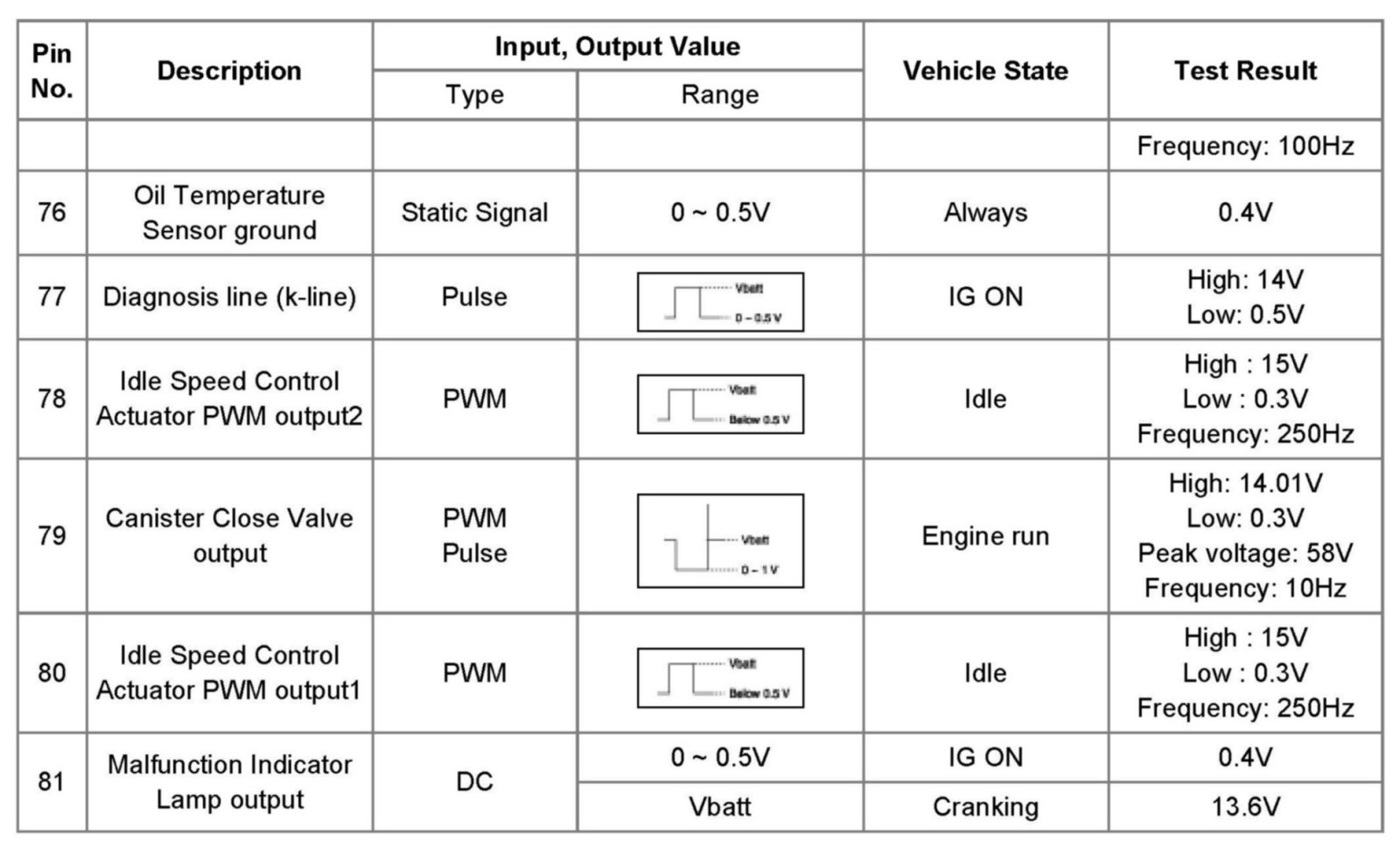

ECM Terminal Input/Output Signal
