Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE

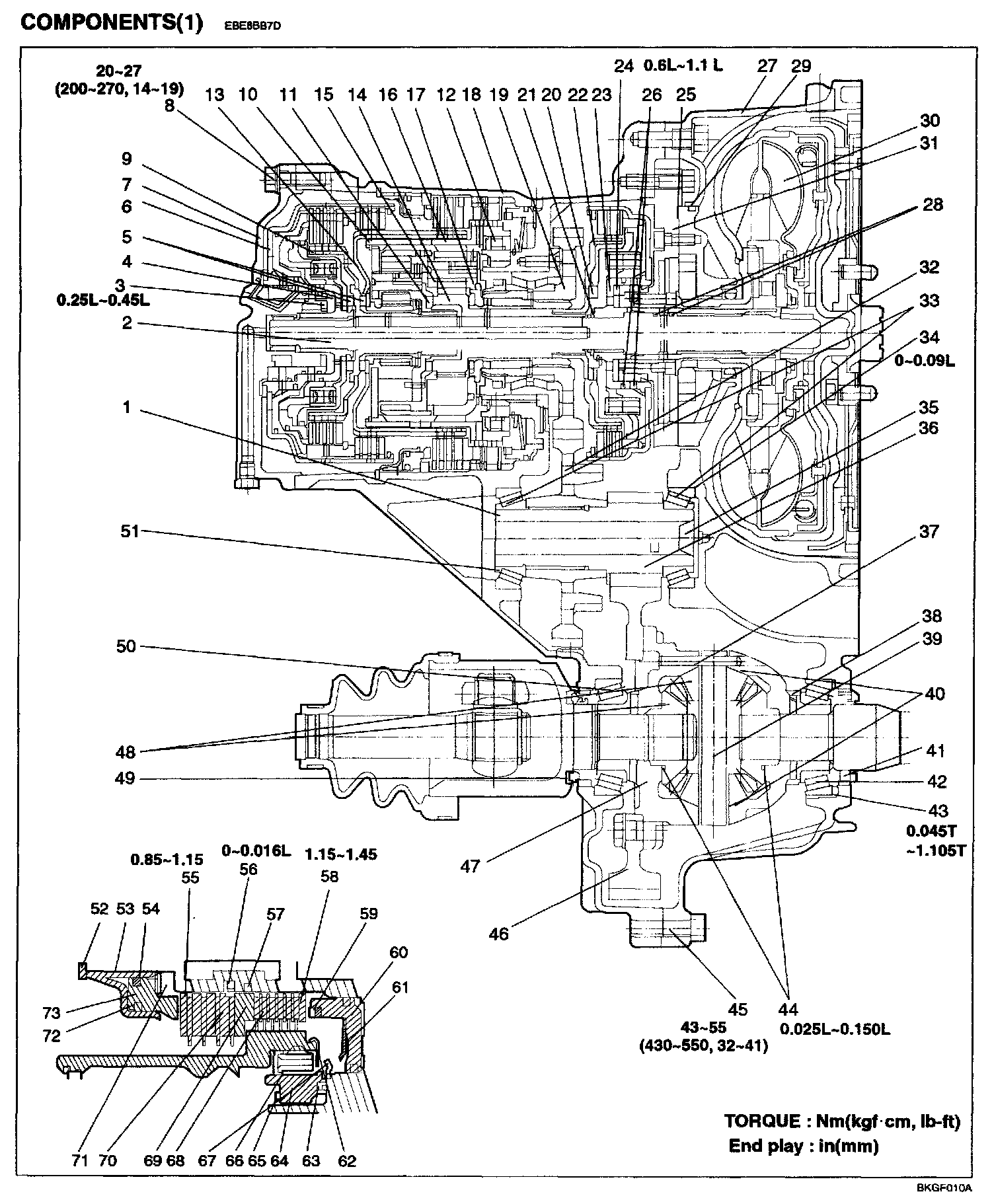

Components(1) (Part 1):

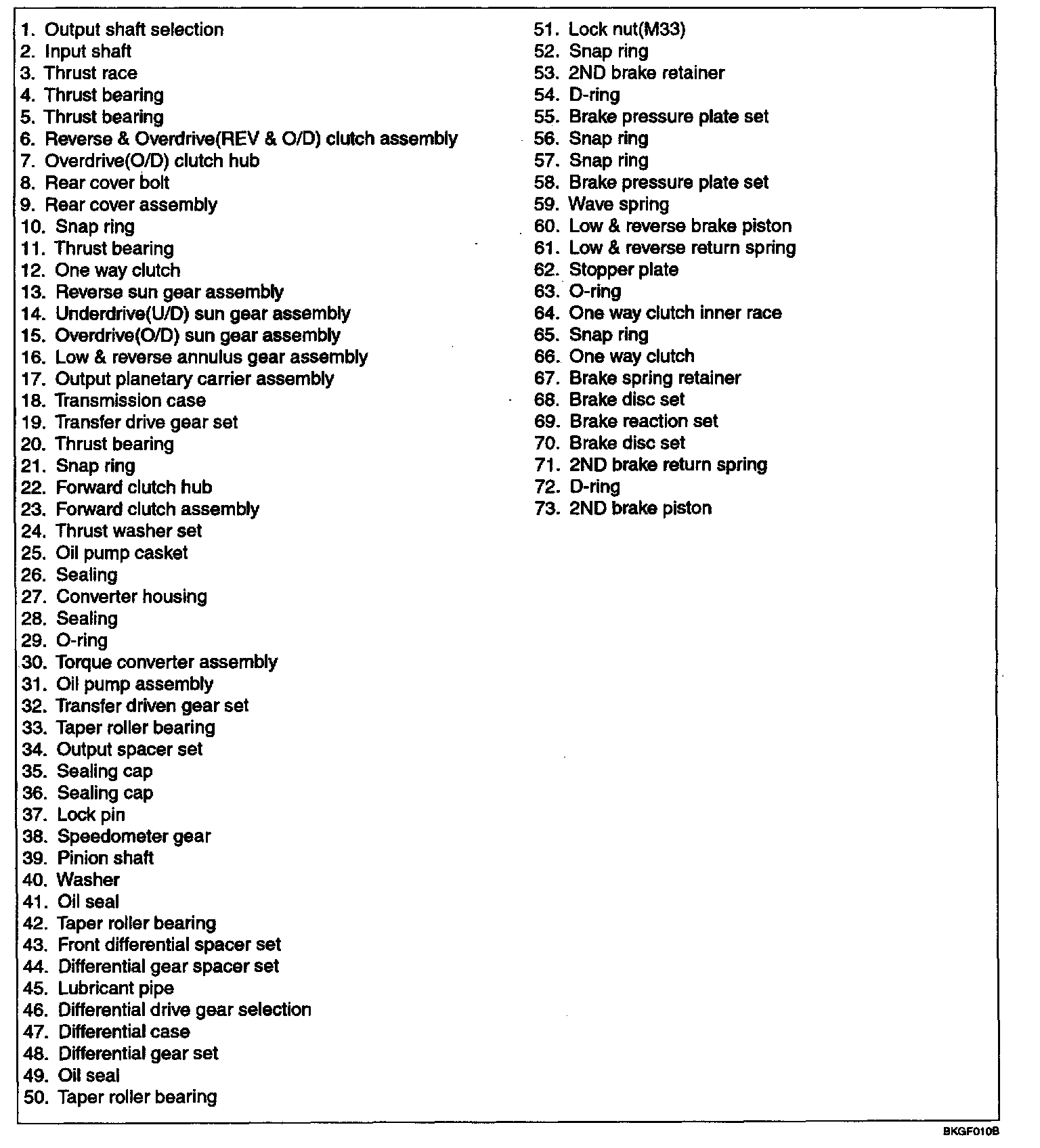

Components(1) (Part 2):

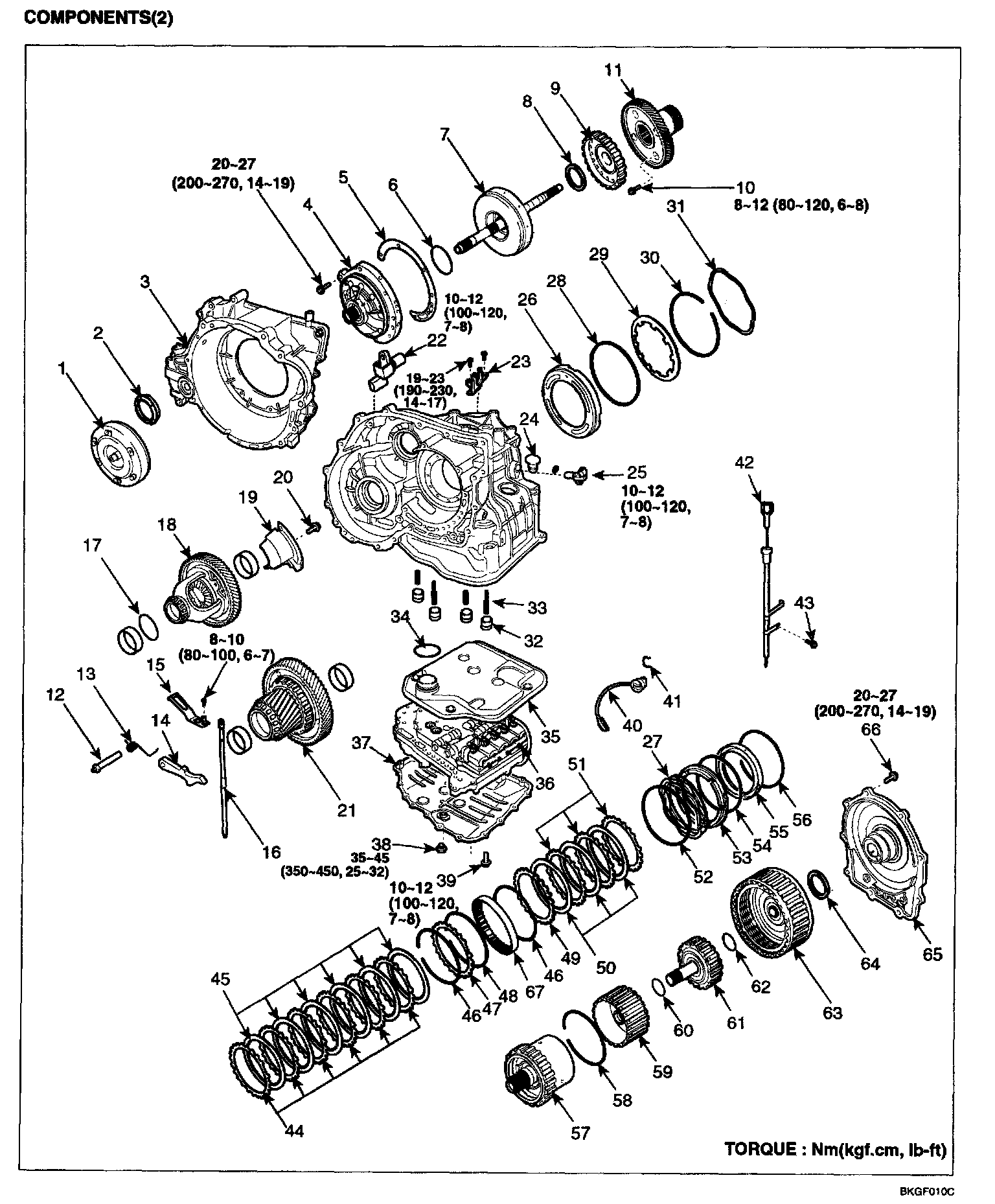

Components(2) (Part 1):

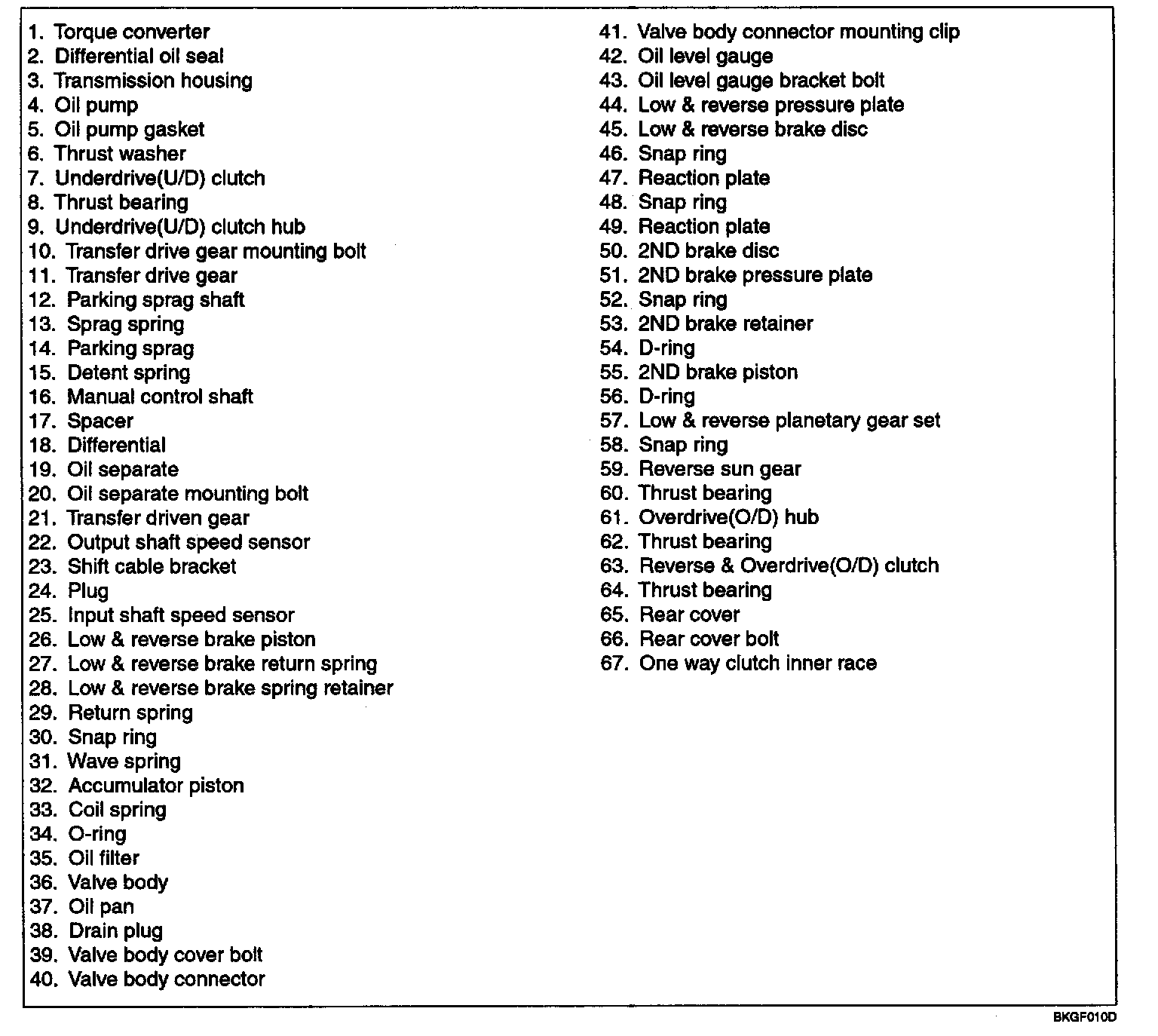

Components(2) (Part 2):
