Gasoline Engine Control System: Components

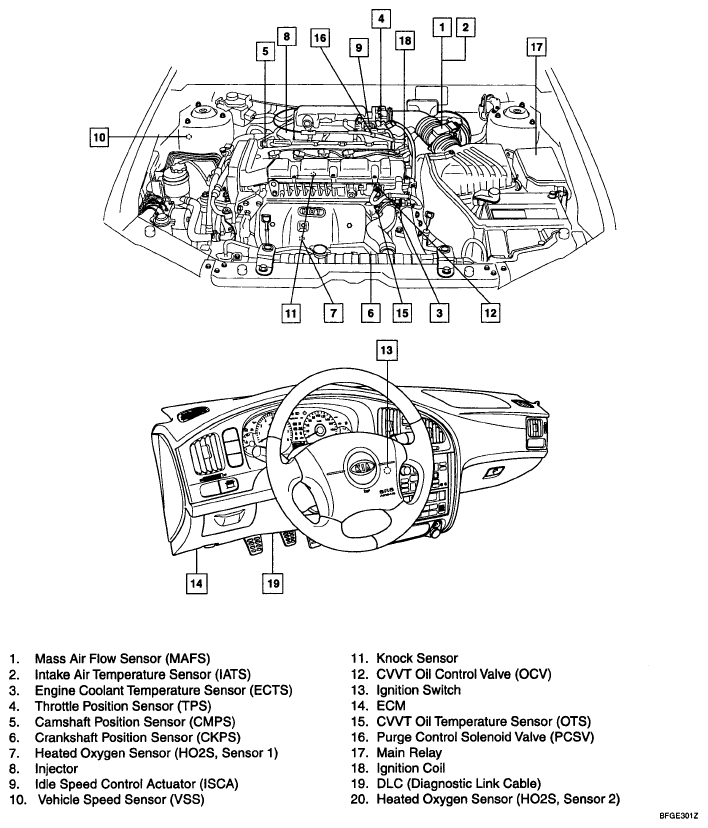

Fig 1: Identifying Gasoline Engine Control System Component Location (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

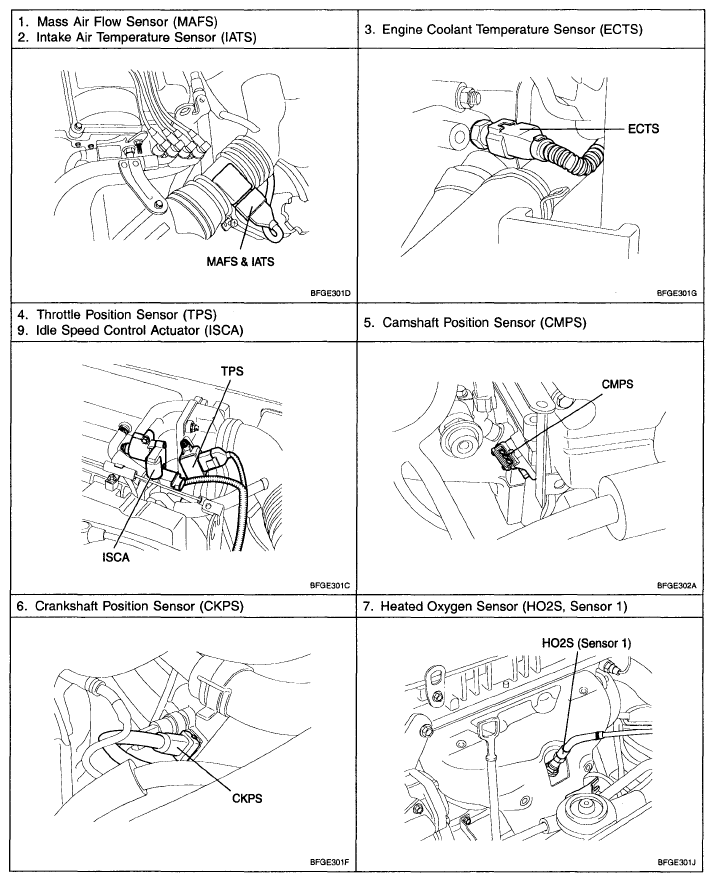

Fig 2: Identifying Gasoline Engine Control System Component Location (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

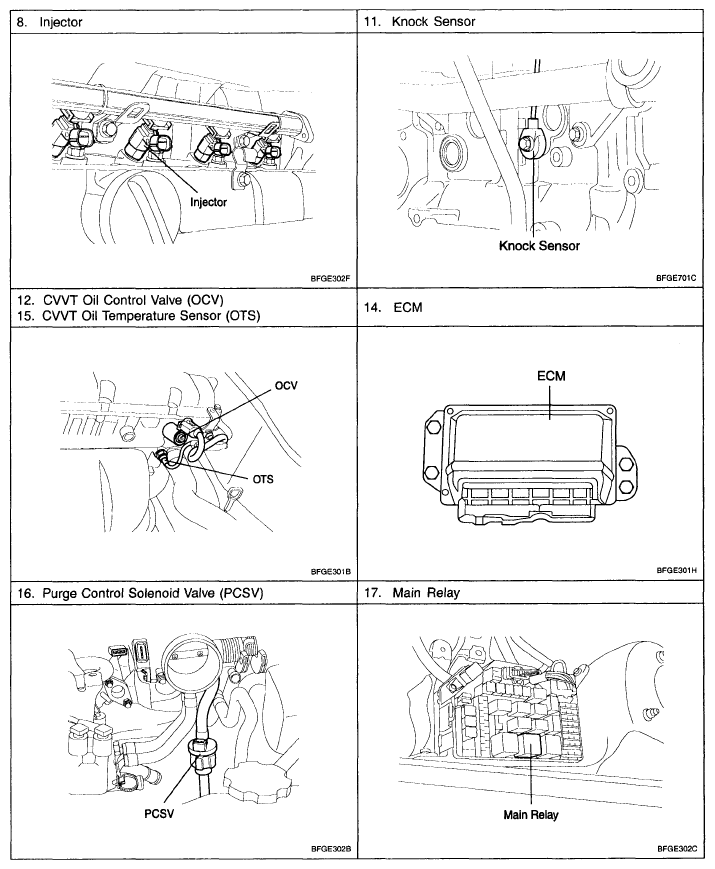

Fig 3: Identifying Gasoline Engine Control System Component Location (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

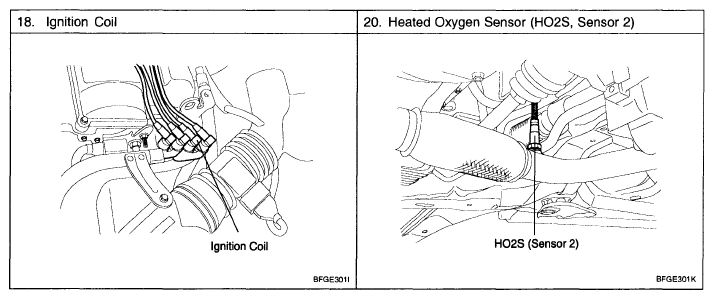

Fig 4: Identifying Gasoline Engine Control System Component Location (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
