Automatic Transmission/Transaxle
HYDRAULIC CONTROL SYSTEM

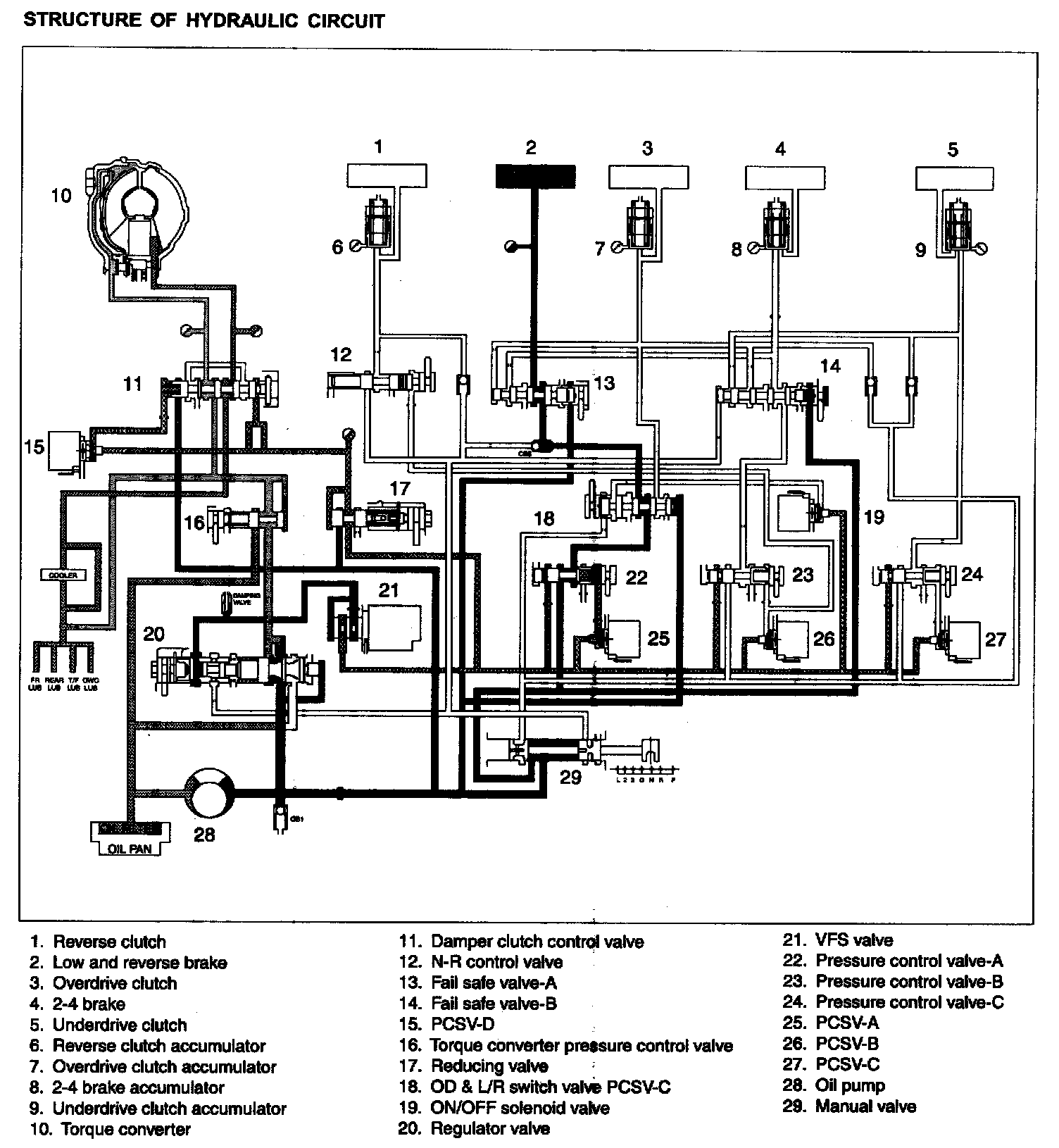

Structure Of Hydraulic Circuit:
HYDRAULIC CIRCUIT

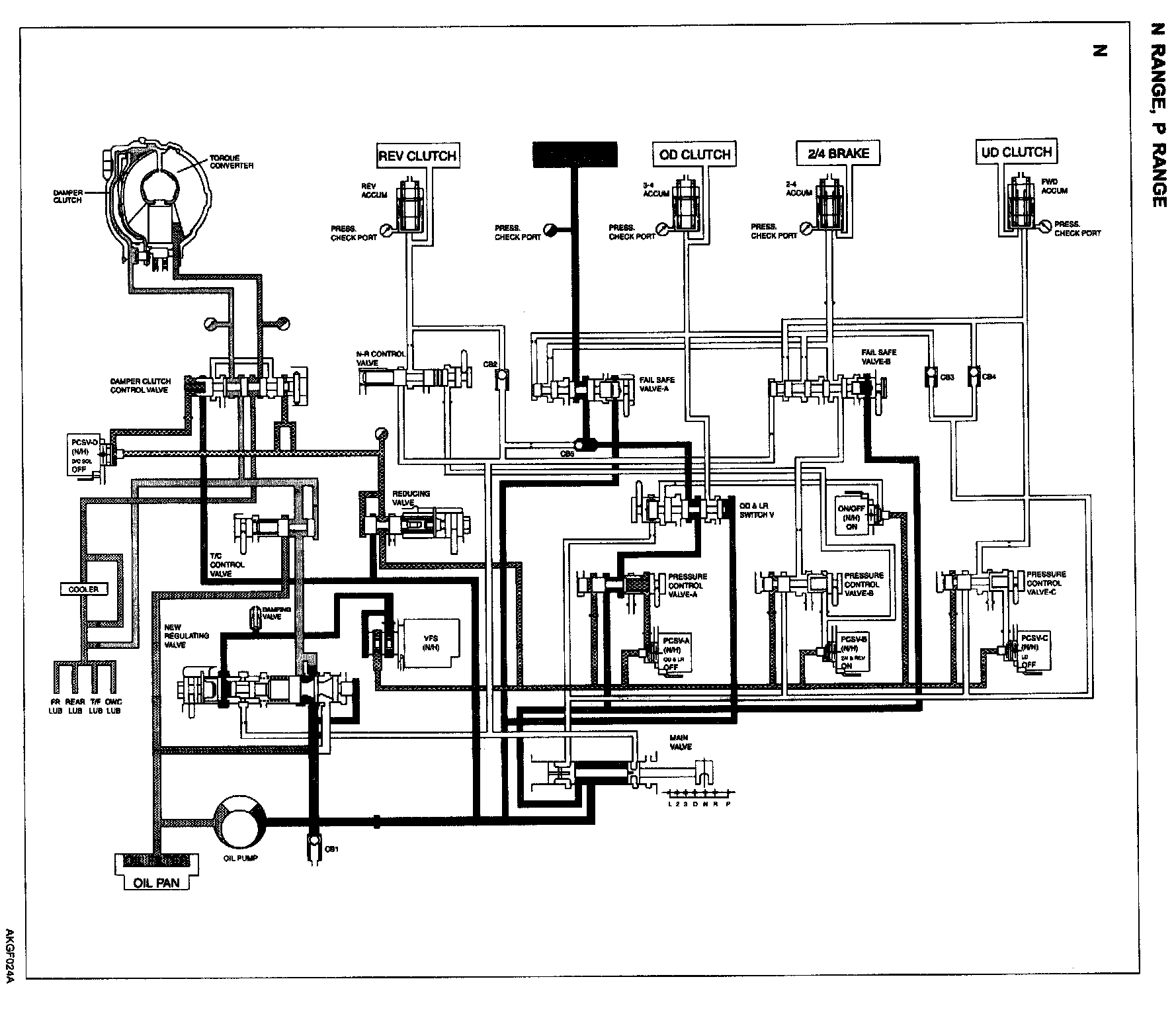

N Range, P Range:

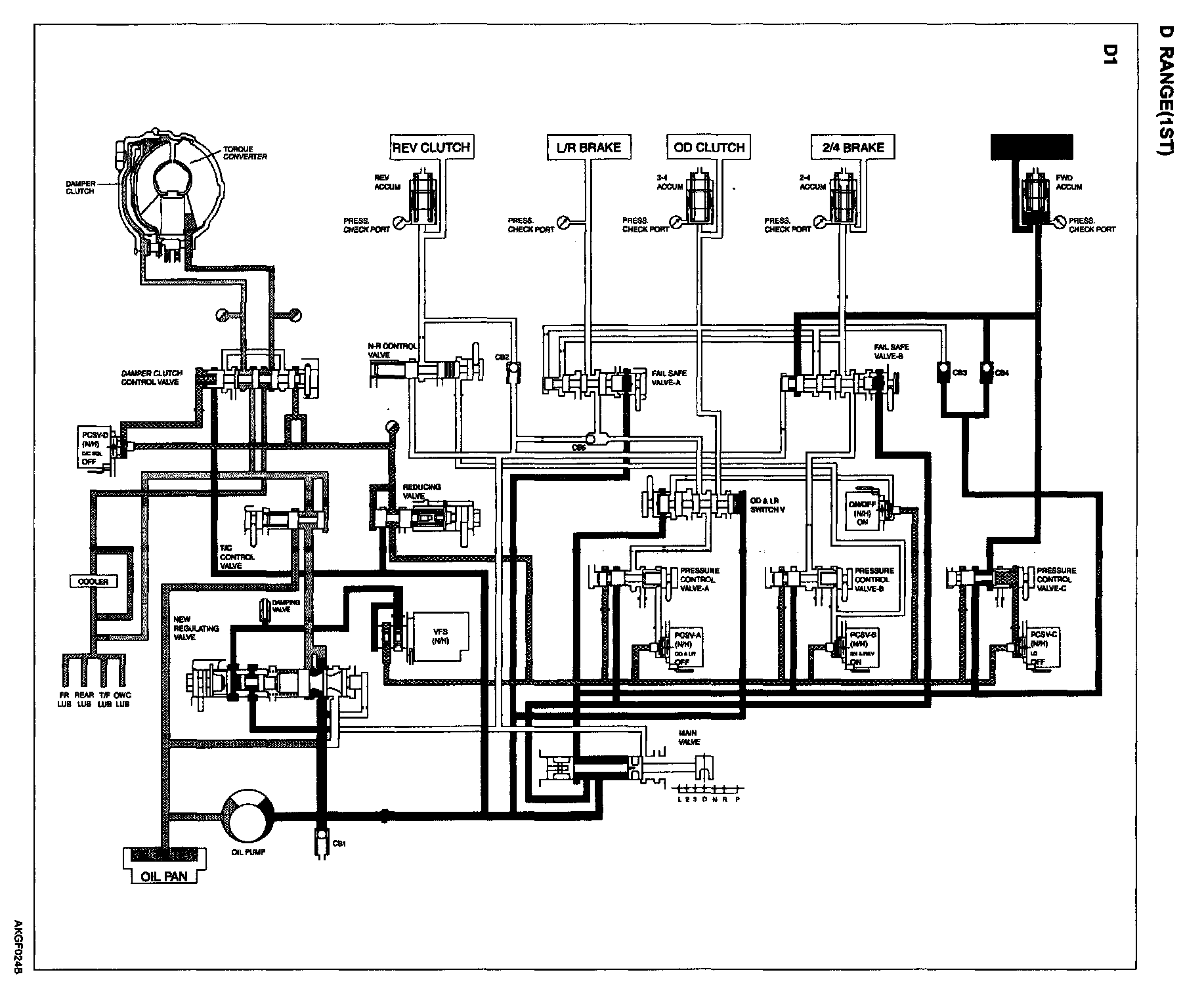

D Range(1st):

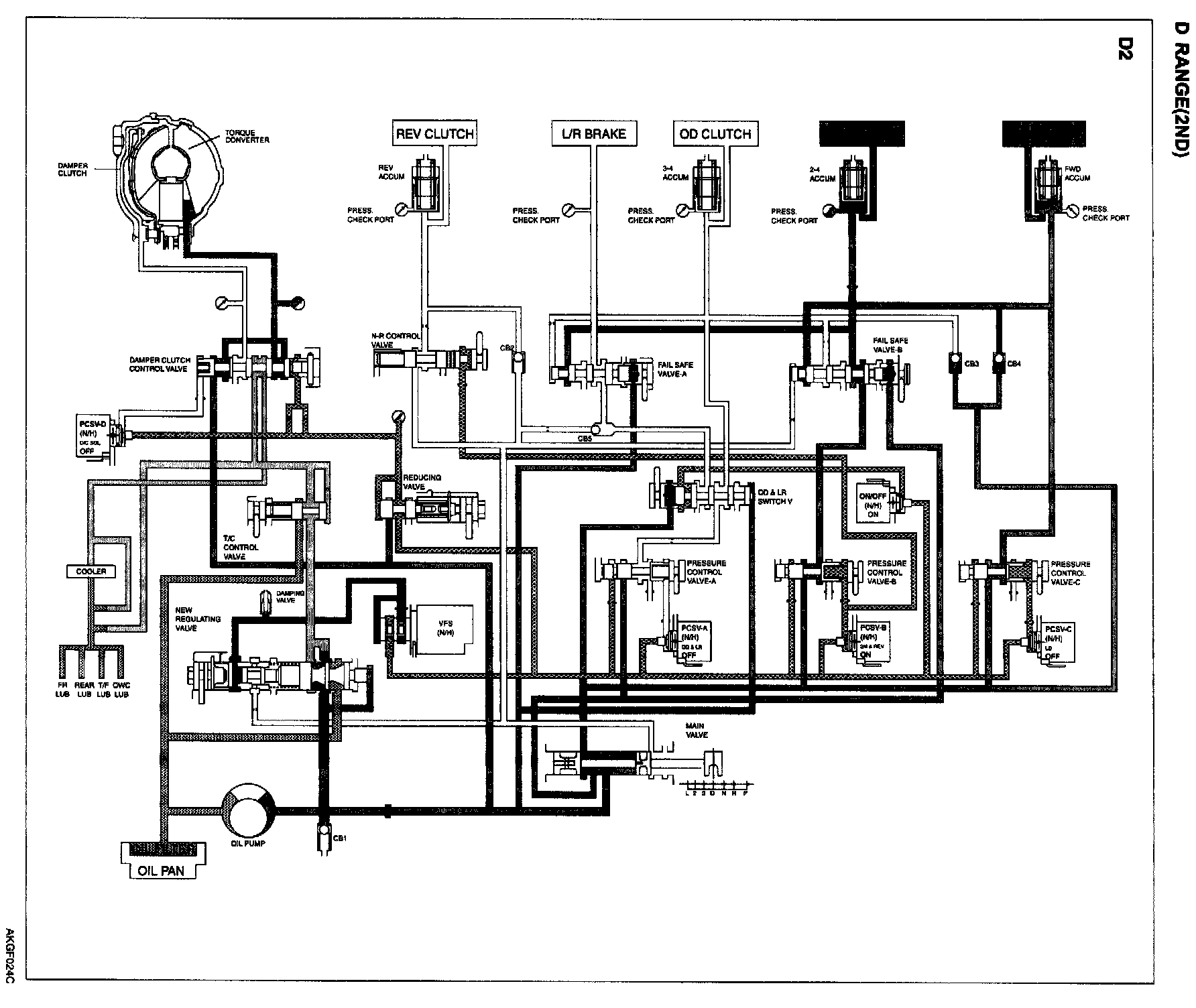

D Range(2nd):

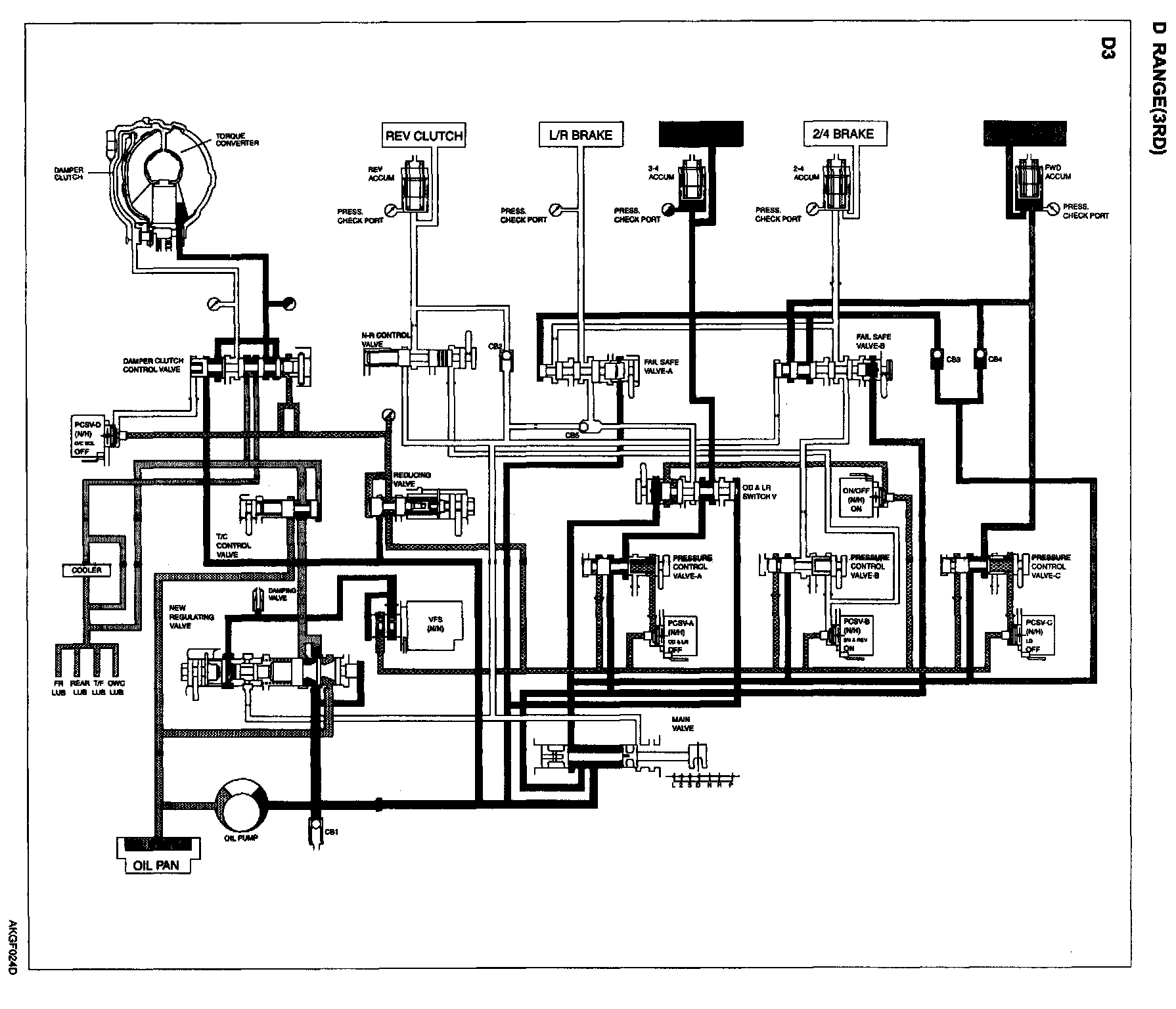

D Range(3rd):

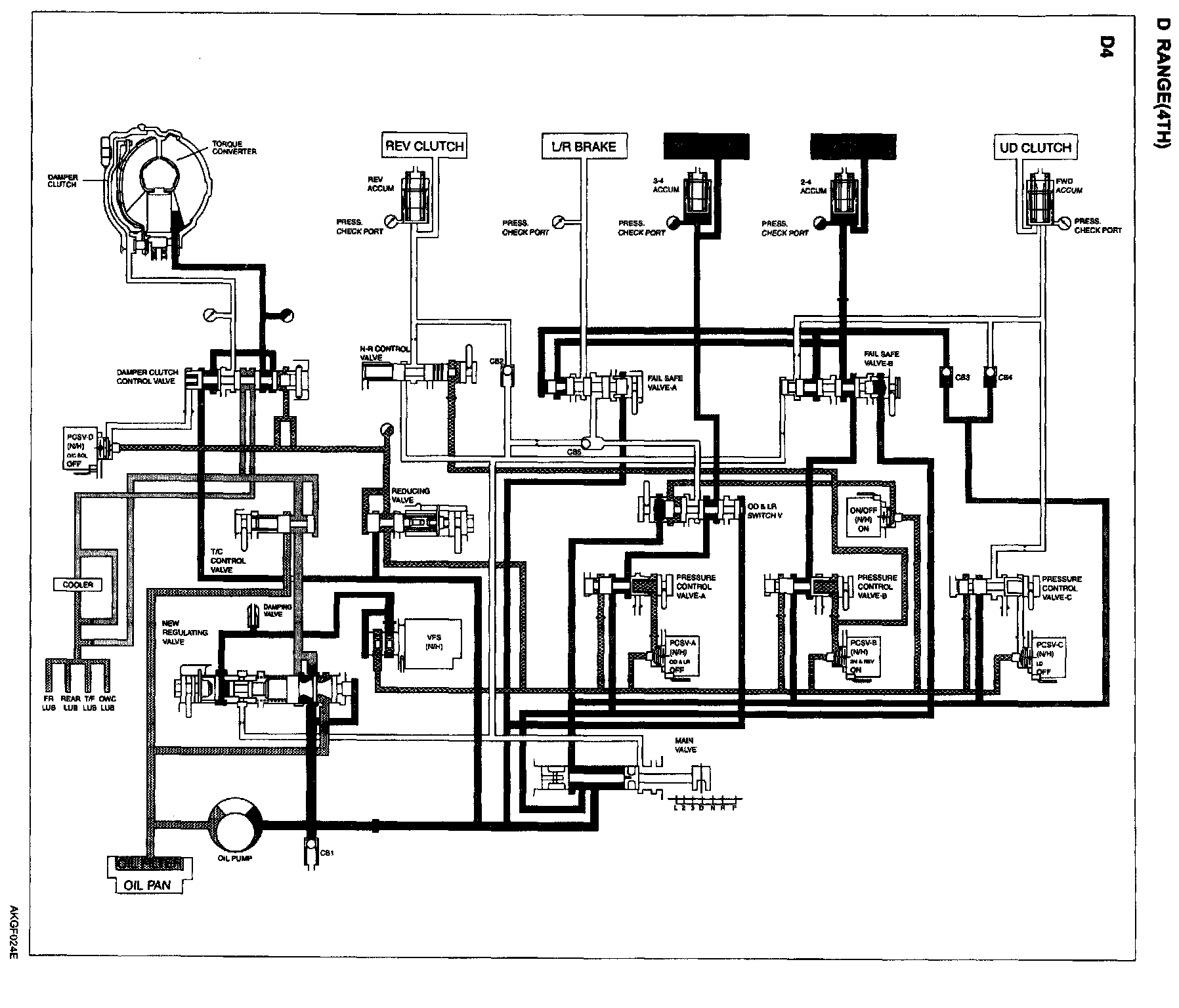

D Range(4th):

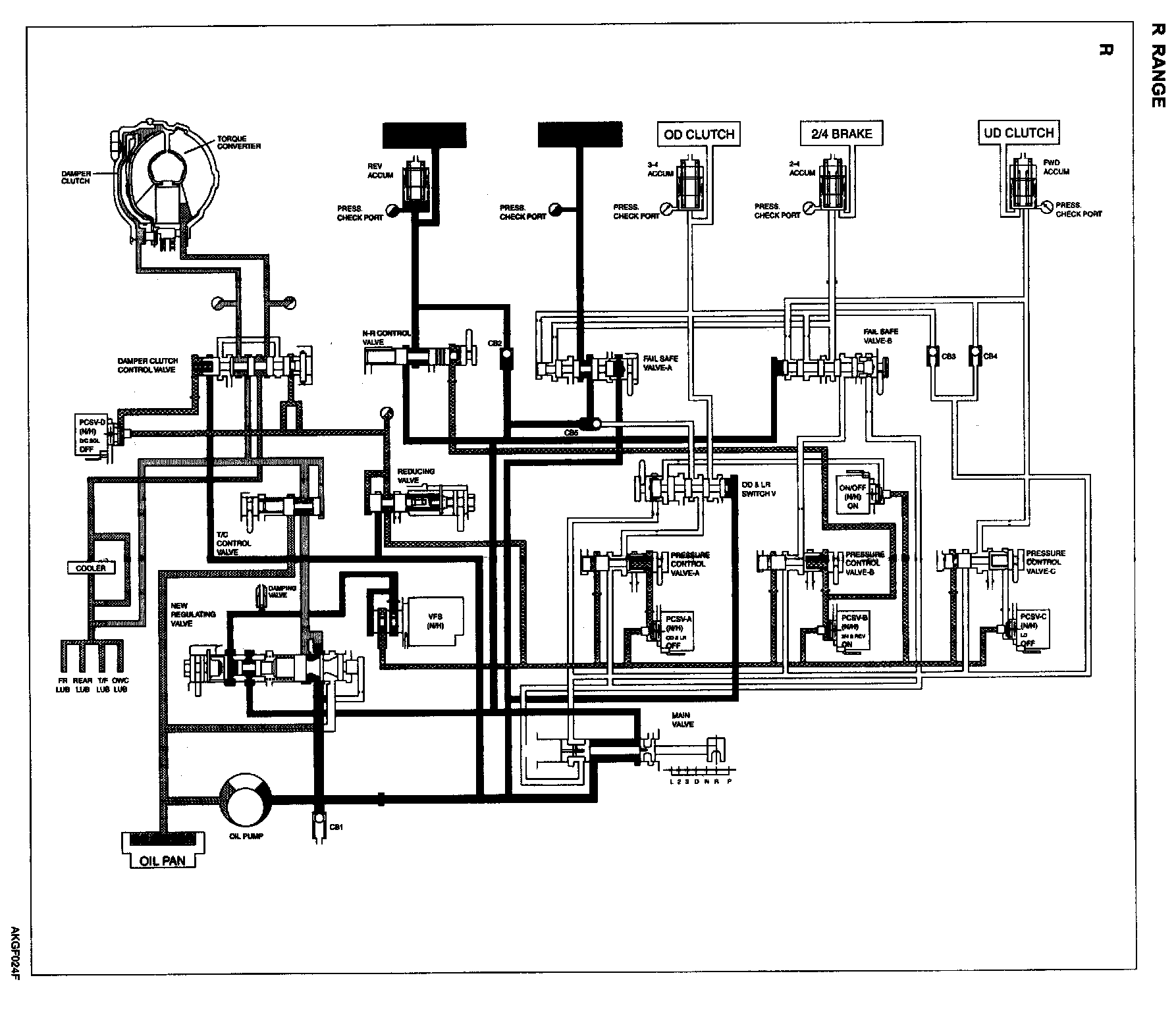

R Range:

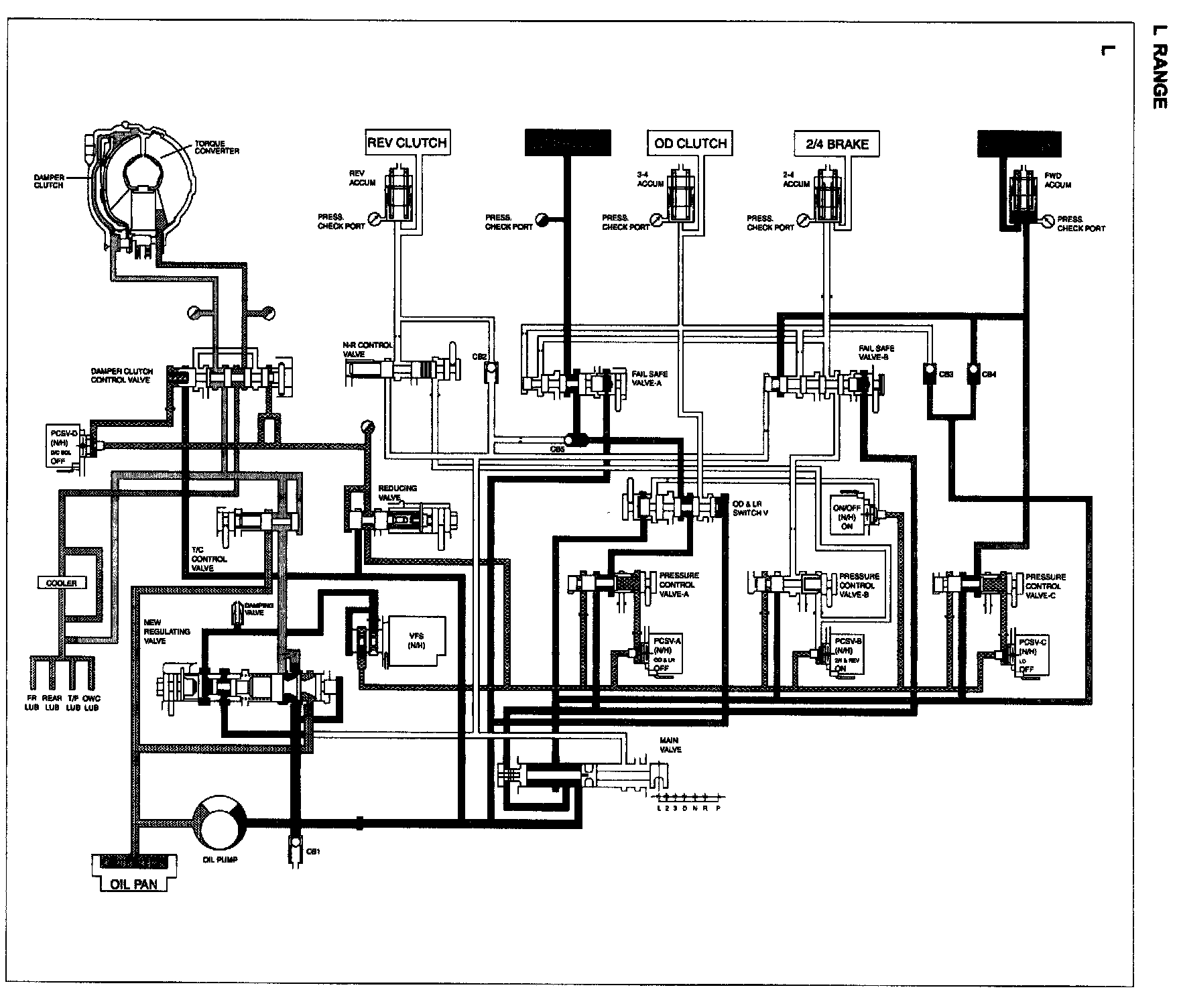

L Range:
