Multi-Mode Keyless Entry Function

Door lock function
If LOCK SW on RKE is pushed, LOCK data is sent to door module.

Door module controls the lock output.

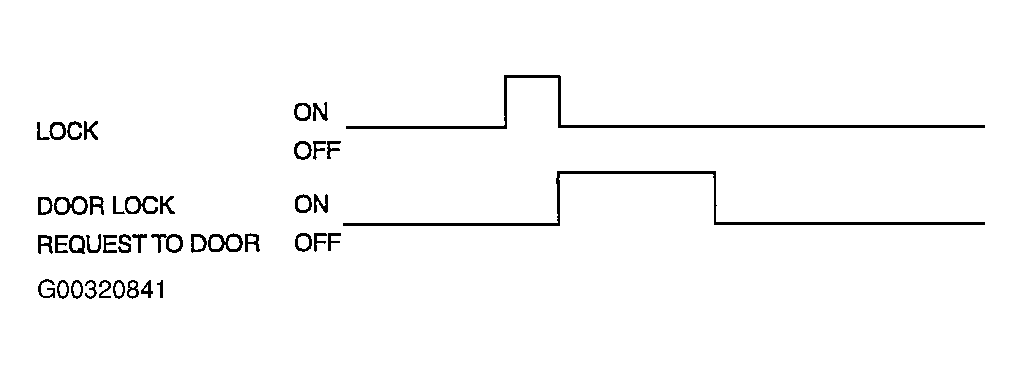

Fig 1: Door Lock Function On/Off Chart
Courtesy of KIA MOTORS AMERICA, INC.
Door unlock function
If unlock SW on RKE is pushed, unlock data is sent to door module.

Door module controls the unlock output.

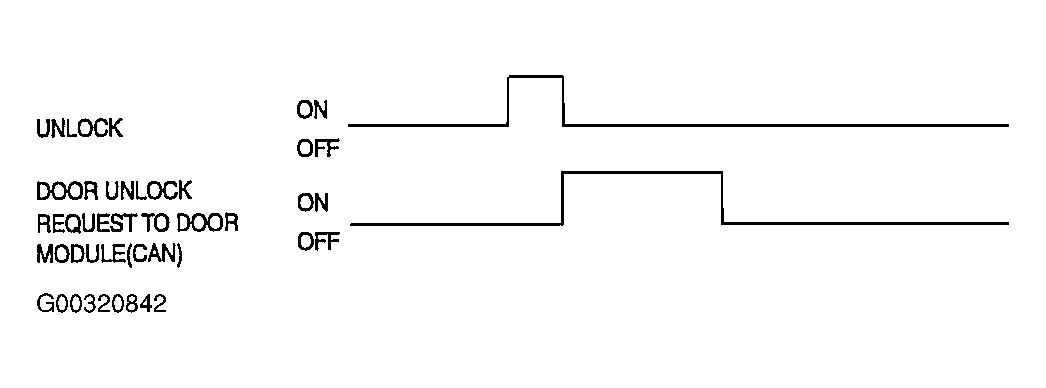

Fig 2: Door Unlock Function On/Off Chart
Courtesy of KIA MOTORS AMERICA, INC.
Trunk open function
If the trunk open data frame has been received by BCM, the trunk open relay is driven for 0.2 second (Trunk release on time)
NOTE:
- This function is inactivated state during trunk motor inhibition time on reset (default 0.2 second) after reset.
- If door is lock state, trunk can not be opened by external trunk open SW or trunk lid open SW
- During trunk open state, if the BCM receives the trunk release command via CAN, external trunk open SW, RKE than the BCM does not take trunk release action.

Fig 3: Trunk Open Function On/Off Chart

G00320843

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If key is inserted in IGN key cylinder, keyless function is disabled.
