Removal & Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the drive lower crash panel after removing the side mounting cover.

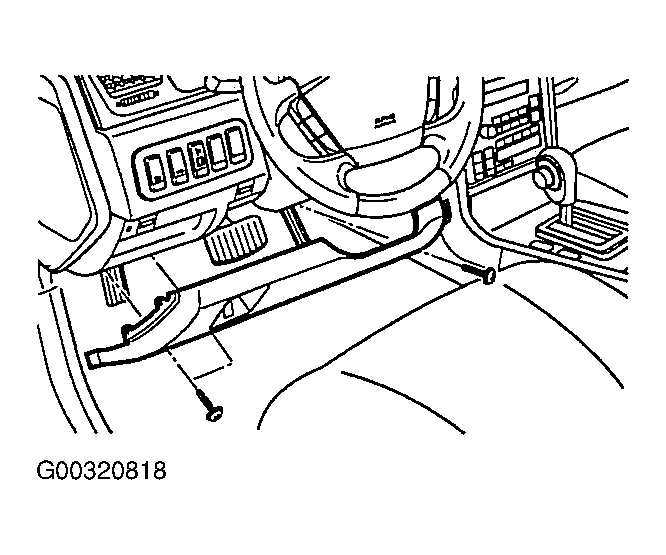

    Fig 1: Removing Drive Lower Crash Panel
    G00320818Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the BCM mounting bolt and disconnect the connector.

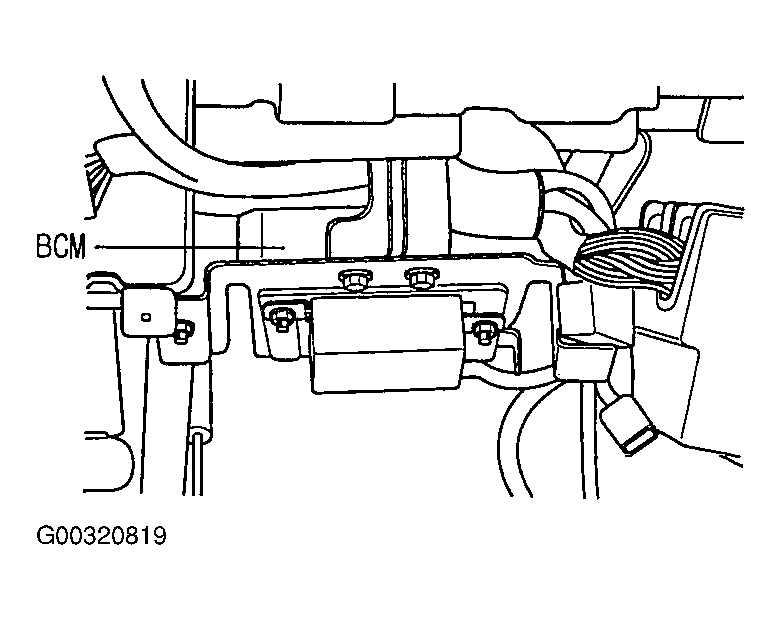

    Fig 2: Locating BCM
    G00320819Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal procedures.
    NOTE: If the battery voltage is disconnected for more than about 10 seconds, BCM is reset.
    WARNING: When learning the BCM after replacing it, enter the correct PIN code.
    Once if the incorrect PIN code is entered, BCM cannot be reused. Check the BCM state by using Hi-scan.
