Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Gasoline Engine Control System
>>
Injector
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

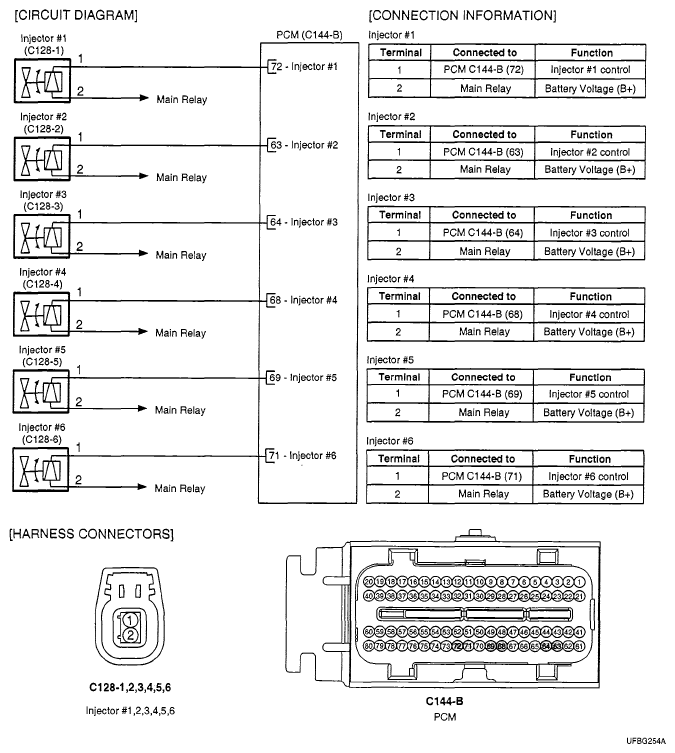

Fig 1: Injector - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
