Schematic Diagram

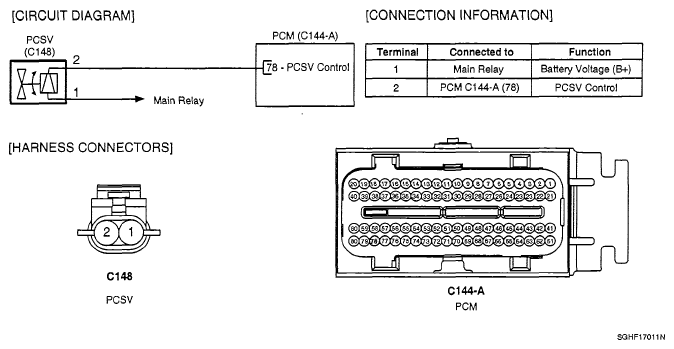

Fig 1: Purge Control Solenoid Valve (PCSV) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
