Variable Intake Solenoid (VIS) Valve: Description

Variable Intake Solenoid (VIS) Valve is installed on the intake manifold and isolates or not the one bank from the other banks to improve the intake efficiency.

1. Low/Middle Speed: VIS Valve Close → Resonation Effect → Improving Intake Efficiency
2. High Speed: VIS Valve Open → Improving Intake Inertia Effect → Improving Intake Efficiency

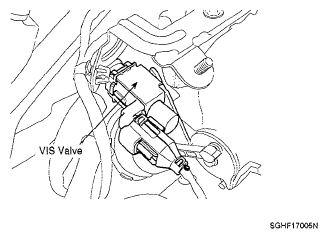

   Fig 1: Identifying Variable Intake Solenoid (VIS) Valve

   Courtesy of KIA MOTORS AMERICA, INC.

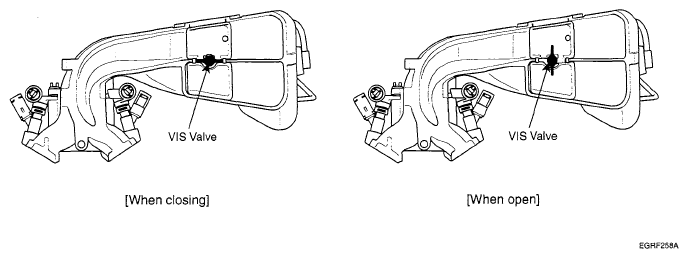

   Fig 2: Identifying Variable Intake Solenoid Valve Opening And Closing Position

   Courtesy of KIA MOTORS AMERICA, INC.
