Ignition System: Components

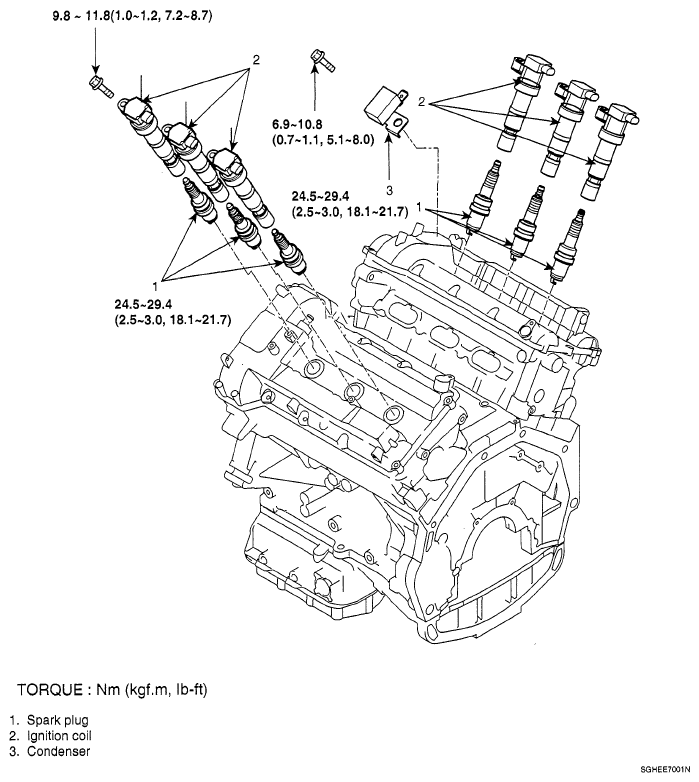

Fig 1: Ignition System Replacement Components With Torque Specifications
G05116227Courtesy of KIA MOTORS AMERICA, INC.
