Output Speed Sensor: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner assembly.
  4. Remove the output shaft speed sensor connector.
  5. Remove the output shaft speed sensor (A).

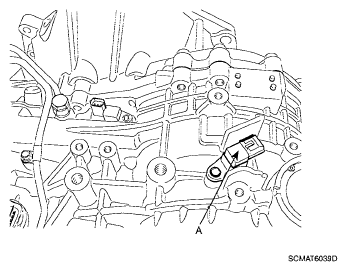

    Fig 1: Locating Output Shaft Speed Sensor
    G05116854Courtesy of KIA MOTORS AMERICA, INC.
