PWM (Pulse Width Modulation) Solenoid Valve Control Feature
Courtesy of KIA MOTORS AMERICA, INC.

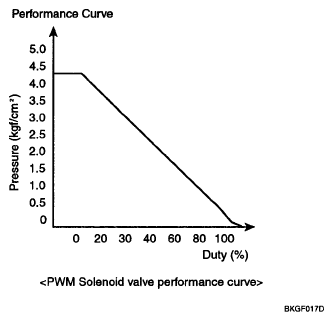

PWM solenoid valve is controlled linearly according to the duty ratio.
PWM SOLENOID VALVE SPECIFICATION
| Item |
Specification |
| Type |
3way & Normal High |
| Supply voltage |
12V |
| Coil resistance |
2.6 ± 0.2Ω |
| Control frequency |
61.27HZ (30.64HZ of Temp. ≤ -23°C) |
