VFS (Variable Force Solenoid) Valve: Installation

Install the solenoid valve (A).
CAUTION: Apply the ATF oil or White Vaseline to the O-ring not to be damaged.

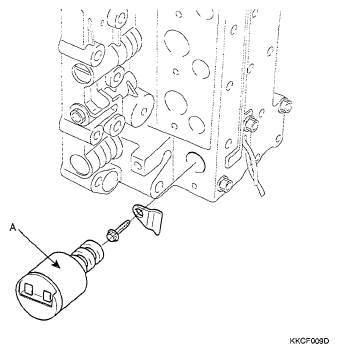

Fig 1: Identifying Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.
Connect the solenoid valve connector to the valve body.
CAUTION: When connecting the solenoid valve connector, check the connector for rust, dirt, or oil, then reconnect it.
Install the VFS reservoir (A).

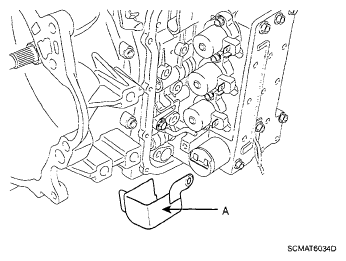

Fig 2: Locating VFS Reservoir
Courtesy of KIA MOTORS AMERICA, INC.
Continue to apply liquid gasket at application points at the oil pan with 02.5mm (0.098in) thickness.
Liquid gasket Part name: Threebond 1281B

Fig 3: Identifying Oil Pan Liquid Gasket Application
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the mounting bolt with the specified torque after installing the oil pan.
TORQUE: 13-15 N.m (1.3-1.5 kgf.m, 9.4-10.8 lb-ft)
Install the drain plug and refill the transaxle fluid.
TORQUE: 40-50 N.m (4.0-5.0 kgf.m, 28.9-36.2 lb-ft)
Install the splash shield.
Lower the vehicle and install the battery terminal.
