General (Restraints): General: Components: Notes

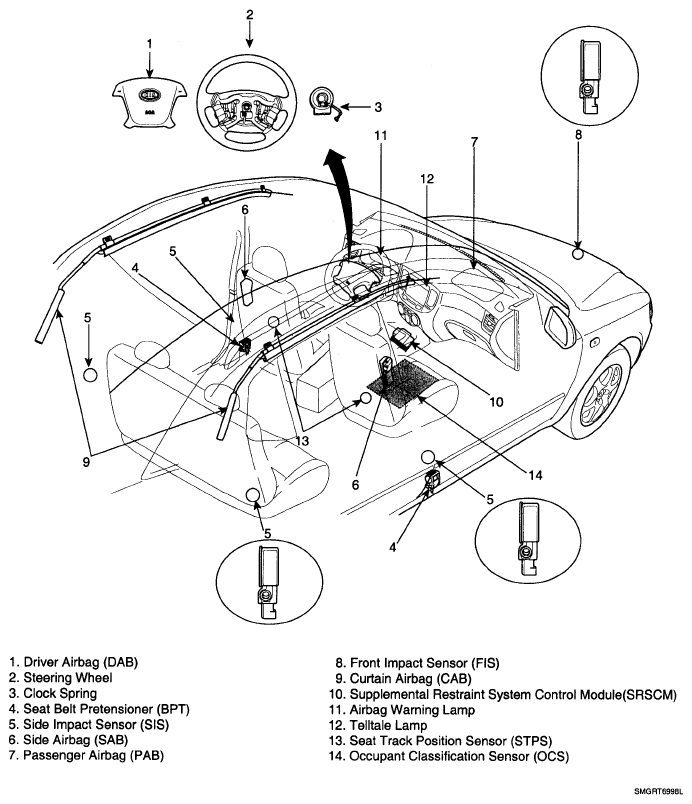

Fig 1: Identifying Supplemental Restraint System Components Location
G04805674Courtesy of KIA MOTORS AMERICA, INC.
