Front Side Impact Sensor
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the side impact sensor connector(s), disconnect the side airbag connector(s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the door scuff trim. (Refer to FRONT DOOR AND REAR DOOR SCUFF TRIM REPLACEMENT ).
- Remove the center pillar trim. (Refer to CENTER LOWER AND UPPER PILLAR TRIM REPLACEMENT ).

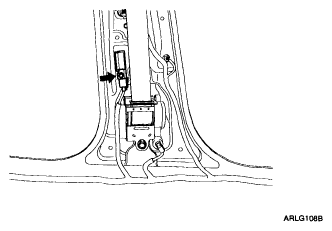

- Disconnect the Side Impact Sensor connector and remove the Side Impact Sensor mounting bolt.
