Rear Side Impact Sensor

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the rear seat. (Refer to SEAT article ).
  3. Disconnect the side impact sensor connector.
  4. Loosen the side impact sensor mounting bolt and remove the side impact sensor.

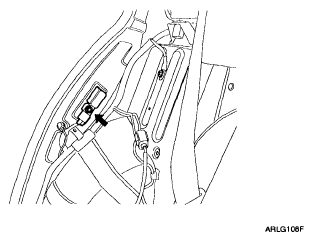

    Fig 1: Locating Side Impact Sensor Mounting Bolt
    G04805708Courtesy of KIA MOTORS AMERICA, INC.
