Components (1)

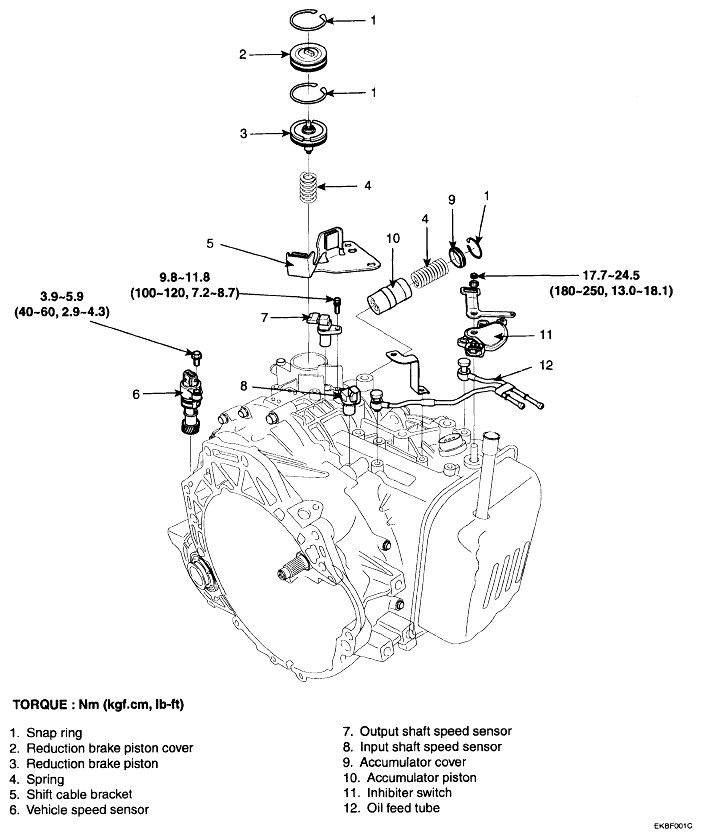

Fig 1: Identifying Automatic Transaxle Components (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

COMPONENTS (2)

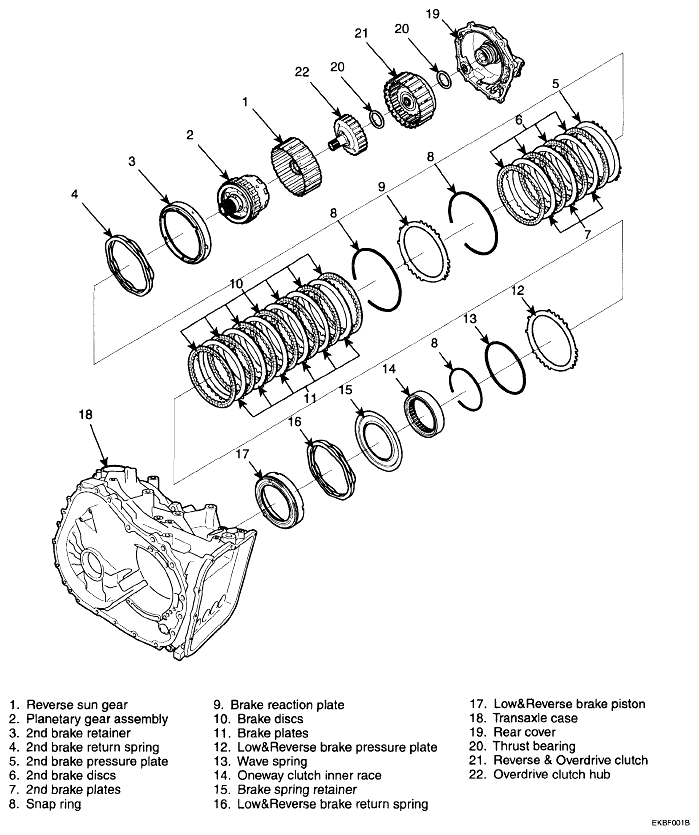

Fig 2: Identifying Automatic Transaxle Components (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

COMPONENTS (3)

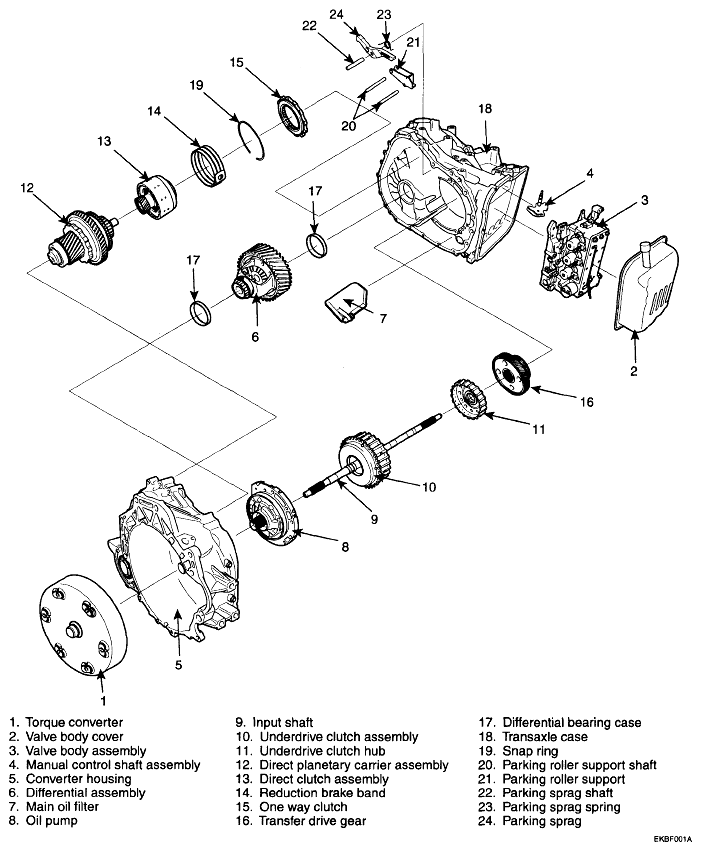

Fig 3: Identifying Automatic Transaxle Components (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
