Shift Lever: Removal

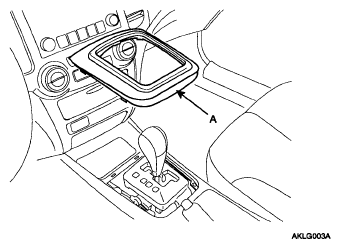

Remove the center console cover (A).

Fig 1: Identifying Center Console Cover
Courtesy of KIA MOTORS AMERICA, INC.

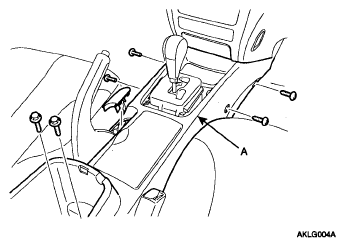

Remove the center console (A).

Fig 2: Identifying Center Console
Courtesy of KIA MOTORS AMERICA, INC.

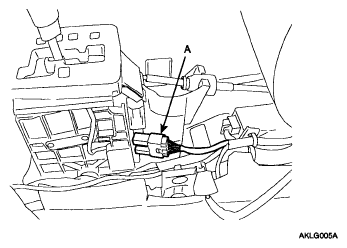

Disconnect the sports mode connector (A).

Fig 3: Identifying Sports Mode Connector
Courtesy of KIA MOTORS AMERICA, INC.

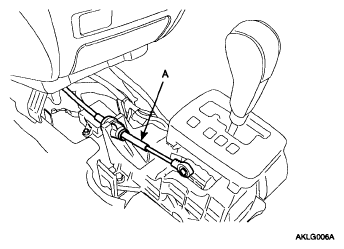

Disconnect the control cable (A).

Fig 4: Identifying Control Cable
Courtesy of KIA MOTORS AMERICA, INC.

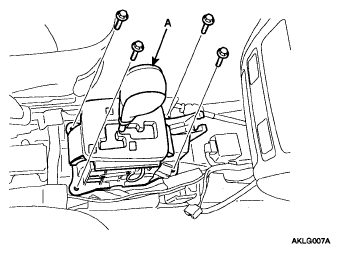

Remove the shift lever assembly (A) (Bolt: 4EA)

Fig 5: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
