Seat Belt Buckle Switch: Removal

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly. (Refer to SEAT article ).
  3. Remove the seat recliner cover.
  4. Loosen the seat belt buckle mounting bolt and remove the seat belt buckle switch.

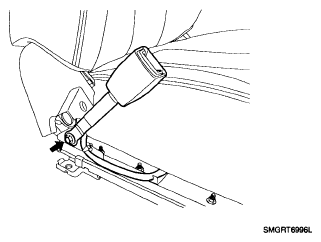

    Fig 1: Locating Seat Belt Buckle Mounting Bolt
    G04805710Courtesy of KIA MOTORS AMERICA, INC.
