Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

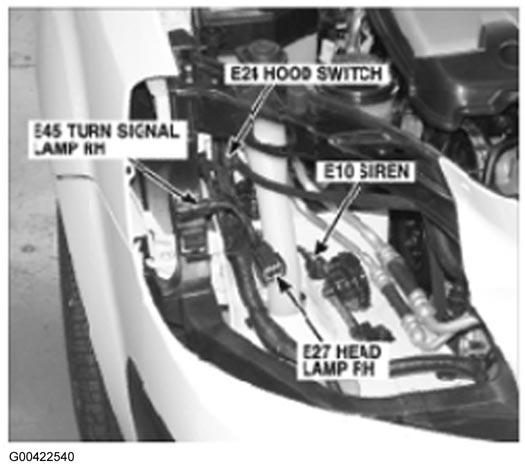

Fig 1: Right Front Corner Of Vehicle

G00422540

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Left Front Corner Of Vehicle

G00447221

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Right Front Of Engine Compartment

G00447222

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Right Front Of Engine Compartment

G00447245

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Left Front Of Engine Compartment

G00447223

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Right Front Of Engine Compartment

G00447224

Courtesy of KIA MOTORS AMERICA, INC.

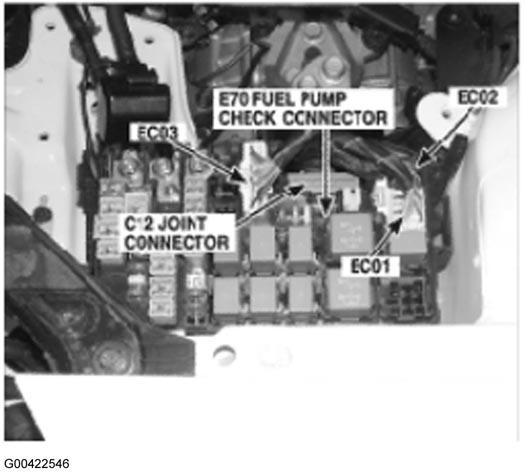

Fig 7: Left Rear Of Engine Compartment

G00422546

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Top Of Engine

G00447225

Courtesy of KIA MOTORS AMERICA, INC.

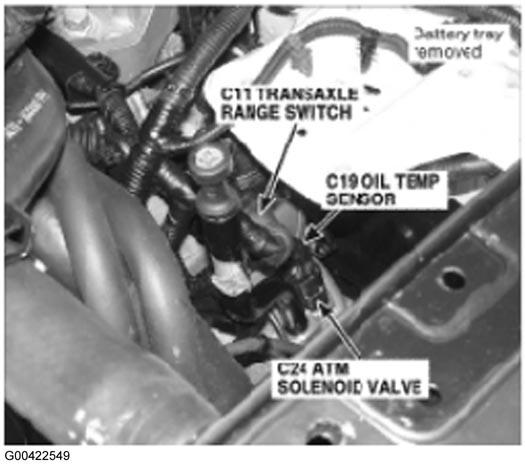

Fig 9: Top Of Transaxle

G00422549

Courtesy of KIA MOTORS AMERICA, INC.

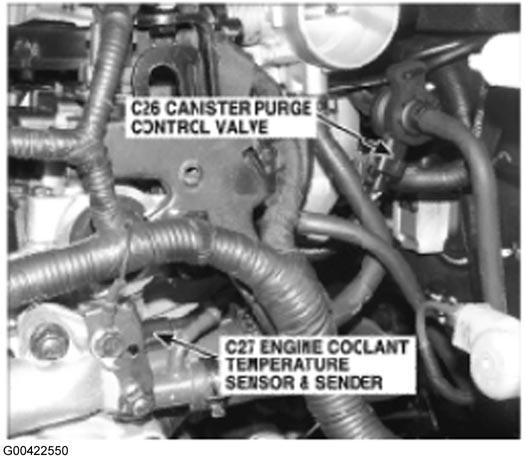

Fig 10: Rear Of Engine

G00422550

Courtesy of KIA MOTORS AMERICA, INC.

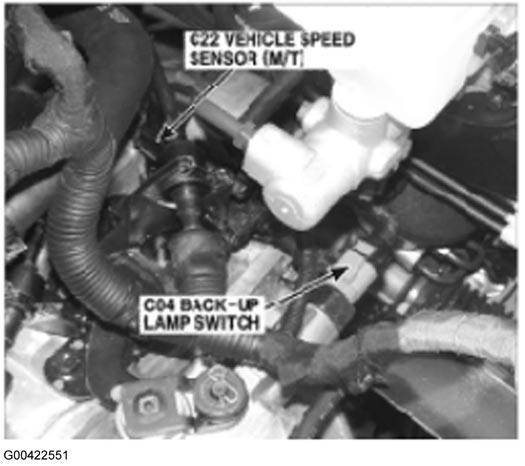

Fig 11: Top Of Transaxle

G00422551

Courtesy of KIA MOTORS AMERICA, INC.

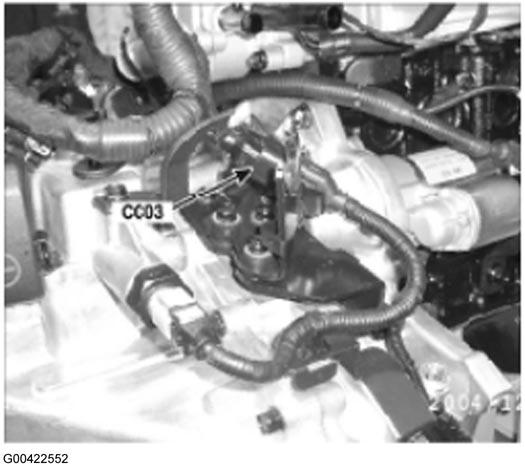

Fig 12: Top Of Transaxle

G00422552

Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Front Of Engine Compartment

G00447226

Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Left Rear Of Engine Compartment

G00422554

Courtesy of KIA MOTORS AMERICA, INC.

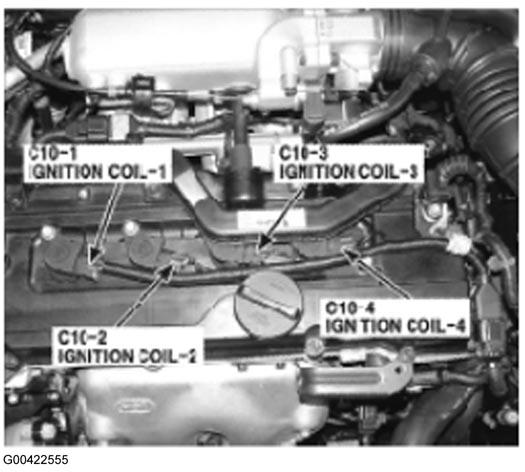

Fig 15: Top Of Engine

G00422555

Courtesy of KIA MOTORS AMERICA, INC.

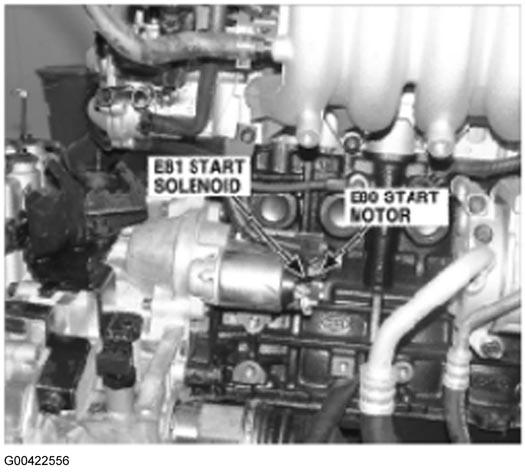

Fig 16: Right Rear Of Engine

G00422556

Courtesy of KIA MOTORS AMERICA, INC.

Fig 17: Top Of Engine

G00447227

Courtesy of KIA MOTORS AMERICA, INC.

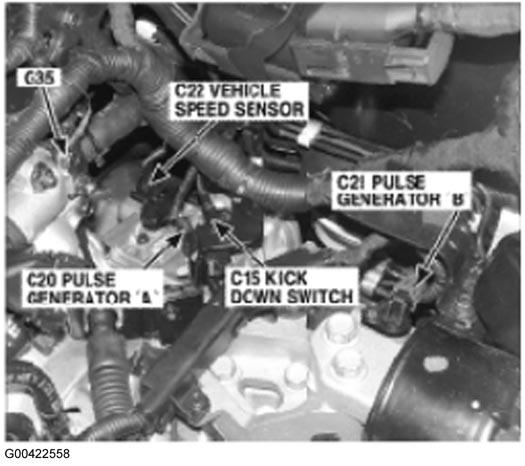

Fig 18: Top Of Transaxle

G00422558

Courtesy of KIA MOTORS AMERICA, INC.

Fig 19: Top Rear Of Engine

G00447228

Courtesy of KIA MOTORS AMERICA, INC.

Fig 20: Right Side Of Engine Compartment

G00447229

Courtesy of KIA MOTORS AMERICA, INC.

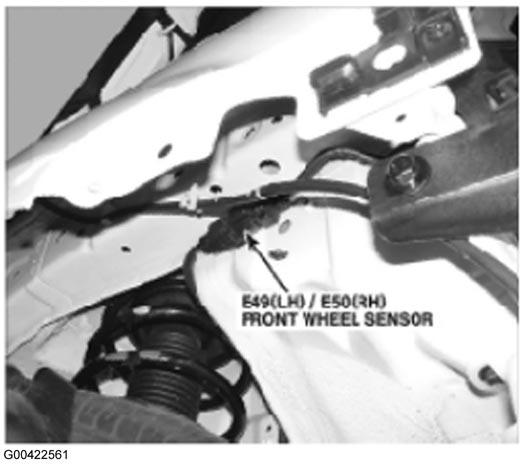

Fig 21: Front Wheel Assemblies

G00422561

Courtesy of KIA MOTORS AMERICA, INC.

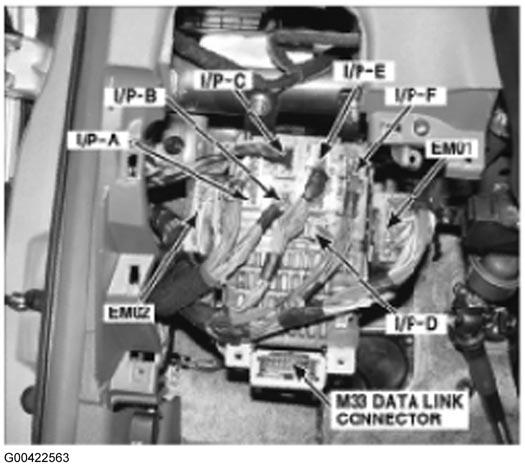

Fig 22: Under Left Side Of Dash

G00422563

Courtesy of KIA MOTORS AMERICA, INC.

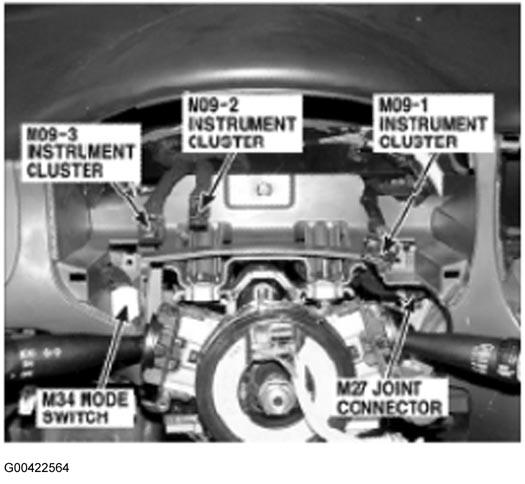

Fig 23: Behind Instrument Cluster

G00422564

Courtesy of KIA MOTORS AMERICA, INC.

Fig 24: Steering Column

G00447230

Courtesy of KIA MOTORS AMERICA, INC.

Fig 25: Behind Center Of Dash

G00422566

Courtesy of KIA MOTORS AMERICA, INC.

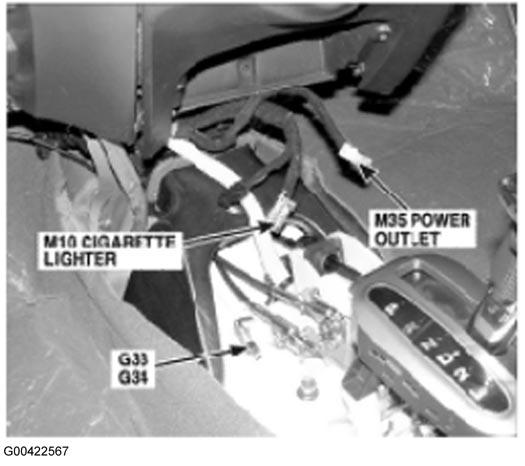

Fig 26: Under Center Console

G00422567

Courtesy of KIA MOTORS AMERICA, INC.

Fig 27: Under Center Console

G00422568

Courtesy of KIA MOTORS AMERICA, INC.

Fig 28: Under Left Side Of Dash

G00447231

Courtesy of KIA MOTORS AMERICA, INC.

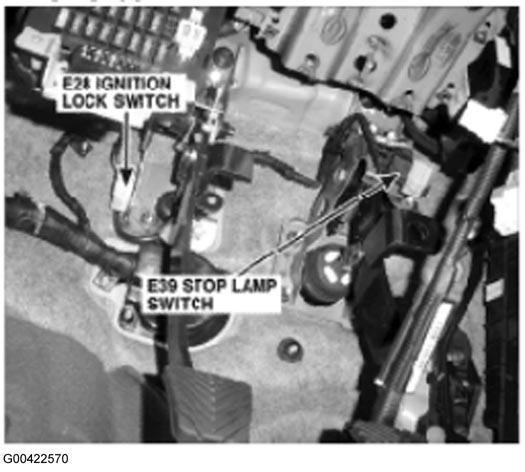

Fig 29: Under Left Side Of Dash

G00422570

Courtesy of KIA MOTORS AMERICA, INC.

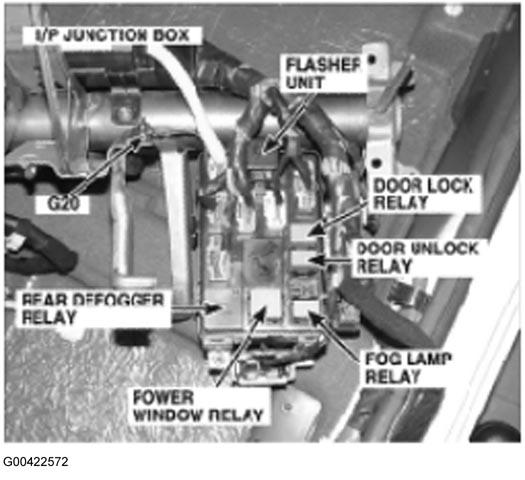

Fig 30: Under Left Side Of Dash

G00422572

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Under Right Side Of Dash

G00422573

Courtesy of KIA MOTORS AMERICA, INC.

Fig 32: Under Center Of Dash

G00447232

Courtesy of KIA MOTORS AMERICA, INC.

Fig 33: Behind Right Side Of Dash

G00447233

Courtesy of KIA MOTORS AMERICA, INC.

Fig 34: Behind Right Side Of Dash

G00447234

Courtesy of KIA MOTORS AMERICA, INC.

Fig 35: Left Kick Panel

G00447235

Courtesy of KIA MOTORS AMERICA, INC.

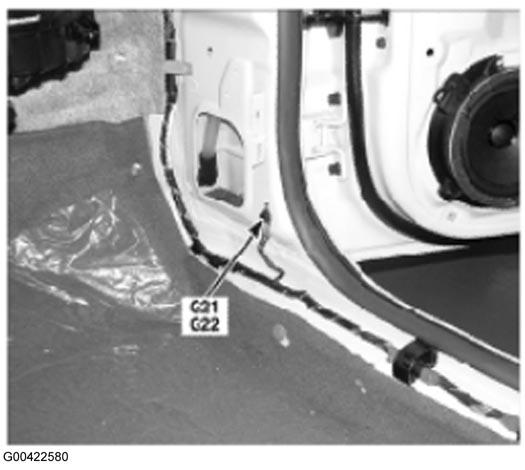

Fig 36: Right Kick Panel

G00422580

Courtesy of KIA MOTORS AMERICA, INC.

Fig 37: Driver's Seat

G00447236

Courtesy of KIA MOTORS AMERICA, INC.

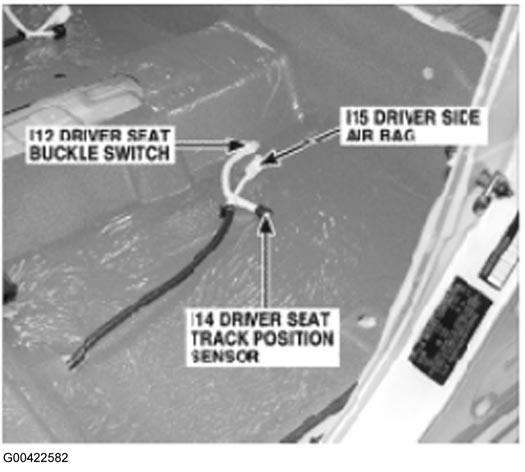

Fig 38: Under Driver's Seat

G00422582

Courtesy of KIA MOTORS AMERICA, INC.

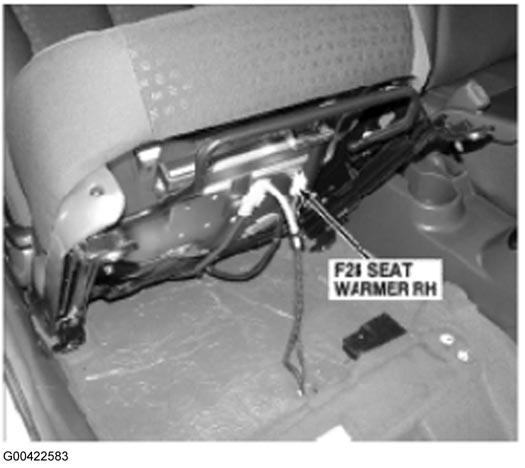

Fig 39: Front Passenger's Seat

G00422583

Courtesy of KIA MOTORS AMERICA, INC.

Fig 40: Under Front Passenger's Seat

G00422584

Courtesy of KIA MOTORS AMERICA, INC.

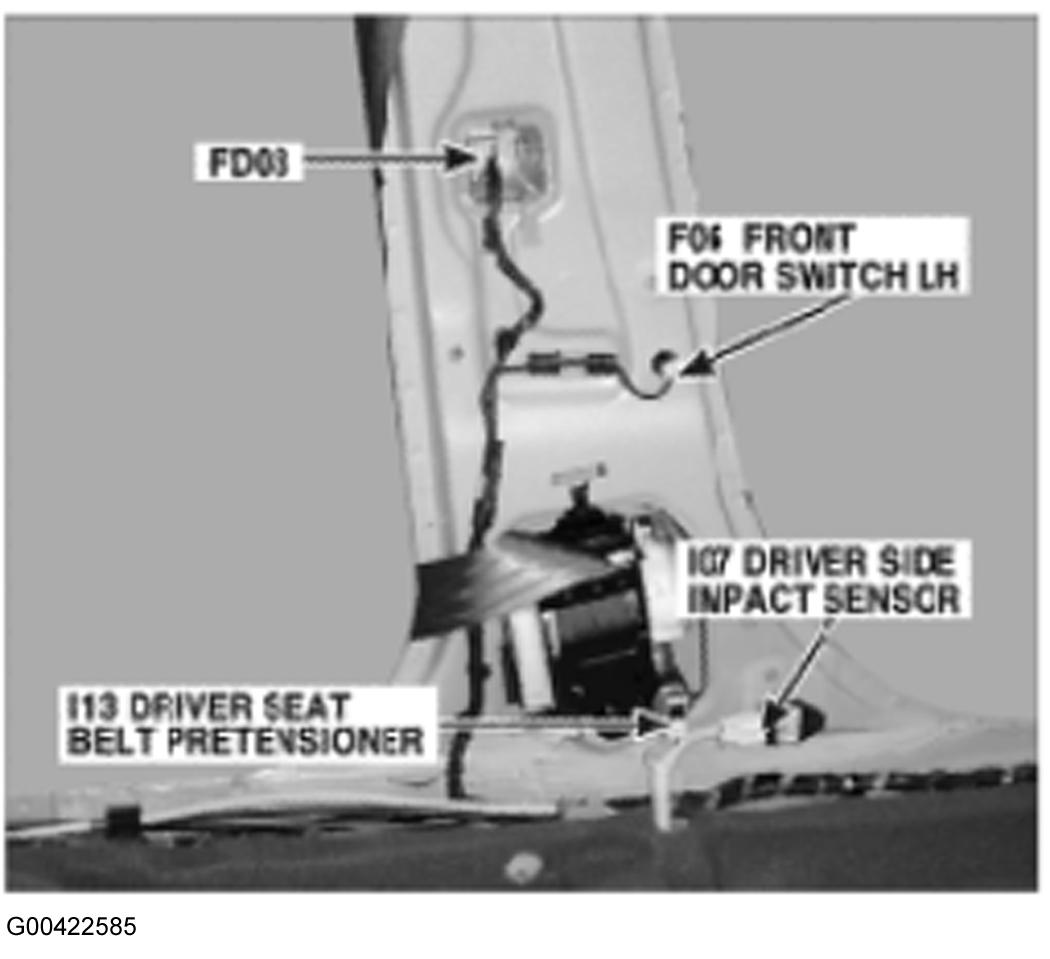

Fig 41: Left "B" Pillar

G00422585

Courtesy of KIA MOTORS AMERICA, INC.

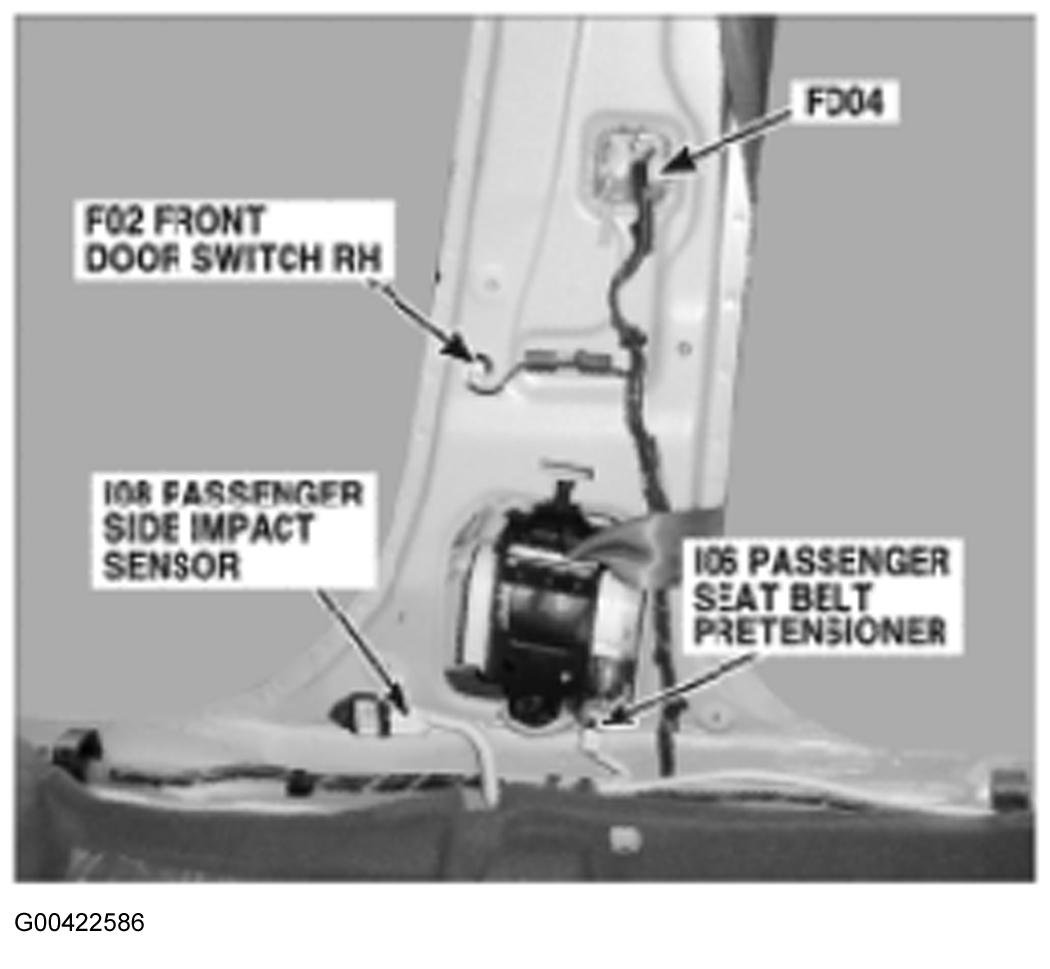

Fig 42: Right "B" Pillar

G00422586

Courtesy of KIA MOTORS AMERICA, INC.

Fig 43: Left "C" Pillar & Rear Wheelwell (Sedan)

G00447237

Courtesy of KIA MOTORS AMERICA, INC.

Fig 44: Left "C" Pillar (5 Door)

G00447238

Courtesy of KIA MOTORS AMERICA, INC.

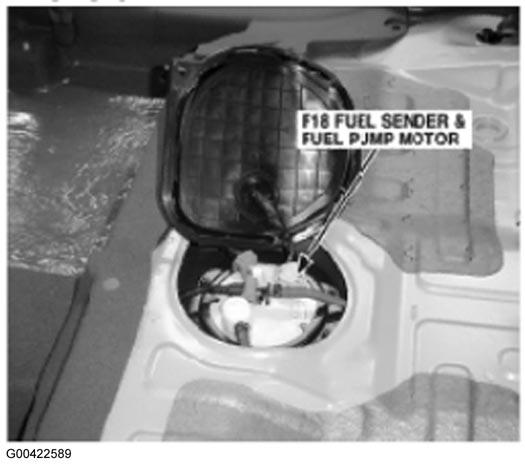

Fig 45: Under Rear Seat

G00422589

Courtesy of KIA MOTORS AMERICA, INC.

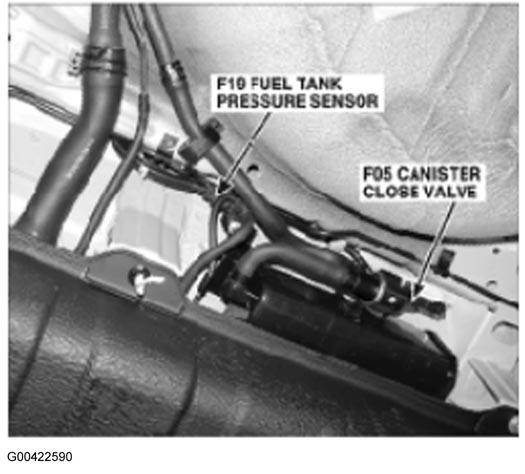

Fig 46: Under Rear Of Vehicle

G00422590

Courtesy of KIA MOTORS AMERICA, INC.

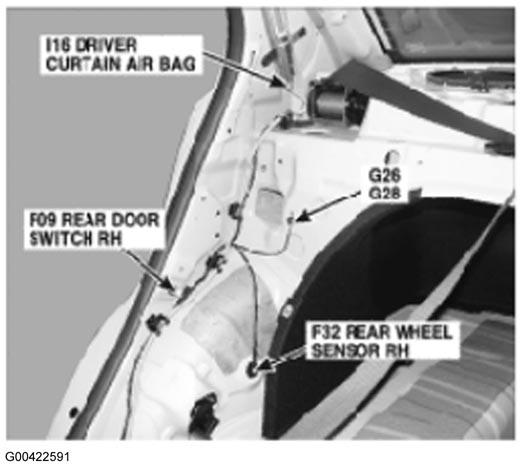

Fig 47: Right "C" Pillar & Wheelwell (Sedan)

G00422591

Courtesy of KIA MOTORS AMERICA, INC.

Fig 48: Right "C" Pillar (5 Door)

G00447239

Courtesy of KIA MOTORS AMERICA, INC.

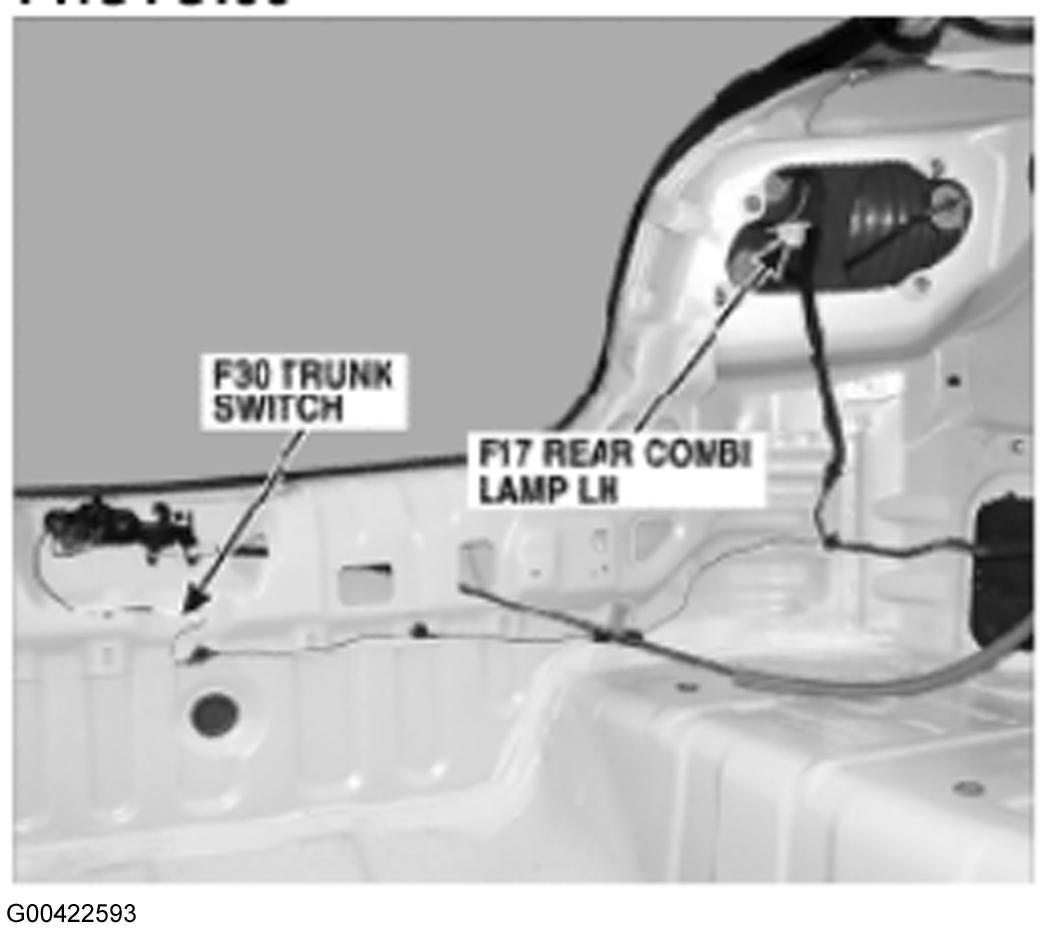

Fig 49: Rear Of Luggage Compartment

G00422593

Courtesy of KIA MOTORS AMERICA, INC.

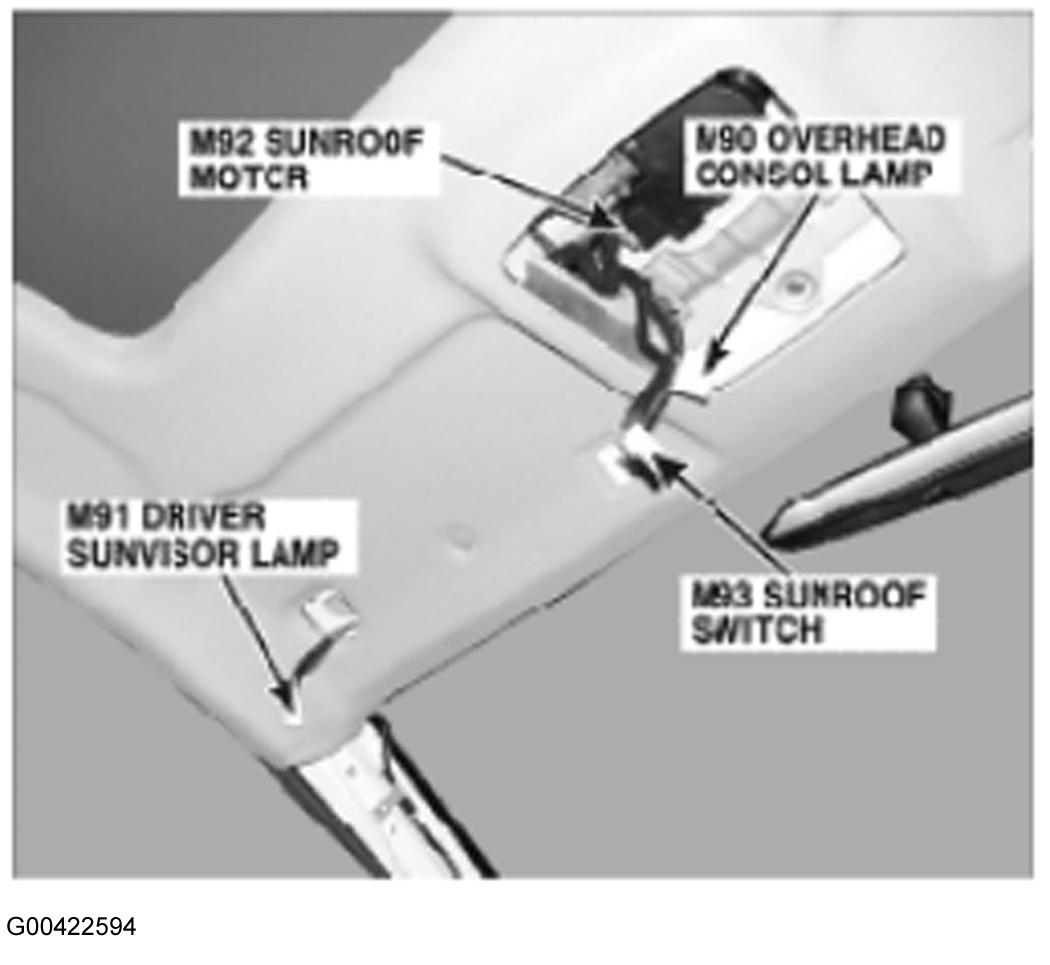

Fig 50: Roof

G00422594

Courtesy of KIA MOTORS AMERICA, INC.

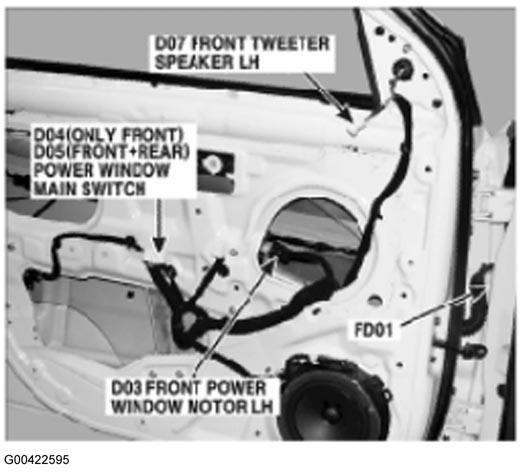

Fig 51: Driver's Door

G00422595

Courtesy of KIA MOTORS AMERICA, INC.

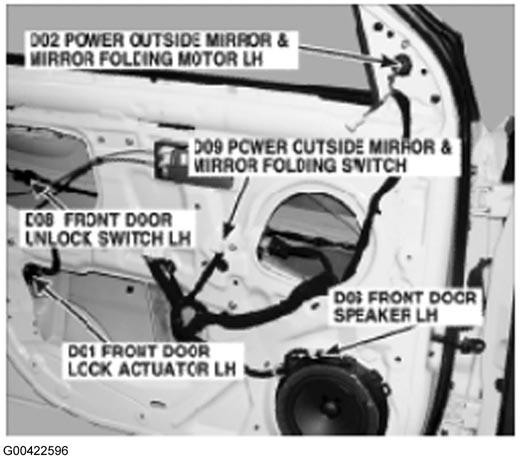

Fig 52: Driver's Door

G00422596

Courtesy of KIA MOTORS AMERICA, INC.

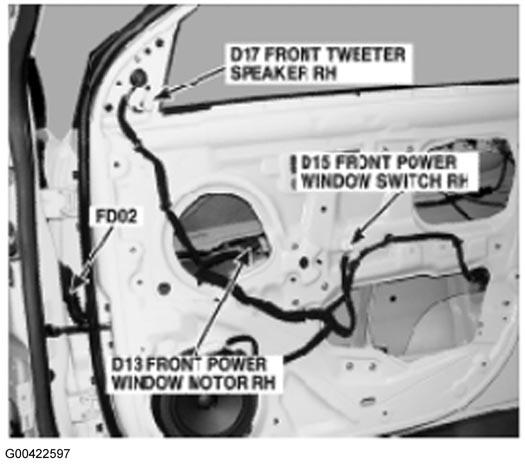

Fig 53: Front Passenger's Door

G00422597

Courtesy of KIA MOTORS AMERICA, INC.

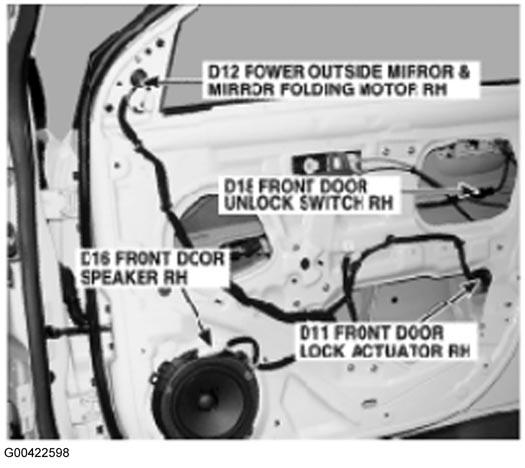

Fig 54: Front Passenger's Door

G00422598

Courtesy of KIA MOTORS AMERICA, INC.

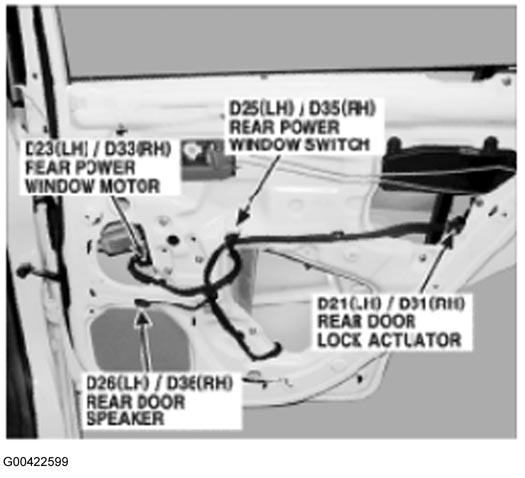

Fig 55: Rear Doors (Right Shown)

G00422599

Courtesy of KIA MOTORS AMERICA, INC.

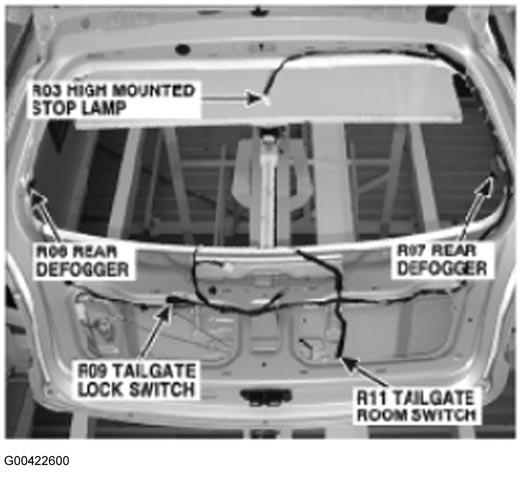

Fig 56: Tailgate

G00422600

Courtesy of KIA MOTORS AMERICA, INC.

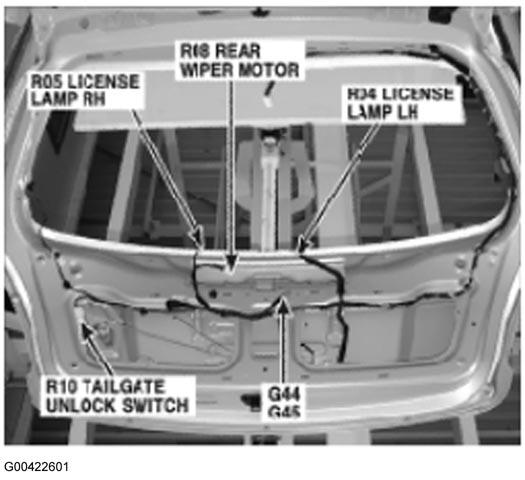

Fig 57: Tailgate

G00422601

Courtesy of KIA MOTORS AMERICA, INC.

Fig 58: Behind Center Of Dash

G00422605

Courtesy of KIA MOTORS AMERICA, INC.

Fig 59: Left Rear Of Engine Compartment

G00447243

Courtesy of KIA MOTORS AMERICA, INC.

Fig 60: Under Left Side Of Dash

G00447244

Courtesy of KIA MOTORS AMERICA, INC.

Fig 61: Right Rear Of Trunk (Sedan)

G00447240

Courtesy of KIA MOTORS AMERICA, INC.

Fig 62: Trunk Lid

G00447241

Courtesy of KIA MOTORS AMERICA, INC.

Fig 63: Right "C" Pillar

G00447242

Courtesy of KIA MOTORS AMERICA, INC.

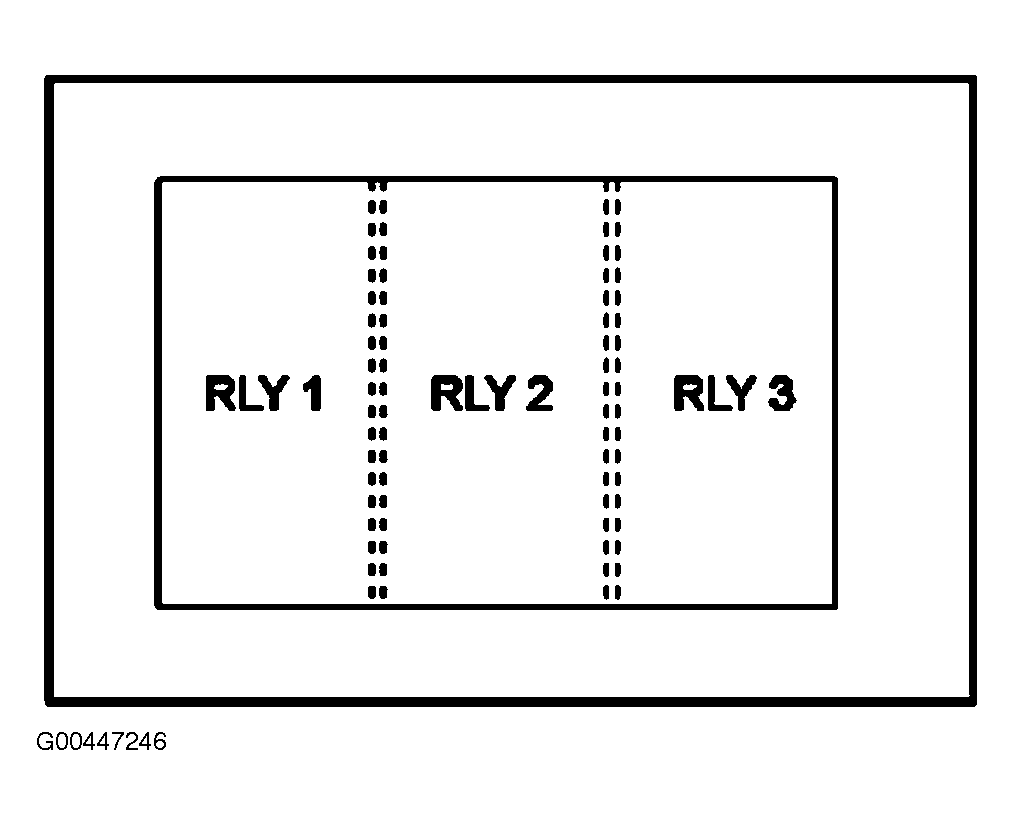

Fig 64: ICM Relay Box

G00447246

Courtesy of KIA MOTORS AMERICA, INC.
