Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At right rear of engine compartment. See Figure. |

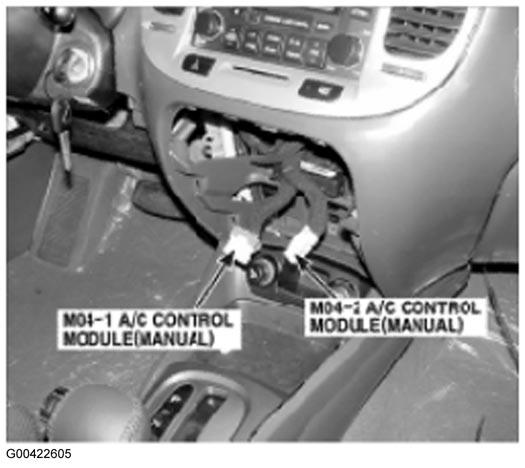

| A/C Control Module | Behind A/C control panel. See Figure. |

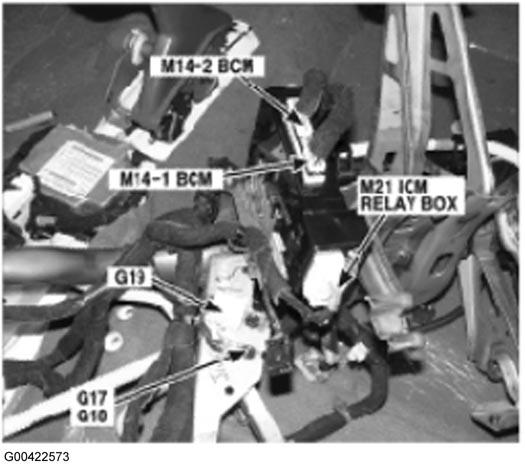

| BCM | Under right side of dash. See Figure. |
| DRL Control Module | On instrument panel junction box. See Figure. |

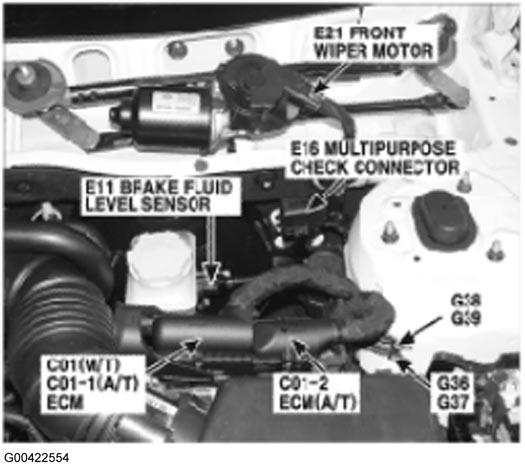

| ECM | Left rear of engine compartment. See Figure. |
| Immobilizer Control Module | Near steering column. See Figure. |

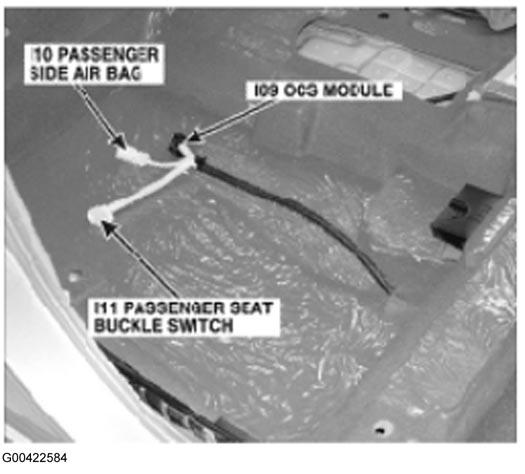

| OCS Module (Connector) | Under front passenger's seat. See Figure. |

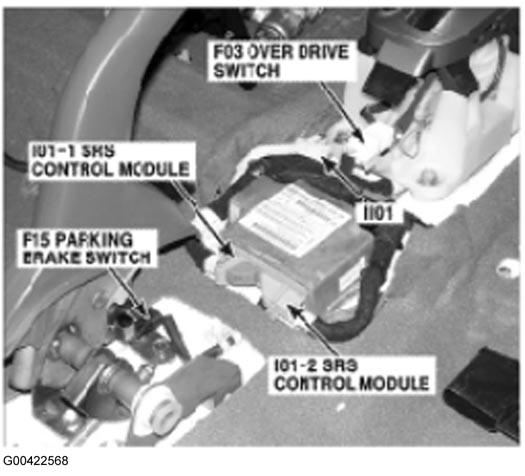

| SRS Control Module | Under center console. See Figure. |
| Stop Lamp Failure Module (Sedan) | Right rear of trunk. See Figure. |
| Stop Lamp Failure Module (5 Door) | At right "C" pillar. See Figure. |

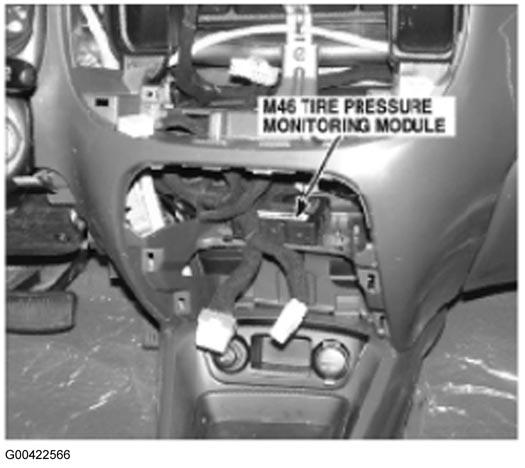

| Tire Pressure Monitoring Module | Behind center of dash. See Figure. |
