Starting System: Starter: Component

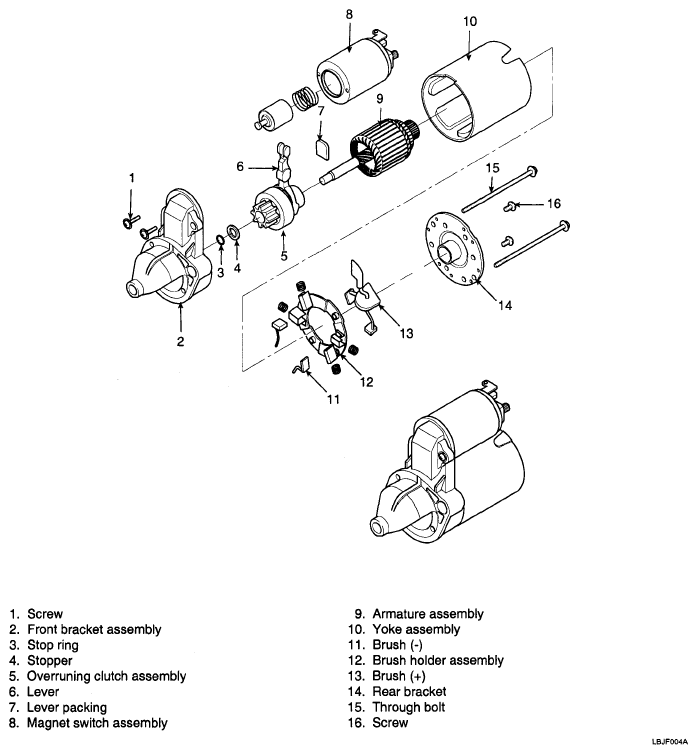

Fig 1: Identifying Starter Components

G04861962

Courtesy of KIA MOTORS AMERICA, INC.
