Spark Test: Notes

Remove the ignition coil.

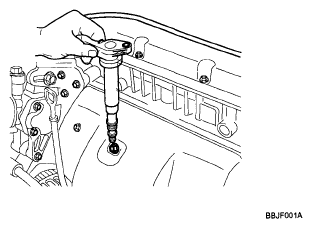

Fig 1: Identifying Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

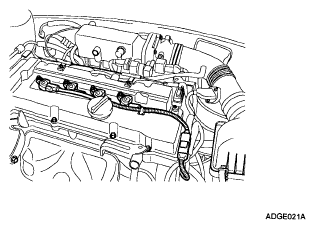

Fig 2: Checking Spark
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay (A) from the fuse box.
Crank the engine for no more than 5-10 seconds.

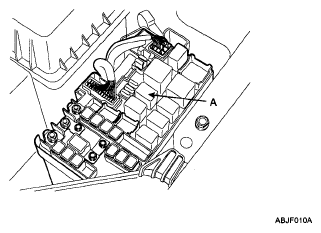

Fig 3: Identifying Fuel Pump Relay
Courtesy of KIA MOTORS AMERICA, INC.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.

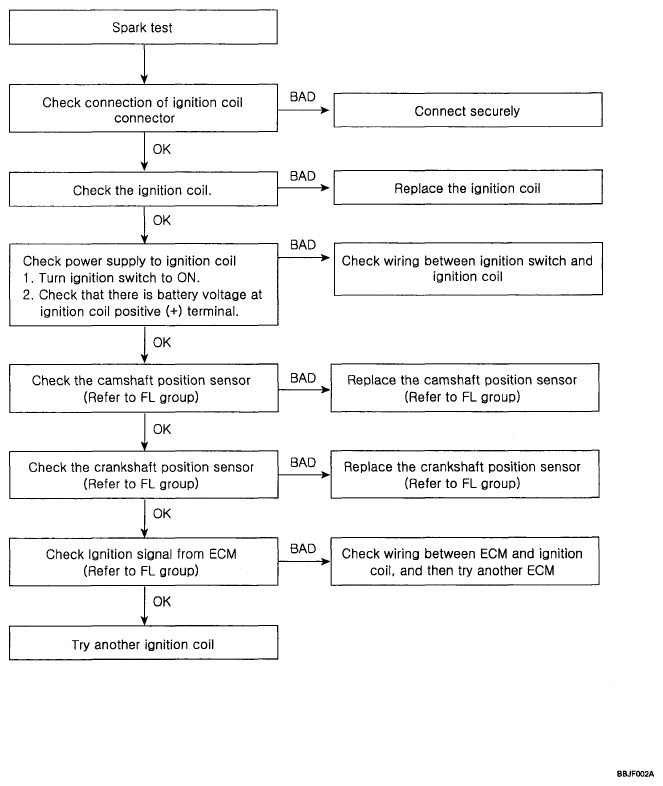

Fig 4: Inspection Flow Chart Of Spark Plug
Courtesy of KIA MOTORS AMERICA, INC.
