General (Restraints): General: Components: Notes

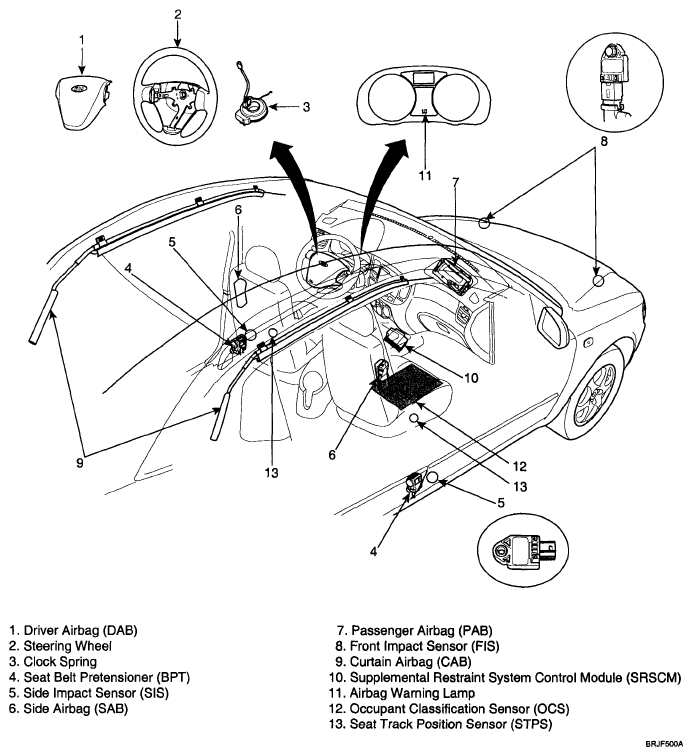

Fig 1: Identifying SRS Components

G04863018

Courtesy of KIA MOTORS AMERICA, INC.
