Wiring Precautions

SRS wiring can be identified by special yellow outer covering (except the SRS circuits under the front seats).

Observe the instructions described in this article.

• Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage in SRS wiring, replace the harness.

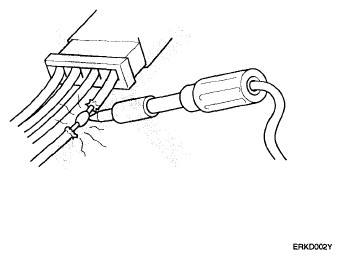

  Fig 1: Precautions For Repairing SRS Wiring

  Courtesy of KIA MOTORS AMERICA, INC.
• Be sure to install the harness wires so that they are not pinched, or interfere with other parts.

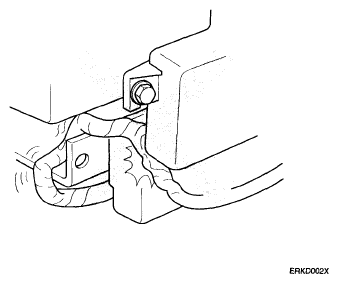

  Fig 2: Precautions For Installing Harness Wires

  Courtesy of KIA MOTORS AMERICA, INC.
• Make sure all SRS ground locations are clean, and grounds are securely fastened for optimum metal-to-metal contact. Poor grounding can cause intermittent problems that are difficult to diagnose.
