PCM




PCM (POWERTRAIN CONTROL MODULE)

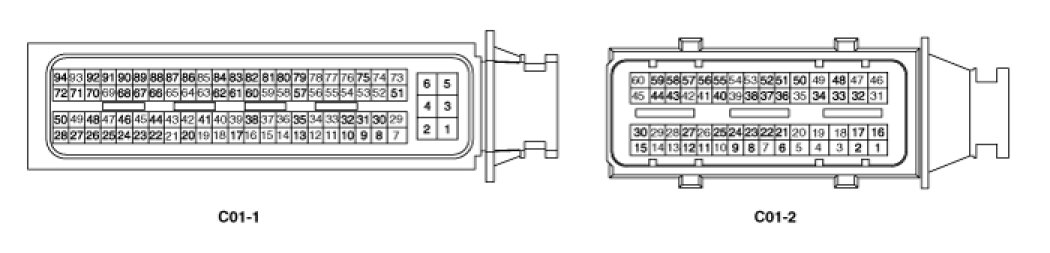

1. PCM HARNESS CONNECTOR (A/T)

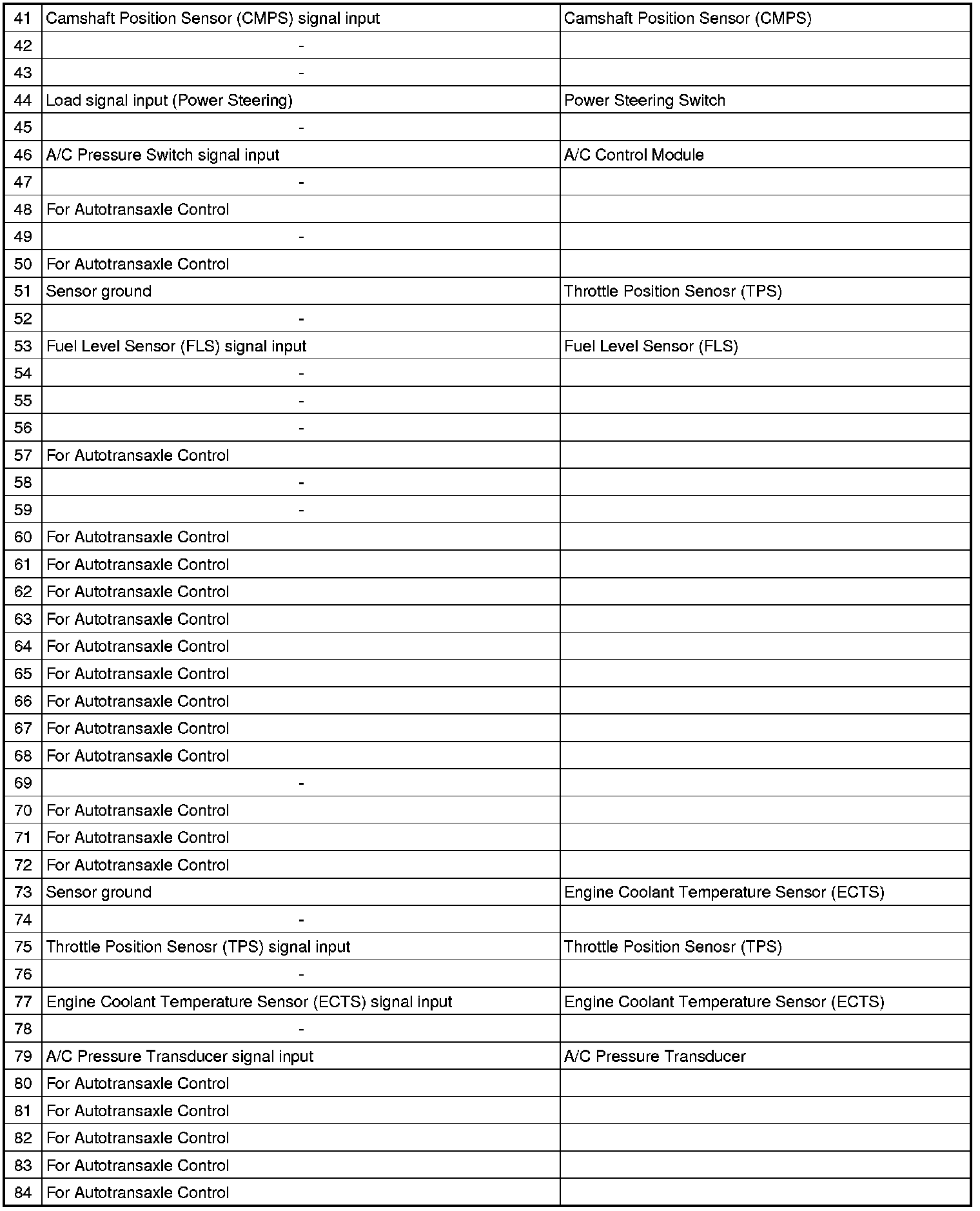

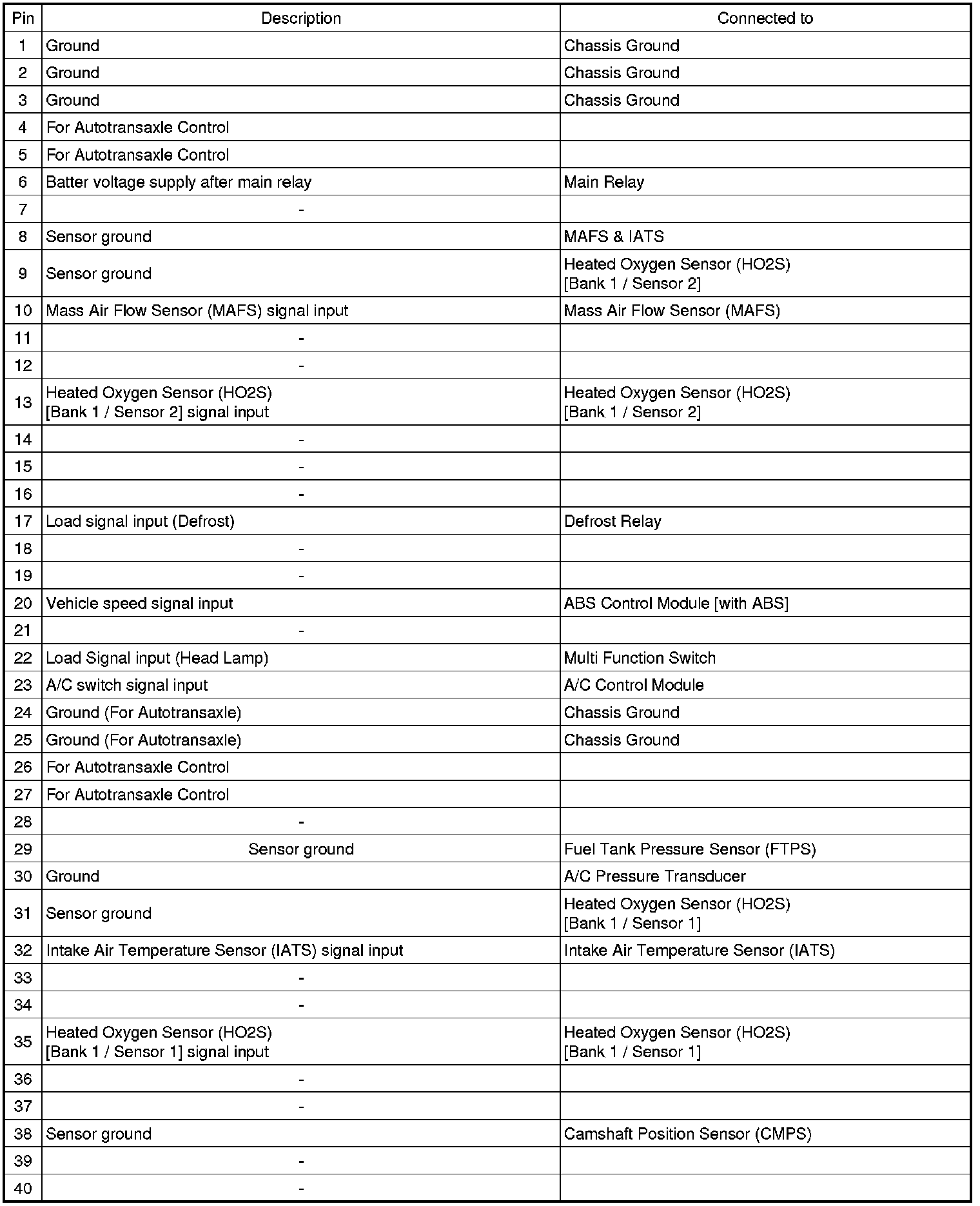

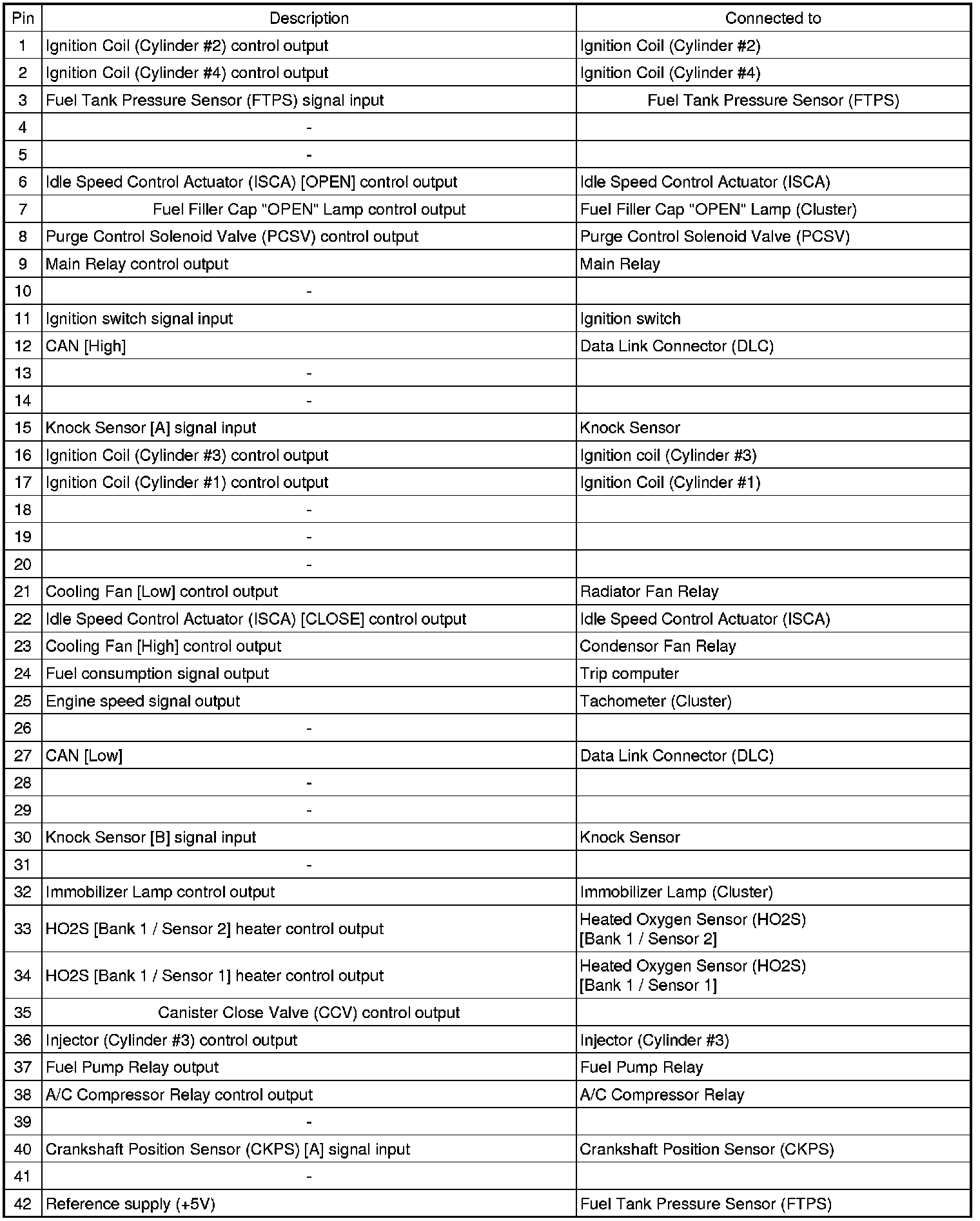

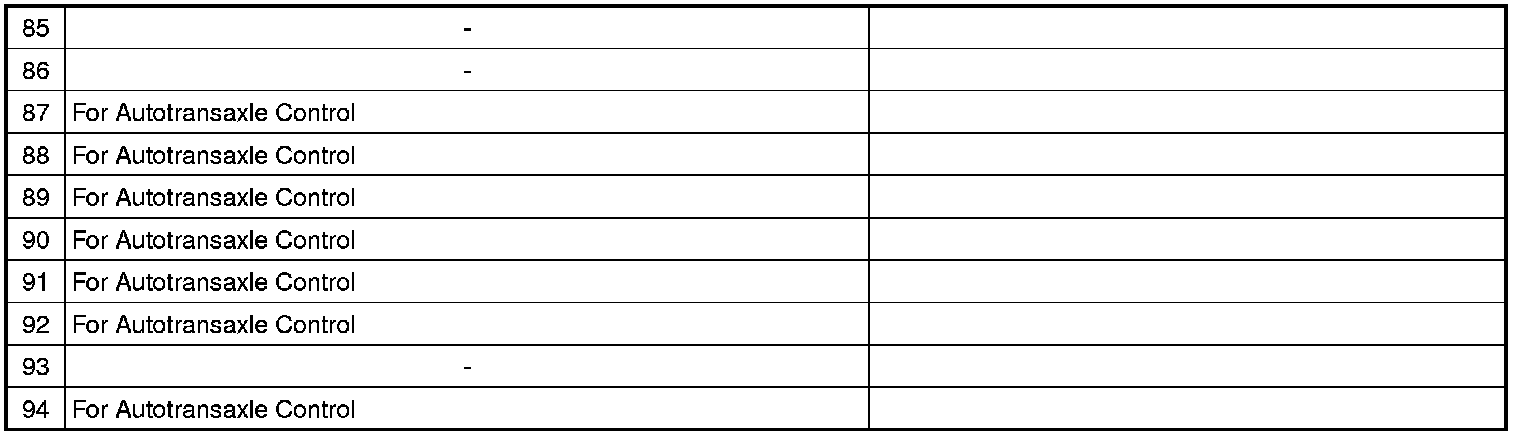

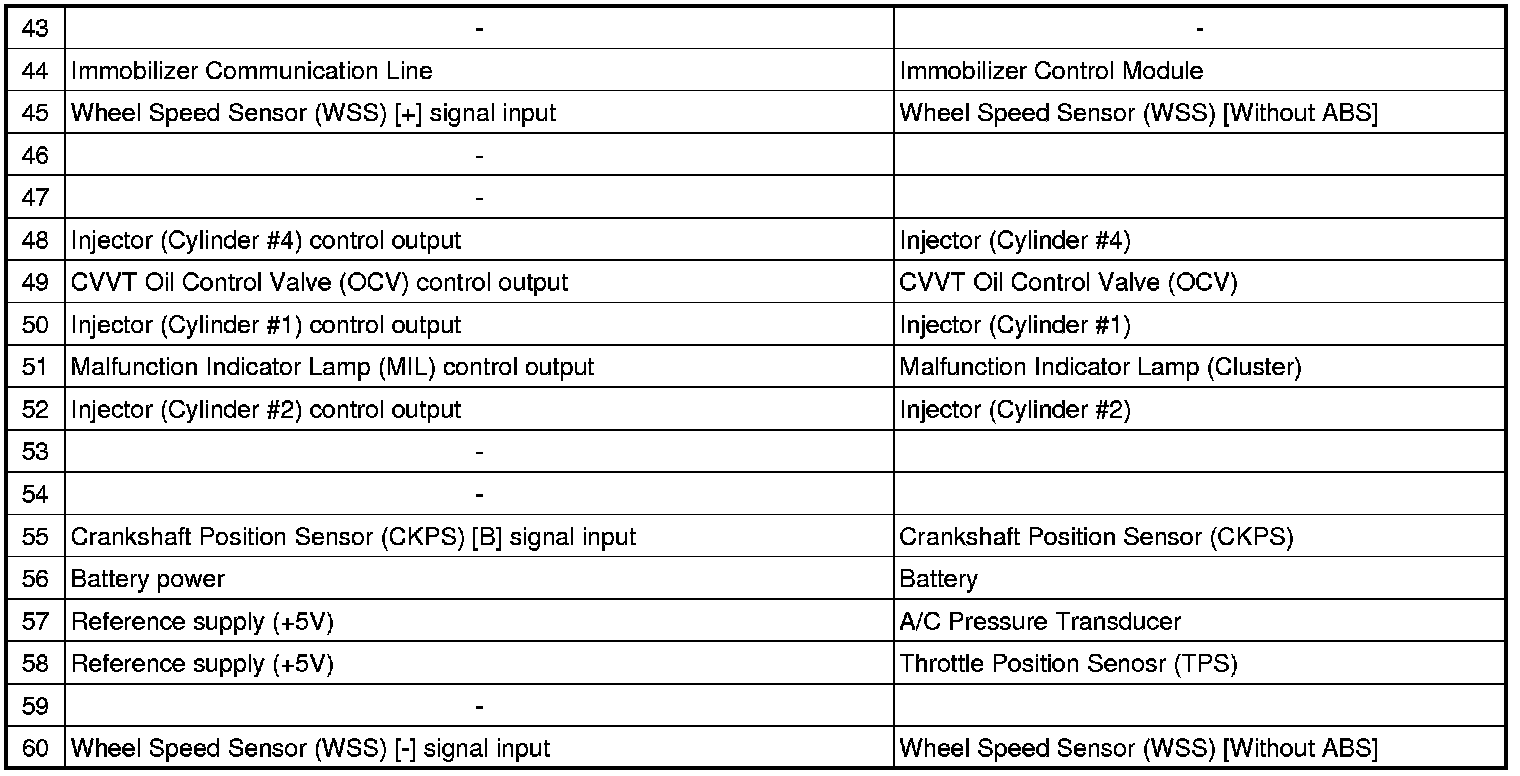

2. PCM TERMINAL FUNCTION (A/T)
CONNECTOR [C01-1]













CONNECTOR [C01-2]

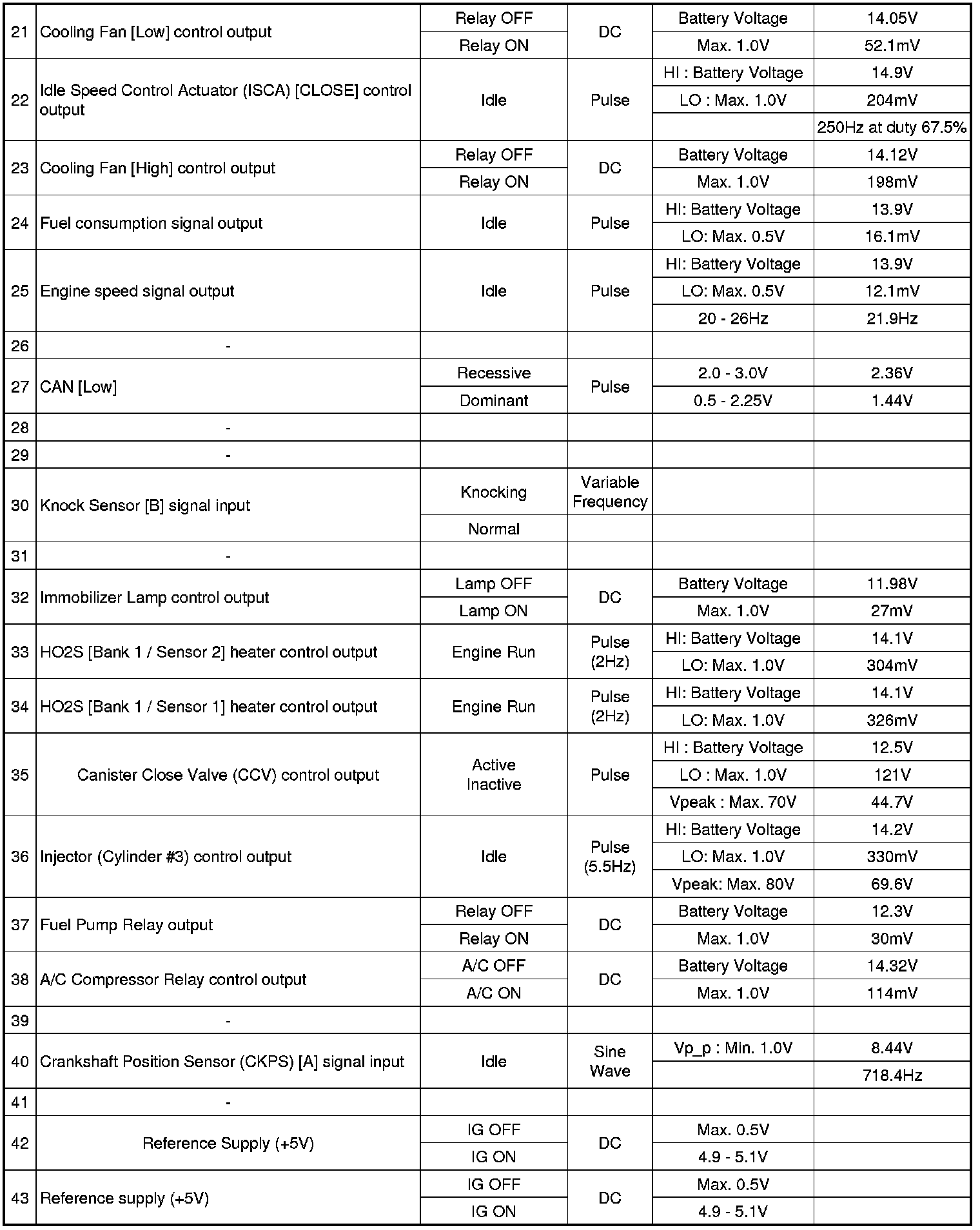

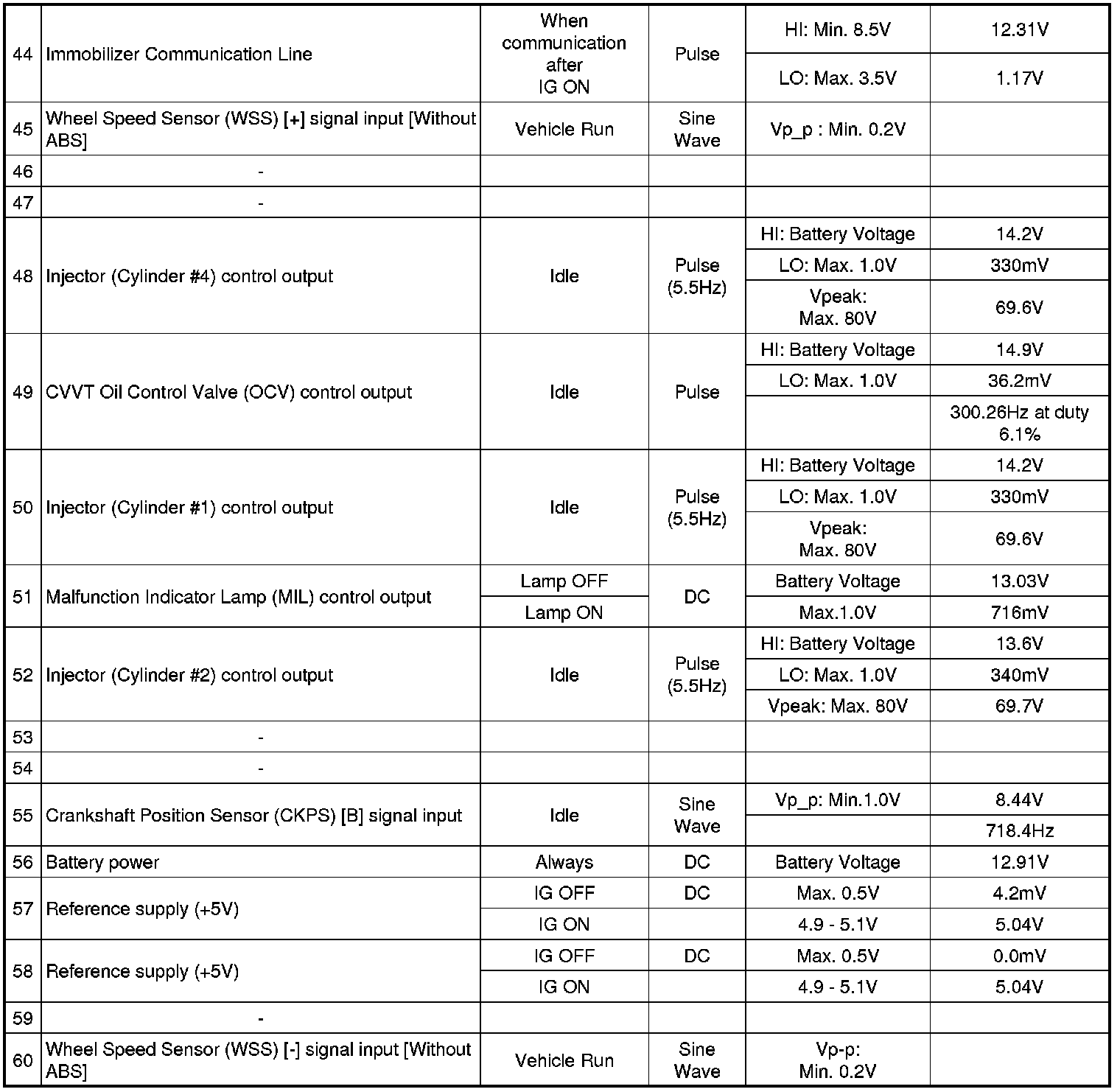

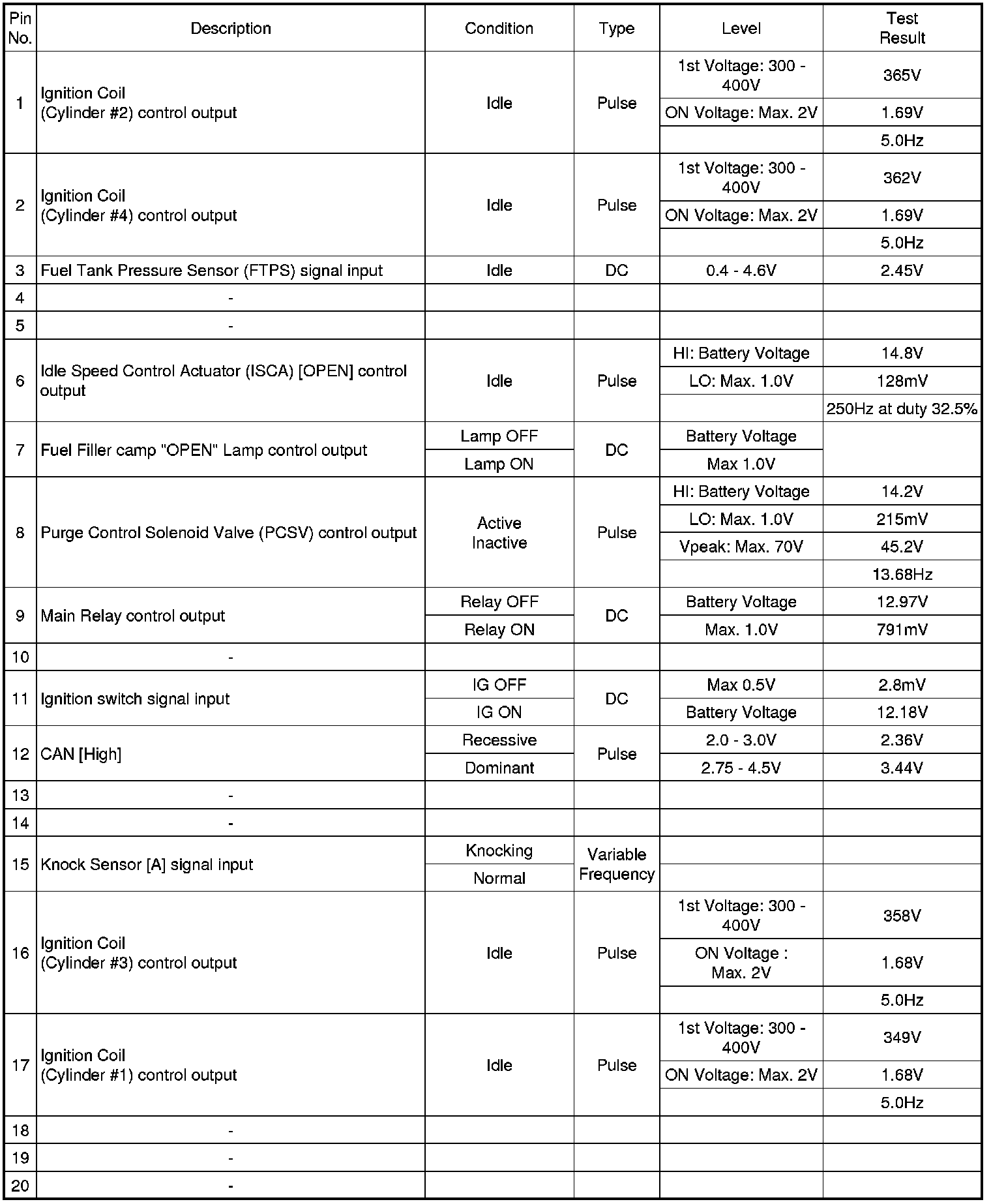

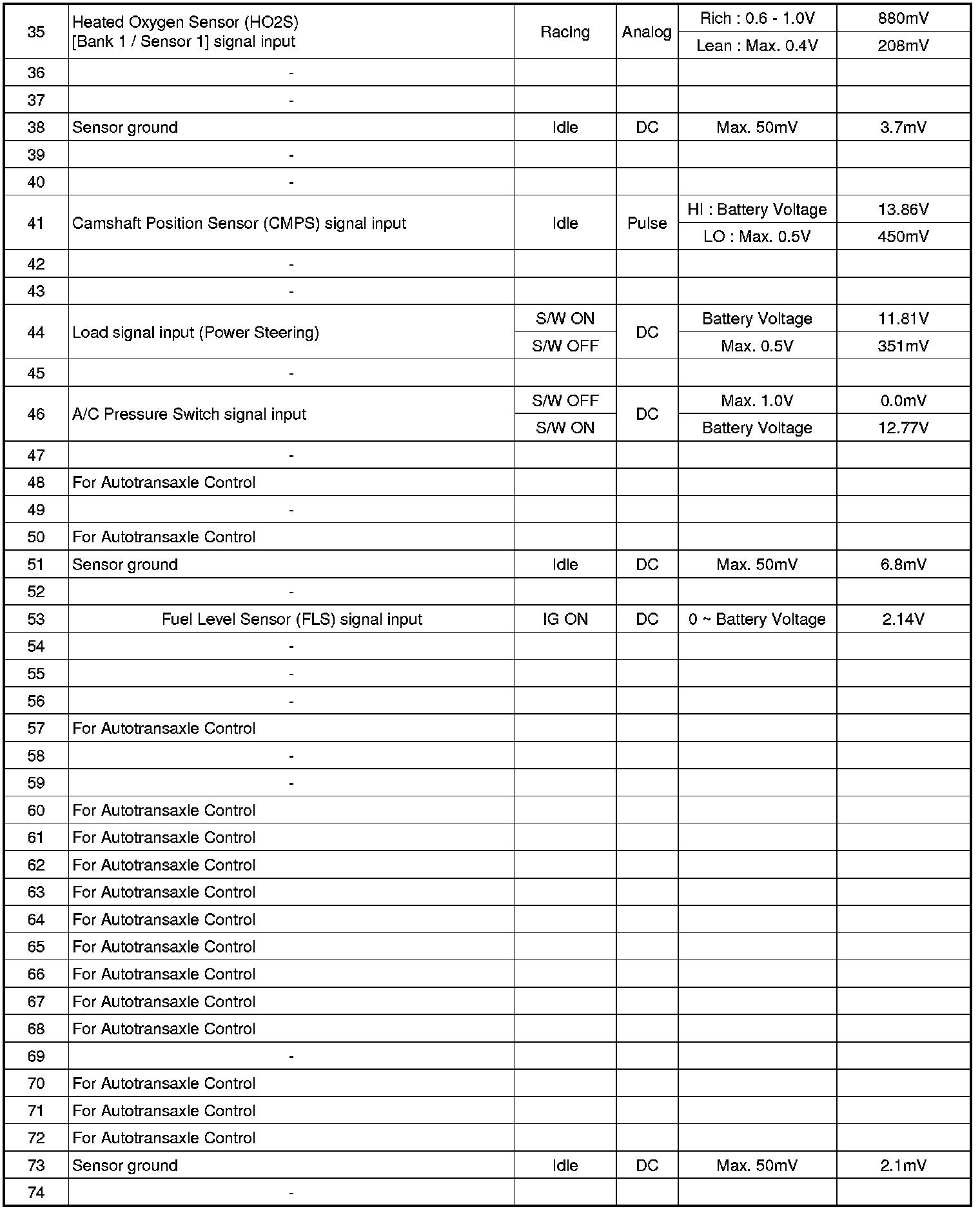

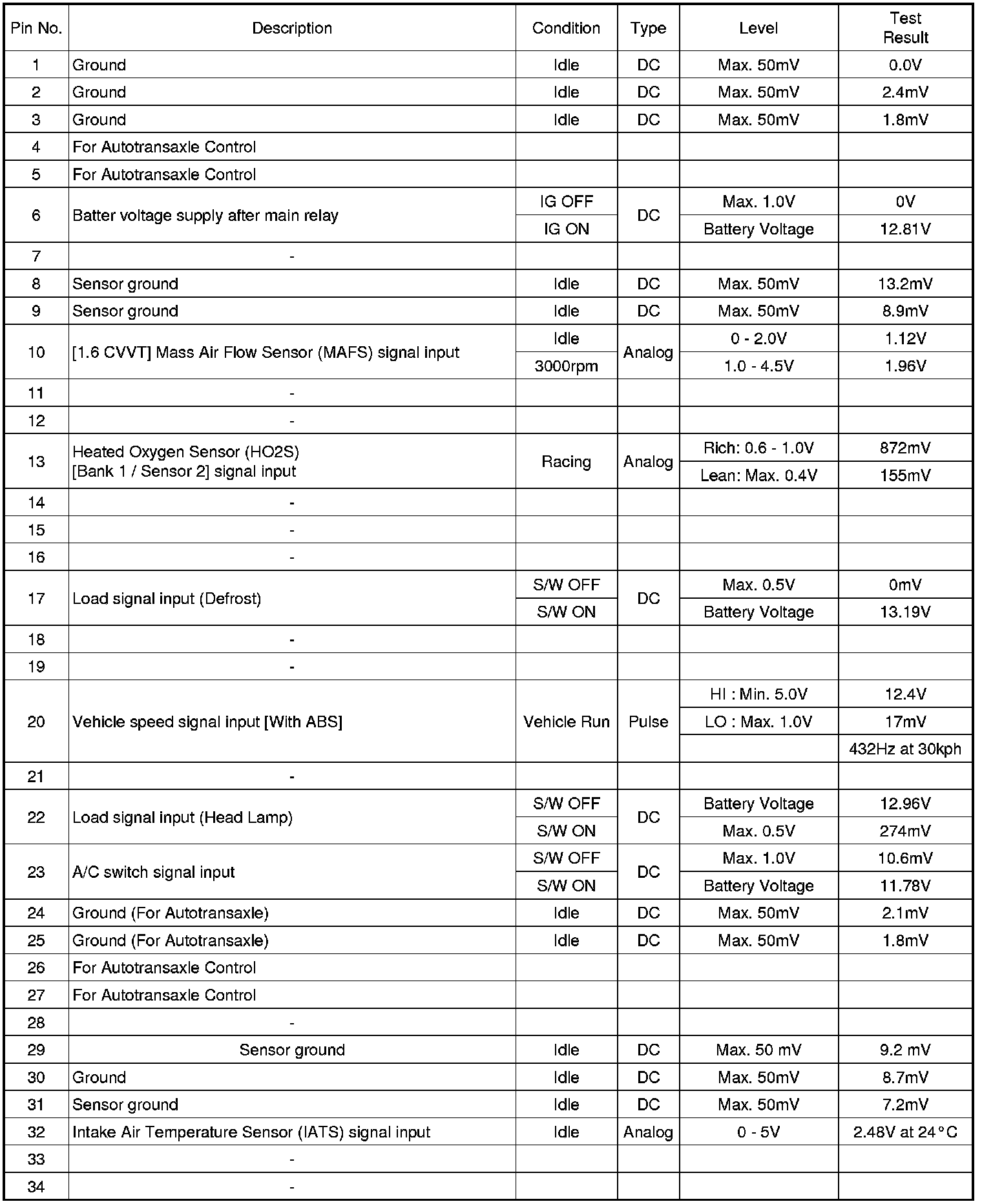

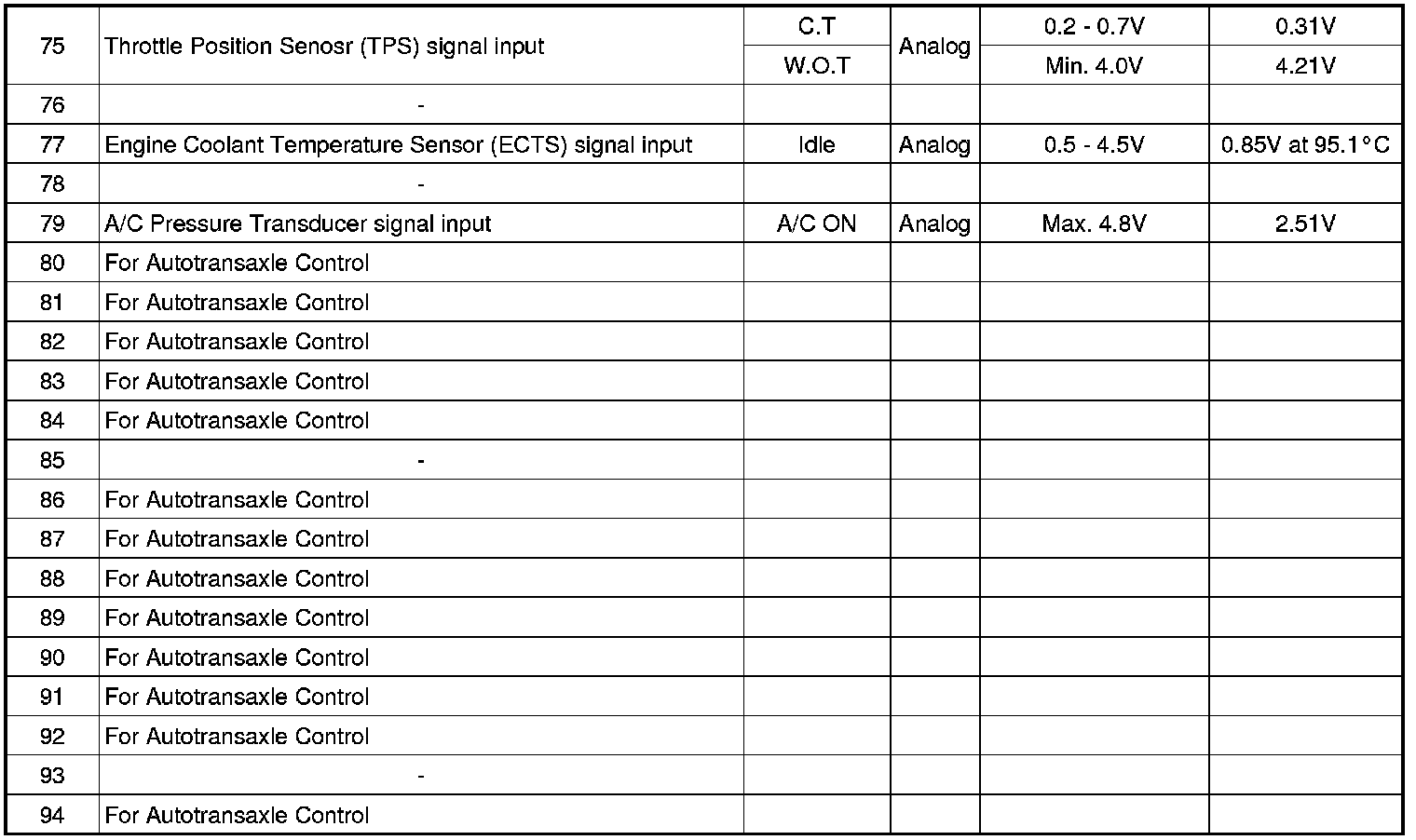

3. PCM TERMINAL IN/OUT SIGNAL (A/T)
CONNECTOR [C01-1]













CONNECTOR [C01-2]
