Crash Pad

REPLACEMENT

HEATER CONTROL UNIT REPLACEMENT

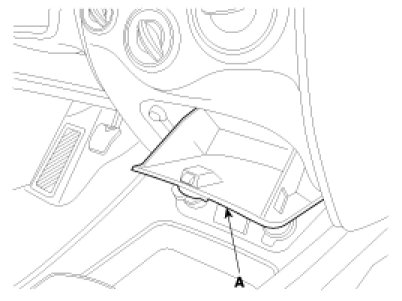

1. Remove the center lower tray(A).

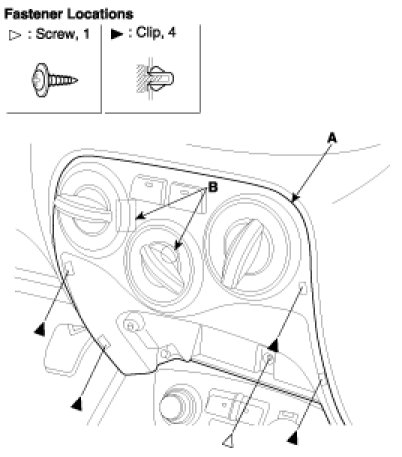

2. After loosen the center facia lower panel mounting screw, remove the center facia lower panel(A). Disconnect the heater control unit connector(B).

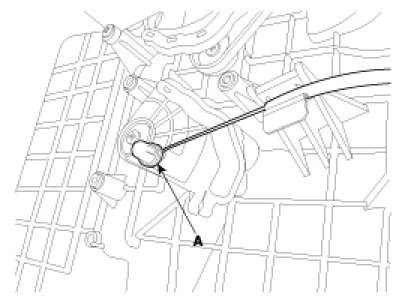

3. Disconnect the heater control cable(A).

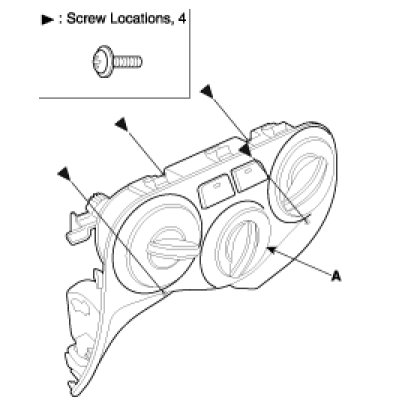

4. Loosen the heater control unit mounting screw. Remove the heater control unit(A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
