Body Control Module: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

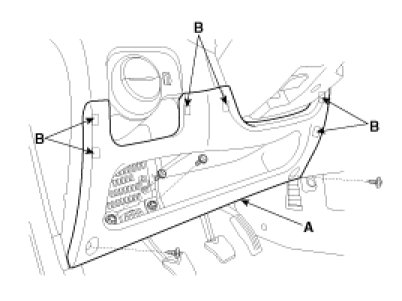

2. Remove the crash pad lower panel (A). Take care of fixing clips(B).

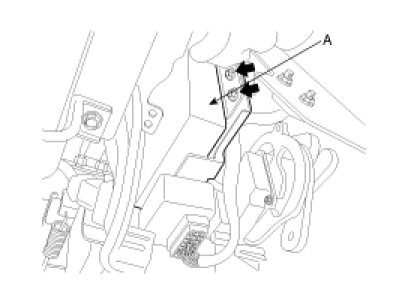

3. Remove the body control module (A) after loosening 2 nuts.




4. Installation is the reverse of removal.
