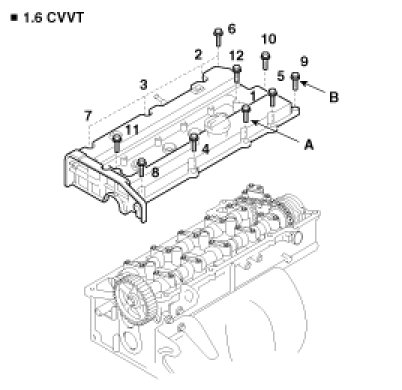

Valve Cover
Valve Cover
Pre-tighten all bolts by 3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb-ft) and then tighten by the specified torque.
Tightening torque 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
Valve Cover
Pre-tighten all bolts by 3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb-ft) and then tighten by the specified torque.
Tightening torque 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
