Cylinder Head Assembly

NOTE: "Head bolts are reusable".

Cylinder Head

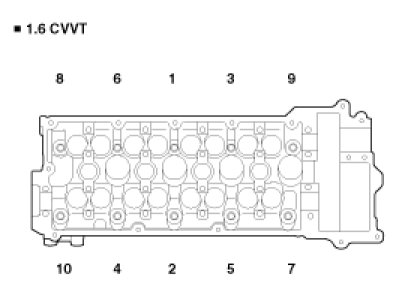

Using 8 mm and 10 mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90 ° -> Release all bolts -> 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 90 °
