Main Bearing Cap

Main Bearing Cap

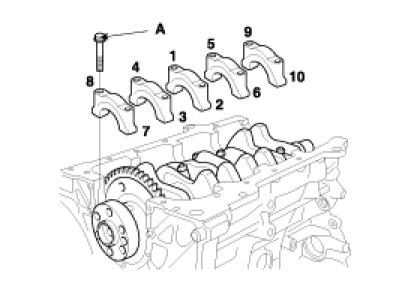

Install and uniformly tighten the 10 bearing cap bolts(A),in several passes, in the sequence shown.

Tightening torque 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
