Timing Belt Cover

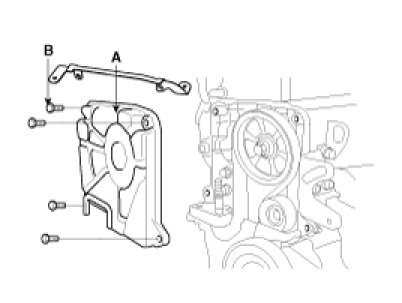

Timing Belt Lower Cover

Tightening torque 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

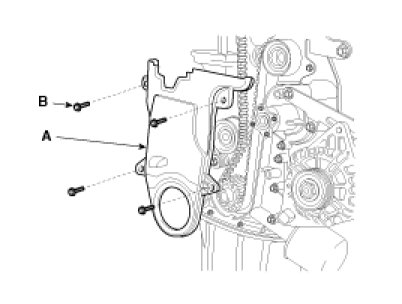

Timing Belt Upper Cover

Tightening torque 7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)
