Gasoline Engine Control System: Components

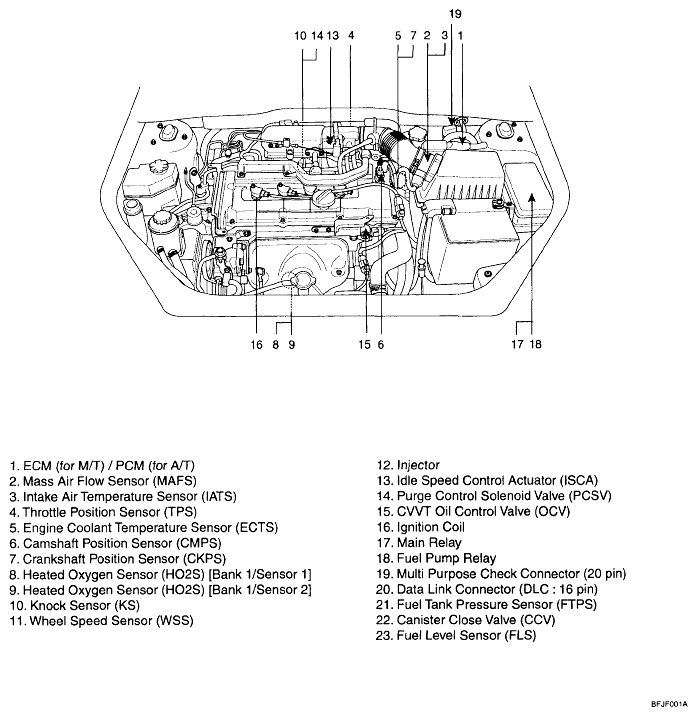

Fig 1: Identifying Comprehensive Components
Courtesy of KIA MOTORS AMERICA, INC.

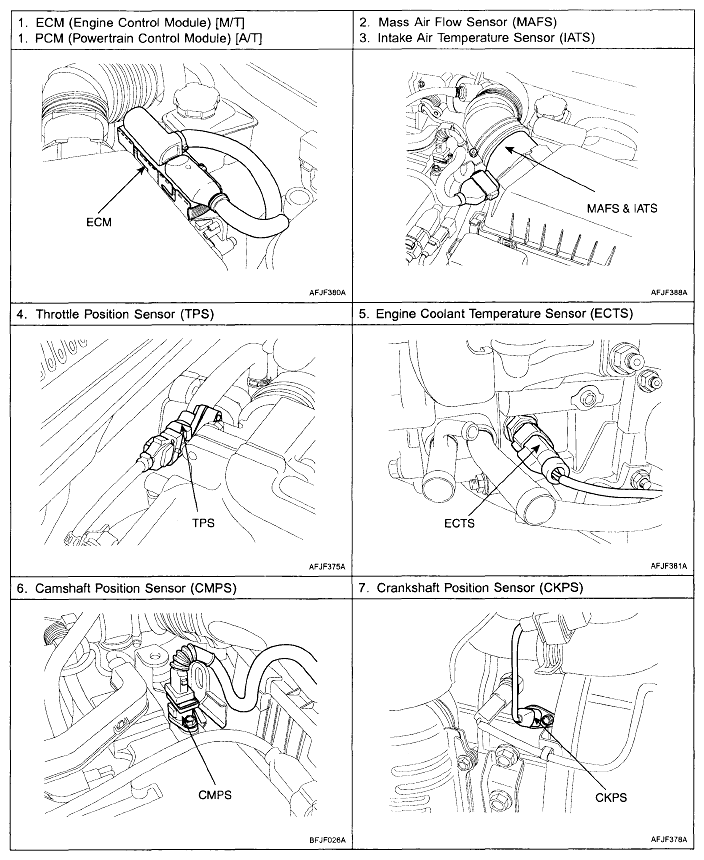

Fig 2: Identifying Sensor Location (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

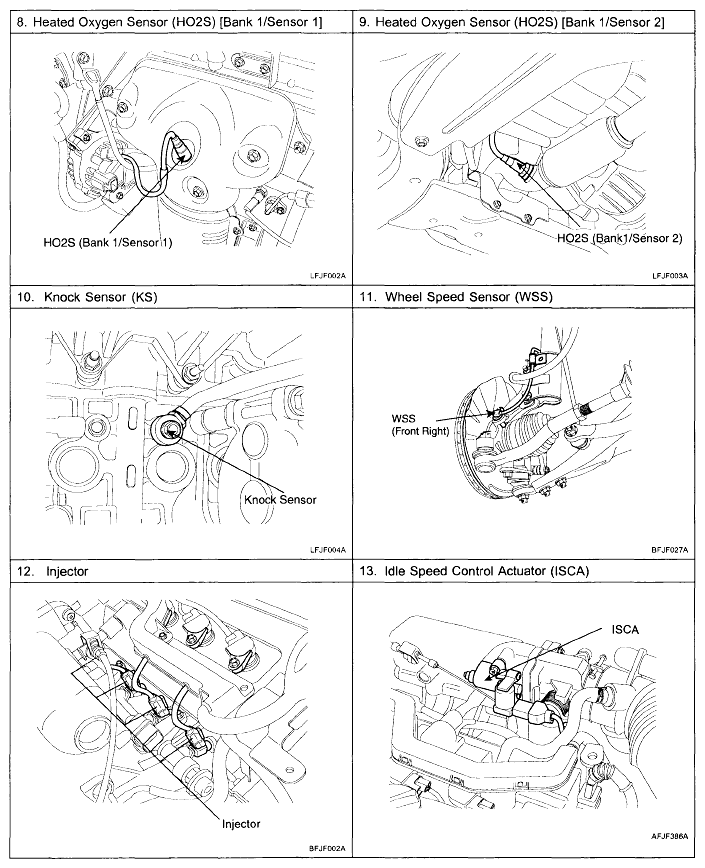

Fig 3: Identifying Sensor Location (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

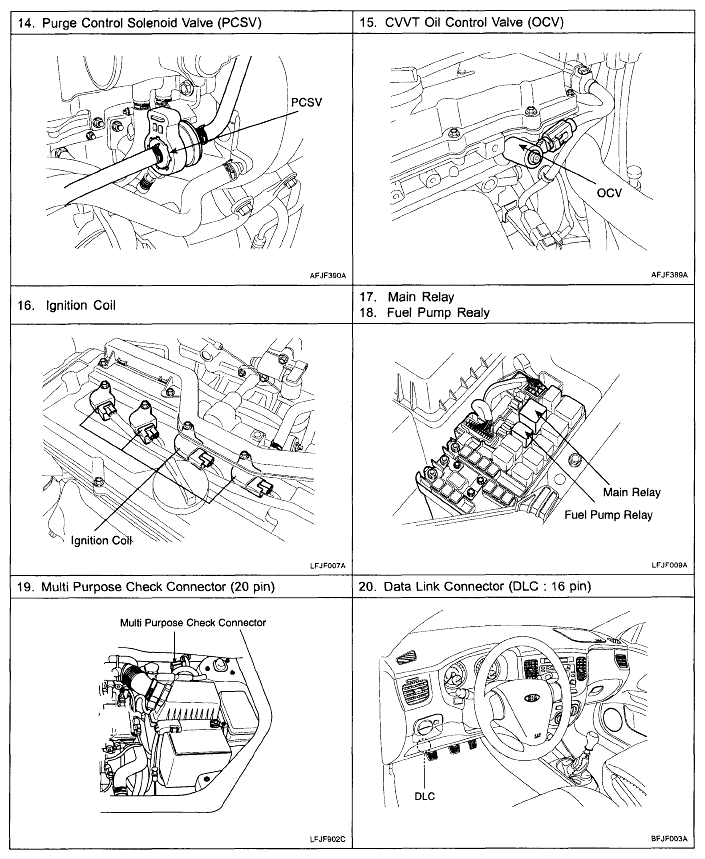

Fig 4: Identifying Sensor Location (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

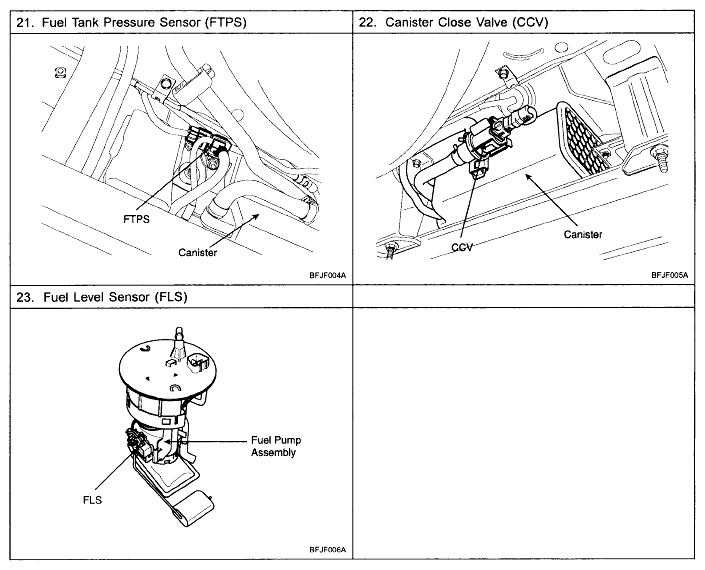

Fig 5: Identifying Sensor Location (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
