Seat Track Position Sensor: Removal

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly. (Refer to SEATS )
  3. Loosen the two STPS screws, then remove the STPS after disconnecting the STPS connector.

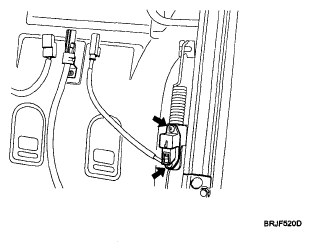

    Fig 1: Identifying STPS Connector
    G04863053Courtesy of KIA MOTORS AMERICA, INC.
