SRS Control Module: Installation
- Disconnect the negative (-) cable from battery and wait for at least three minutes.
- Remove ignition key from the vehicle.

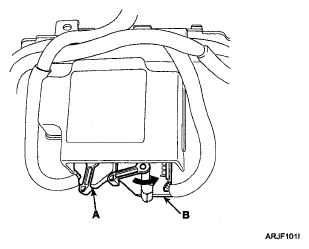

- Install the SRSCM with the SRSCM mounting bolts.
Tightening Torque (SRSCM Mounting Bolt)
: 1.0~1.4 kgf.m (9.5~13.5 Nm, 7.0~10.0 lb.ft)
- Connect the SRSCM harness connector.
- Install the floor console. (Refer to INTERIOR )
- Connect the DAB, PAB, SAB, CAB and BPT connectors.
- Reconnect the battery negative cable.
- After installing the SRSCM, confirm proper system operation:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
