Circuit Diagram

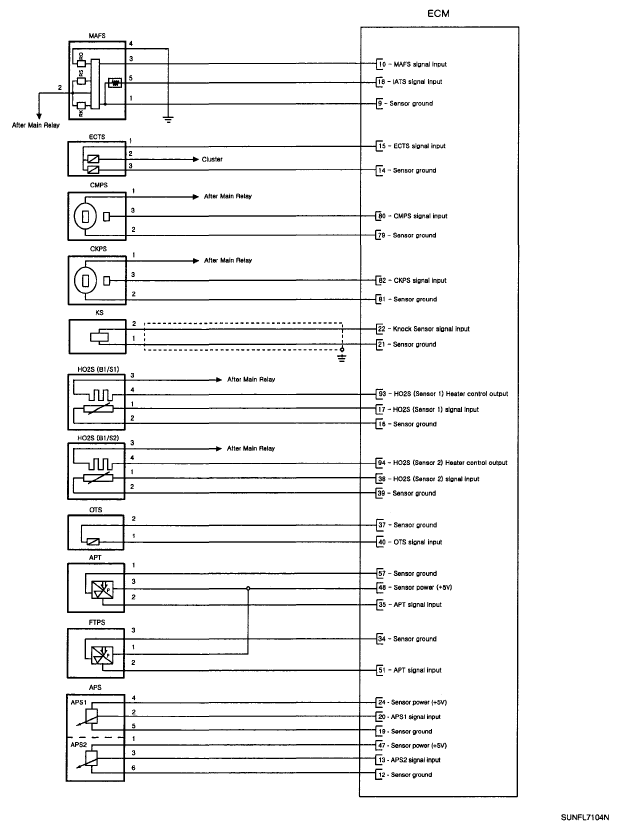

Fig 1: Gasoline Engine Control System Circuit Diagram (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

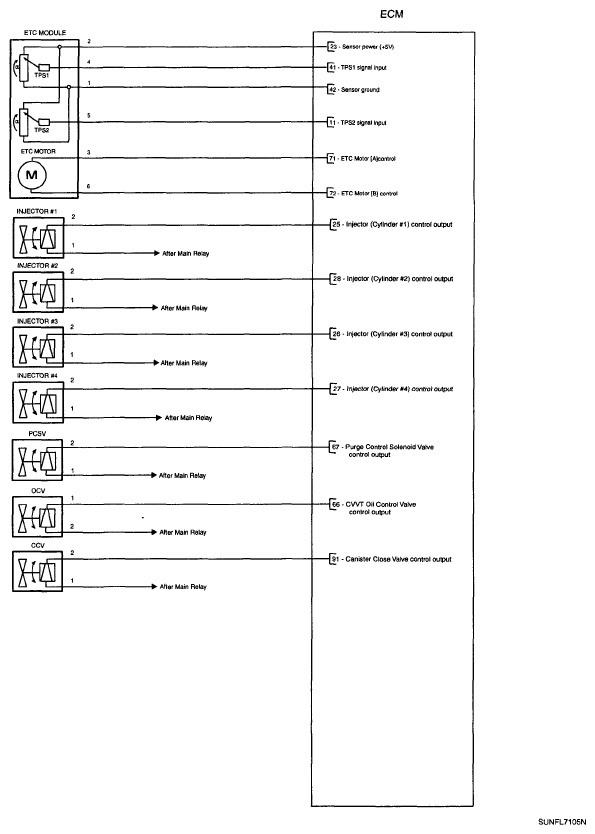

Fig 2: Gasoline Engine Control System Circuit Diagram (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

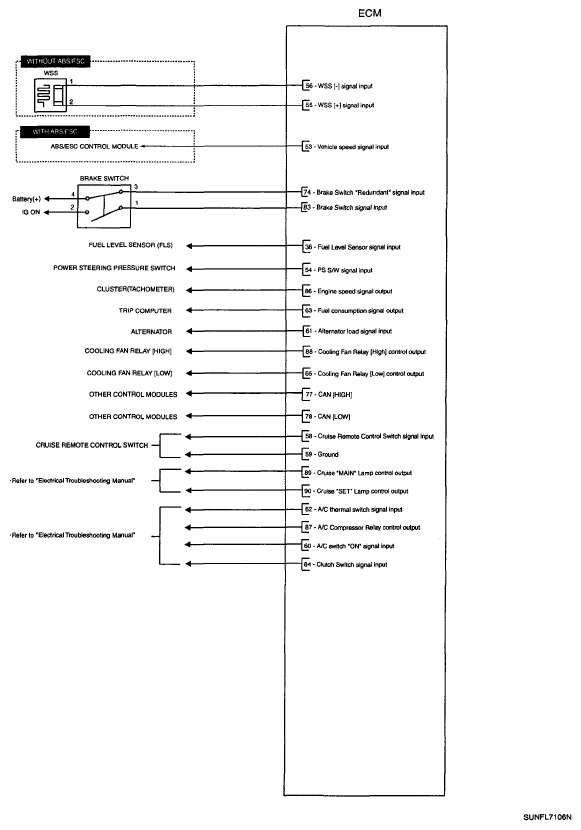

Fig 3: Gasoline Engine Control System Circuit Diagram (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

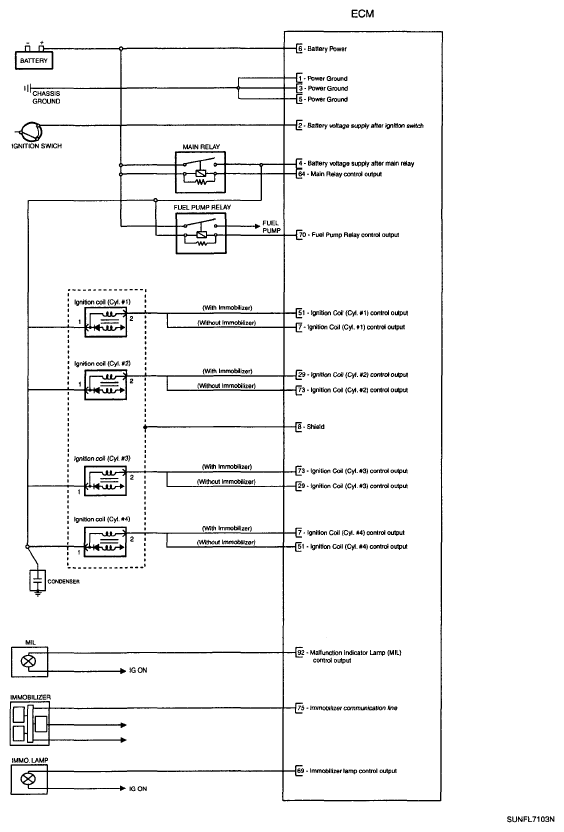

Fig 4: Gasoline Engine Control System Circuit Diagram (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
