Engine Control Module (ECM): Replacement

  1. Turn ignition switch off.
  2. Disconnect the battery (-) cable from the battery.
  3. Remove the ECM cover and disconnect the ECM connector(s) (A).

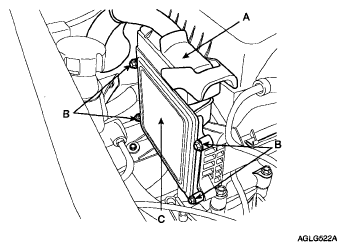

    Fig 1: Identifying ECM Cover And ECM Connector
    G05185866Courtesy of KIA MOTORS AMERICA, INC.
  4. Unscrew the ECM mounting bolts (B) and remove the ECM from the air cleaner assembly.
  5. Install a new ECM.

    ECM mounting bolts: 9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lbf.ft)
